Timmy 1 junior care cot 140/70 natural

Timmy 1 junior care cot 140/70 natural

Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated



The product series contains 1 product.

Product 1 of 1

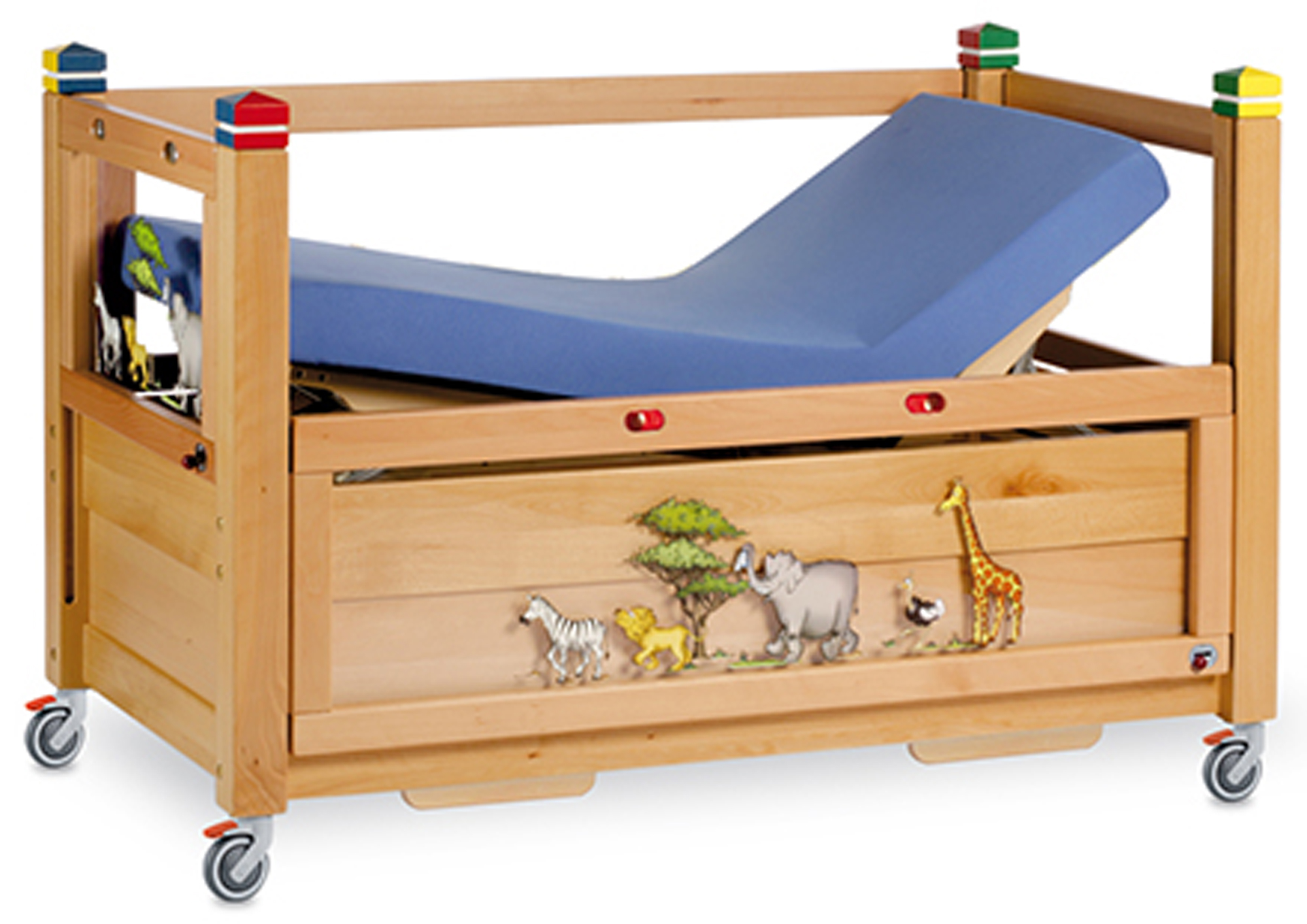

Timmy 1 junior care cot 140/70 cm natural

With sleeping platform divided into 4 sections, electronic profiling plus electronic variable height (KR5)

HMI-no.
36028
Article-no.
10010050

Registration date
29-01-2004
Last updated
29-11-2019

Specifications
Intended for children Yes  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Outside measure length 155 cm
Outside measure width 85 cm
Mattress size, length 140 cm
Mattress size, width 70 cm
Load, max 170 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 135 kg
Weight of heaviest main part 575 kg info
Weight without parts that are detachable without the use of tools
Ingress protection class for water 4 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Built-in bed extension No
Intended for use in hospitals No
Intended for use in a domestic area Yes
Mattress support platform, height above floor, min 80 cm info
Measured without mattress
Mattress support platform, height above floor, max 120 cm info
Measured without mattress
Internal length 140 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 13.5 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Central braking system No
Wheel diameter 10 cm
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform No  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides Yes  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section Yes
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No

Test information
EN 60601-2-38:1996: Medical electrical equipment - Part 2-38: Particular requirements for the safety of electrically operated hospital beds.
Test lab: Berlin CERT. Test date: 05-01-2005
