Timmy 2 care cot colour finish
Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated
Documents
BrochureThe product series contains 1 product.
Product 1 of 1

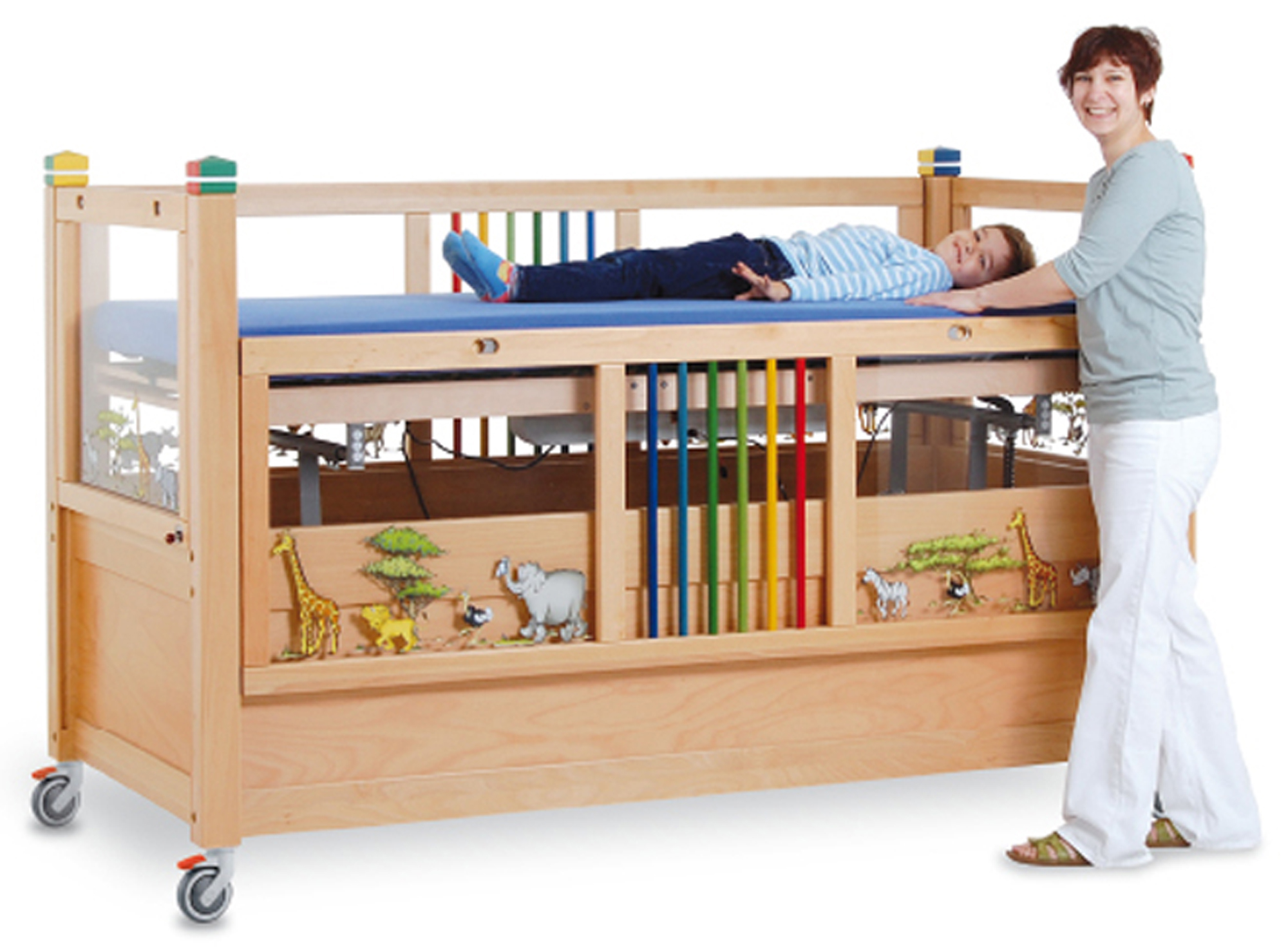

Timmy 2 care cot 170/90 cm colour finish
HMI-no.
33212
Article-no.
13020050
Registration date
11-11-2002
Last updated
21-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
Yes
Removable self-lifting rail
Yes
Removable foot board
Yes
Removable head board
Yes
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
Yes
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
185
cm
Measured without any bed extension
Outside measure width
105
cm
Measured including non-detachable accessories
Mattress size, length
170
cm
Mattress size, width
90
cm
Load, max
170
kg
Maximum external load on the product that is permitted in normal use
User weight, max
135
kg
Weight of heaviest main part
615
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
62
cm
Measured without mattress
Mattress support platform, height above floor, max
102
cm
Measured without mattress
Under bed clearance
13.5
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
10
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
With sleeping platform divided into 4 sections, electronic profiling plus electronic variable height (KR5)
