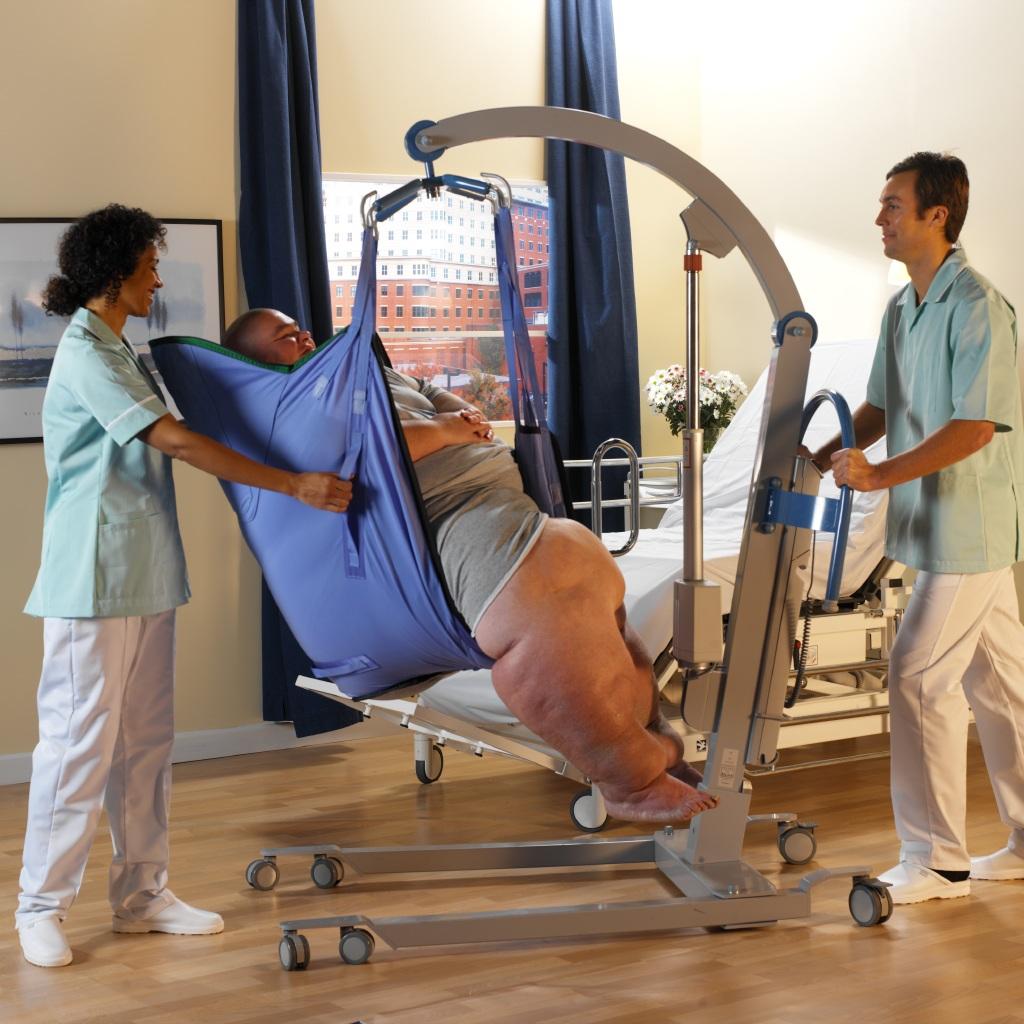

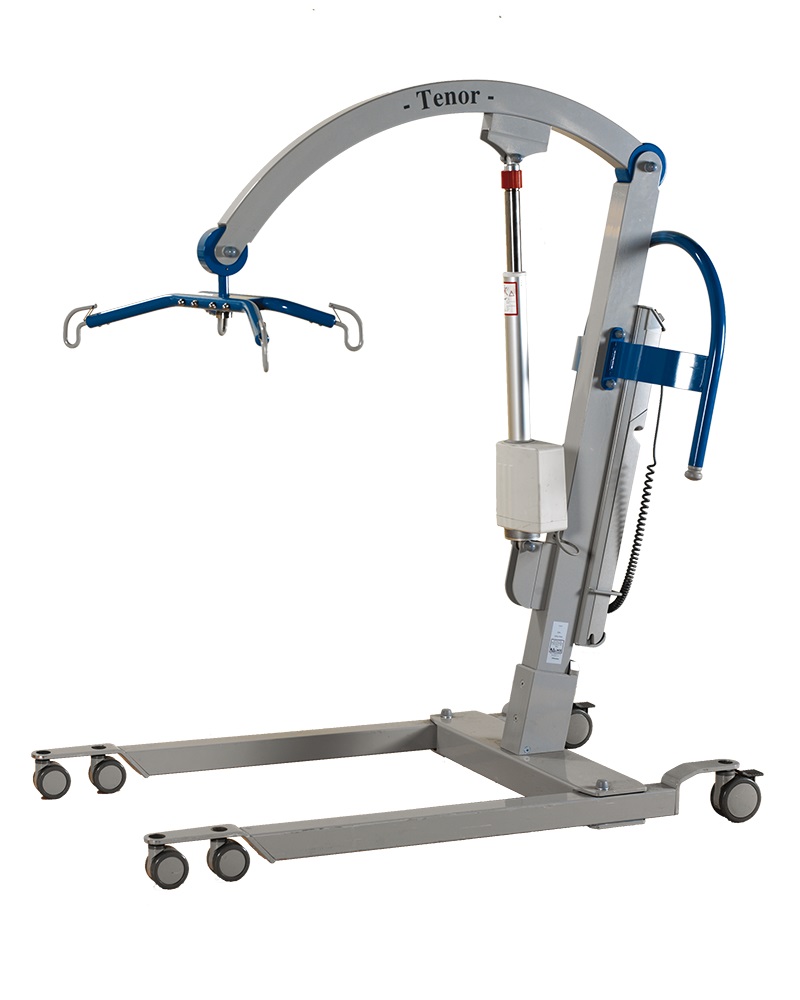

Arjo, Tenor Bariatric lift
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
The product series contains 2 products.
Specifications summarized
Specifications for the 2 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 2 | ||
|---|---|---|
| Specification/HMI-no. | 38821 | 113343 |
| Width adjustment of base | Ja, elektrisk | Ja, elektrisk |
| Width adjustable movement | V-formet | V-formet |
Lifting movement  The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies. | Bueformet | Bueformet |
| Foldable | No | No |
| Can be disassembled without tools | No | No |
| Can lift from floor level | Yes | Yes |
| Standing mobile hoist unit available | No | No |
| Integrated battery charger | No | No |
| Emergency lowering function | Yes | Yes |
| User weight, max (kg) | 320 | 320 |
| Internal width of base, max (cm) Measured with the base in the widest position | 113.5 | 113.5 |
| External width of base in the most narrow position (cm) | 74 | 74 |
| Height of base at front (cm) | 10.2 | 10.2 |
| Turning diameter (cm) Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed. | 165 | 165 |
| Weight of heaviest main part (kg) | 69.1 | 70.2 |
| Ingress protection class for water (IP) 0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529) | 4 | 4 |
| Maintenance frequency (måneder) | 12 | 12 |
