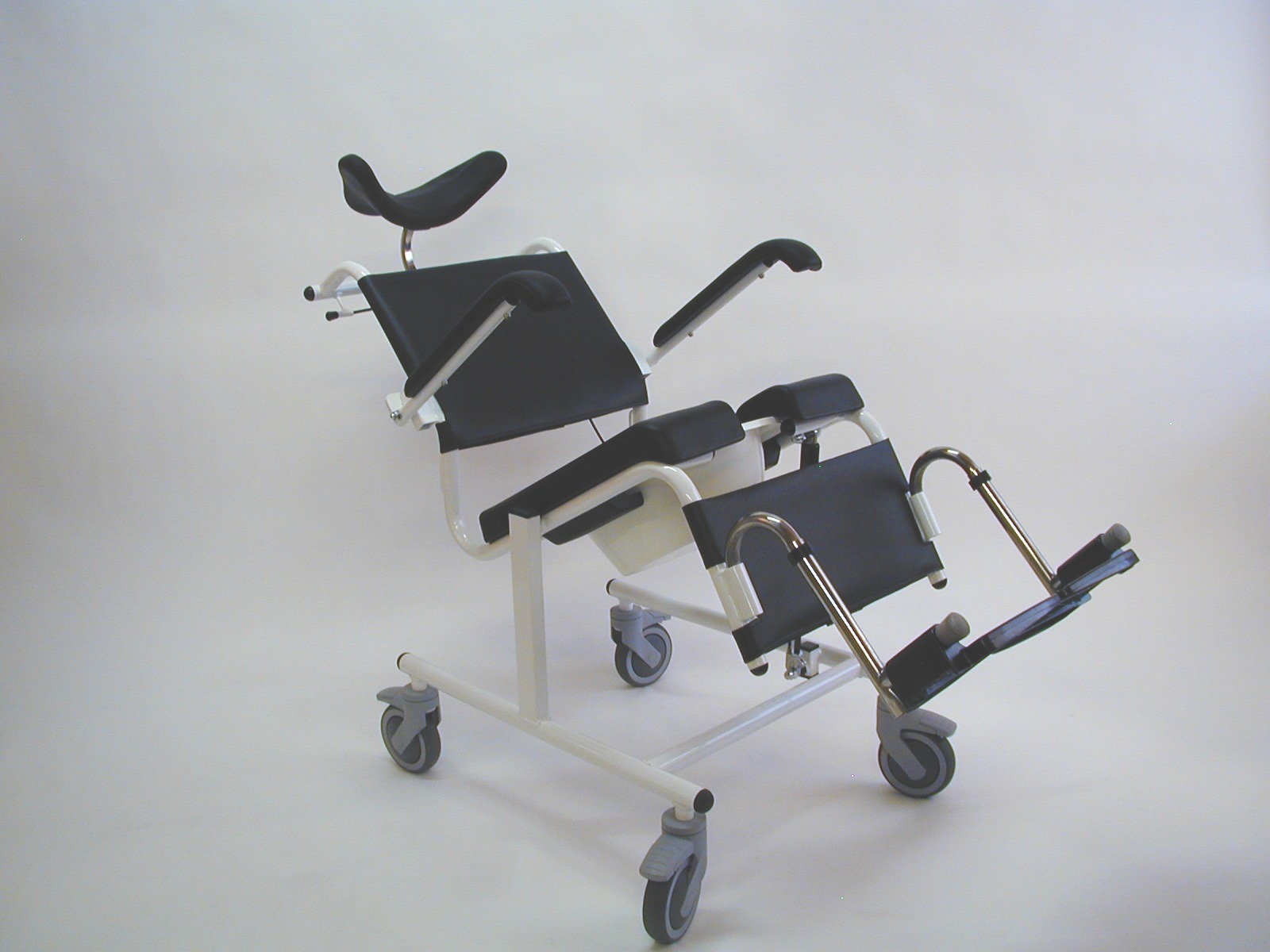

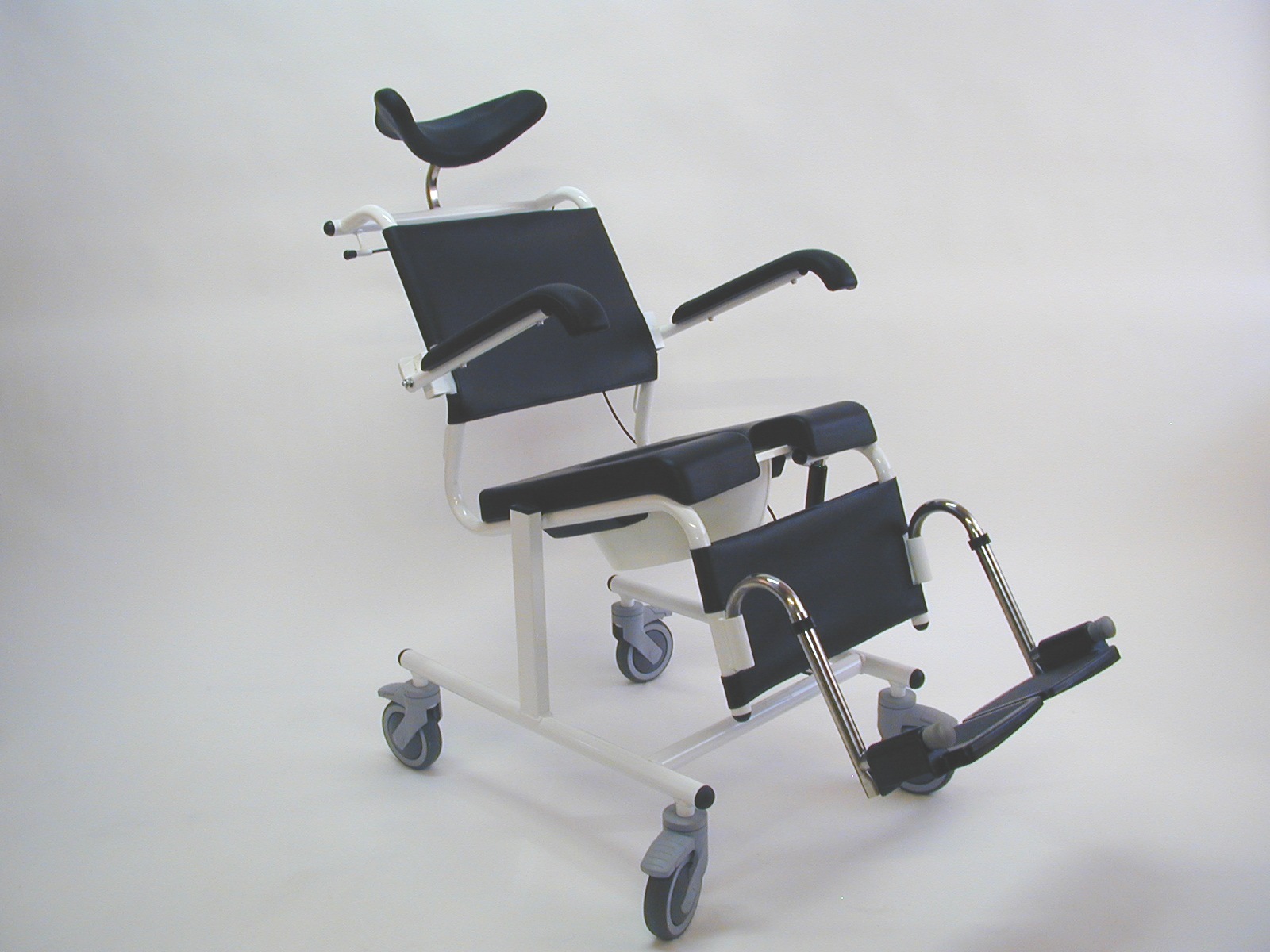

ERGOtip 4 Reclining Commode & Shower Chair



The ERGOtip series offers the largest programme of reclining commode & shower chairs w. gas springs or electric actuators. Tip-up arm rests with soft PUR cushions. Adjustable back (and leg) support. Detachable seat (w. closed or open front aperture). Bed pan slides w. pot stop when reclined. Four 125 mm brake castors. A wide range of accessories.

Classification
09 12 03 10 - Commode shower chairs with wheels and tilt, no electrical functions

Documents
Brochure
User manual
Accessories catalogue


The product series contains 1 product.

Product 1 of 1
ERGOtip 4 Commode & Shower Chair, reclining


HMI-no.
26723
Article-no.
26723

Registration date
24-08-2000
Last updated
11-09-2025

Properties
Height adjustable
Hydraulik/gas
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
150
kg
Total width
58.5
cm
Ground clearance
46
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
47
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
44
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height, min
54
cm
Seat height, max
54
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
125
mm
Height of push handles/push bar, min.
100
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
100
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
