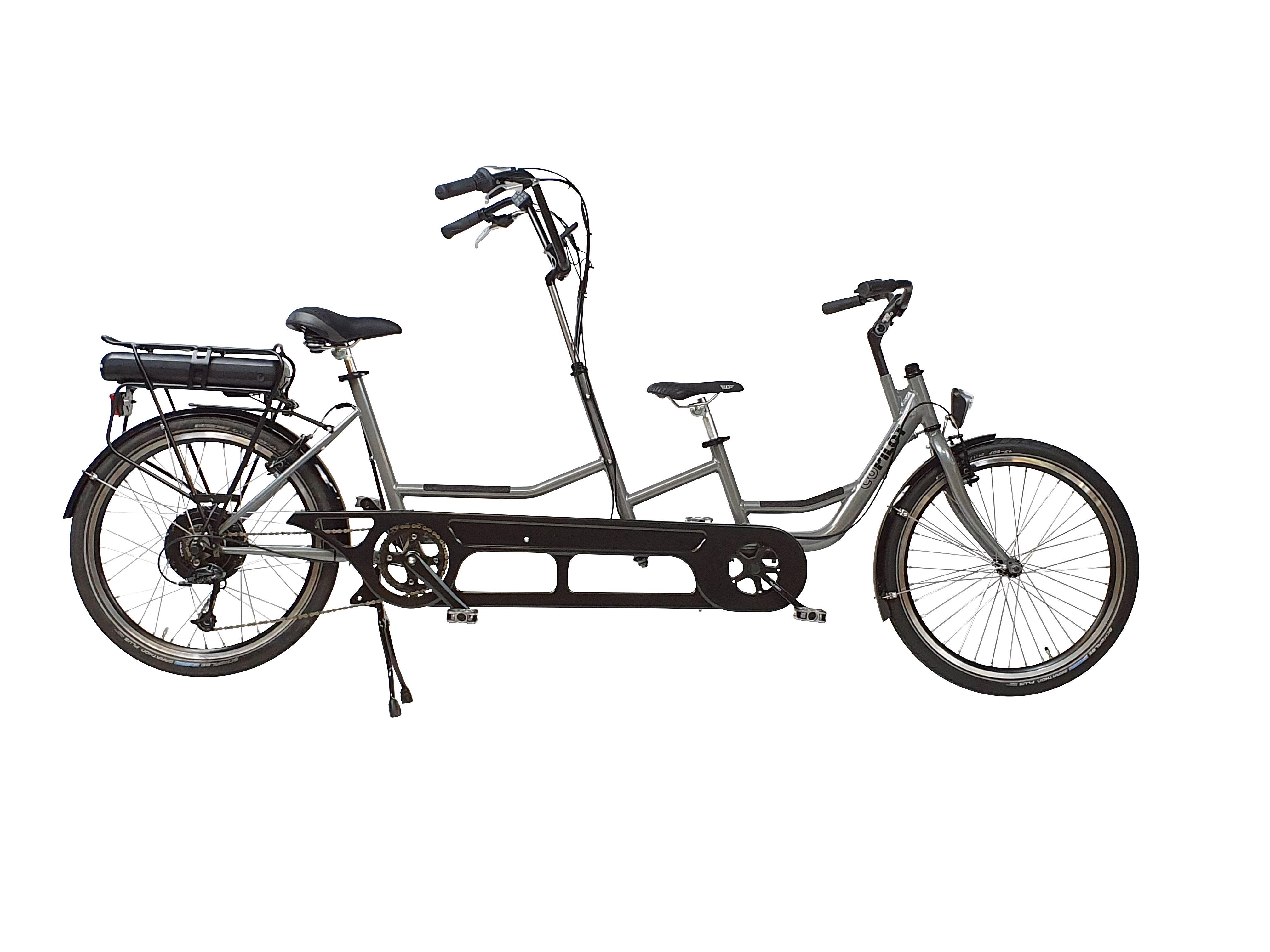

CO-PILOT 26
Tandem where the disabled person sits in front. 7 gear hub and 2 hydraulic rim brakes. Can be supplied with Heinzmann 36 V-250 Watt motor with charging unit, range per charging 30-60 km depending on how much you pedal.
Classification
12 18 15 07 - Tandems with two wheels
Documents
BrochureThe product series contains 2 products.
Specifications summarized
Specifications for the 2 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 2 | ||
|---|---|---|
| Specification/HMI-no. | 44506 | 31270 |
| One crank can be disabled | Yes | Yes |
| Dual steering possible | No | No |
| Power-assist unit | Yes | No |
| Hand propulsion | No | No |
| Steering and gear operation from frontseat | No | No |
| Steering and gear operation from backseat | Yes | Yes |
| Adult/adult | Yes | Yes |
| Adult/child | Yes | Yes |
| Load, max (kg) | 180 | 180 |
| Weight (kg) | 29 | 29 |
| Number of gears | 7 | 7 |
| Inside leg, min, front seat (cm) | 57 | 57 |
| Inside leg, max, front seat (cm) | 98 | 98 |
| Inside leg, min, back seat (cm) | 77 | 77 |
| Inside leg, max, back seat (cm) | 93 | 93 |
