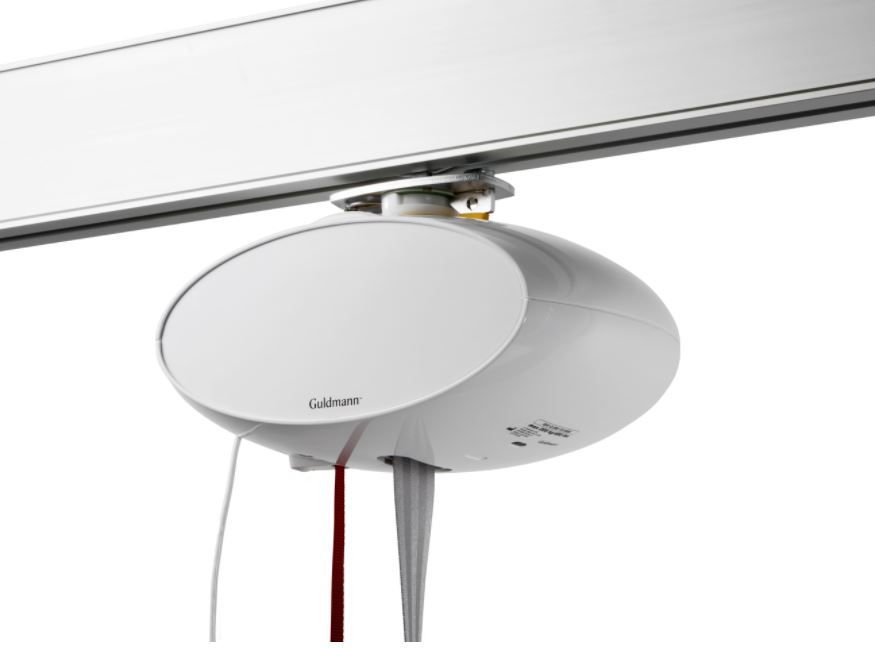

GH1 Quickrelease lifting module

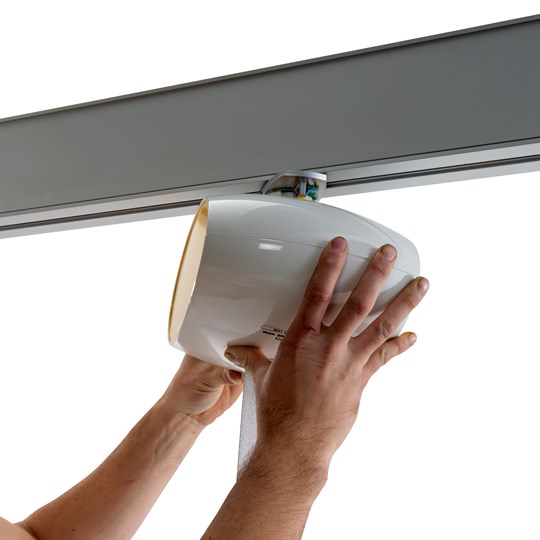

The GH1 Q lifting module is a variation of the GH1 model, supplied with a click system that makes it simple to fit the lifting module to the rails and remove it again if it is necessary to move the module to a different room or apartment.
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
BrochureVideo
Play videoThe product series contains 3 products.
The product series also includes a discontinued product. Include discontinued products.
Specifications summarized
Specifications for the 3 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 3 | |||
|---|---|---|---|
| Specification/HMI-no. | 106905 | 71819 | 85211 |
Ingress protection class for water  0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529) | - | IPX0 | IPX0 |
| Electrical lifting mechanism | Yes | Yes | Yes |
| Electrical horizontal movement | No | No | No |
| Intended fixation to ceiling | Yes | Yes | Yes |
| Intended fixation to wall(s) | Yes | Yes | Yes |
| Intended fixation to floor | Yes | Yes | Yes |
| Fitted with seat | No | No | No |
| Intended use for swimming pools | Yes | Yes | Yes |
| Room covering rail system | Yes | Yes | Yes |
| Door transition without manual handling | Yes | Yes | Yes |
| Door transition with manual handling | Yes | Yes | Yes |
| Detachable lifting machinery | Yes | Yes | Yes |
| External battery charger | Yes | Yes | Yes |
| Charging station at track | Yes | Yes | Yes |
| Charging liner | Yes | Yes | Yes |
| Emergency lowering function, electrically operated | Yes | Yes | Yes |
| Emergency lowering function, manually operated | Yes | Yes | Yes |
| User weight, max (kg) | 205 | 205 | 255 |
| Max lifting velocity, loaded (m/s) | 0.03 | 0.03 | 0.03 |
| Weight of lifting machinery (kg) | 8 | 8 | 8 |
| Min. distance from ceiling to central suspension point (cm) | 47.35 | 47.35 | 47.35 |
| Maintenance frequency (måneder) | 12 | 12 | 12 |
