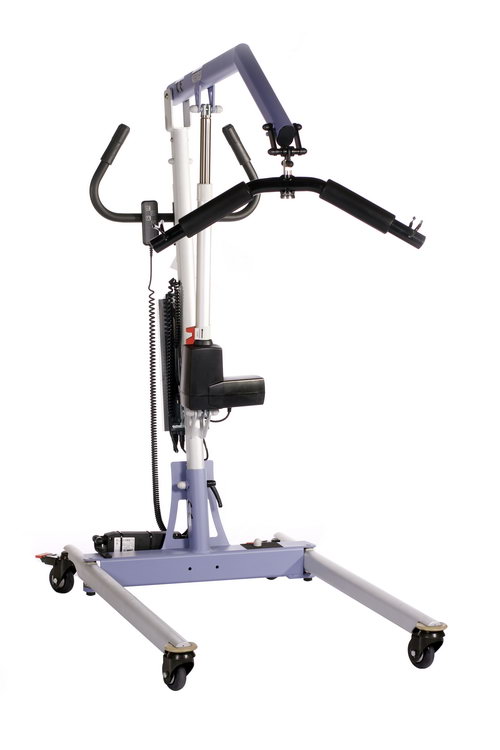

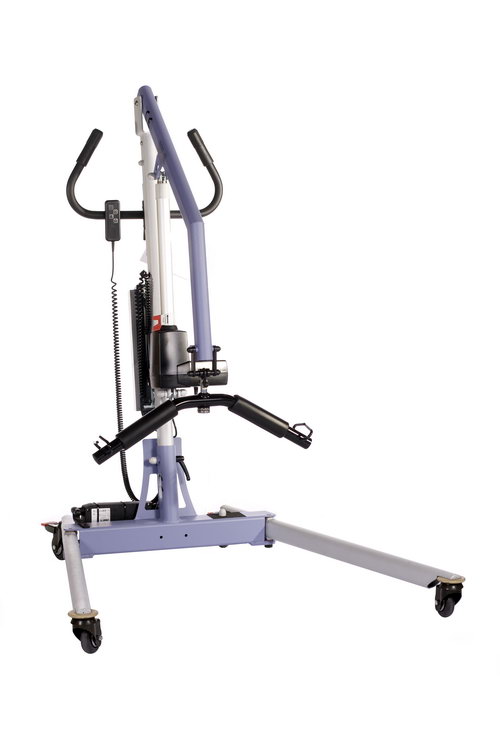

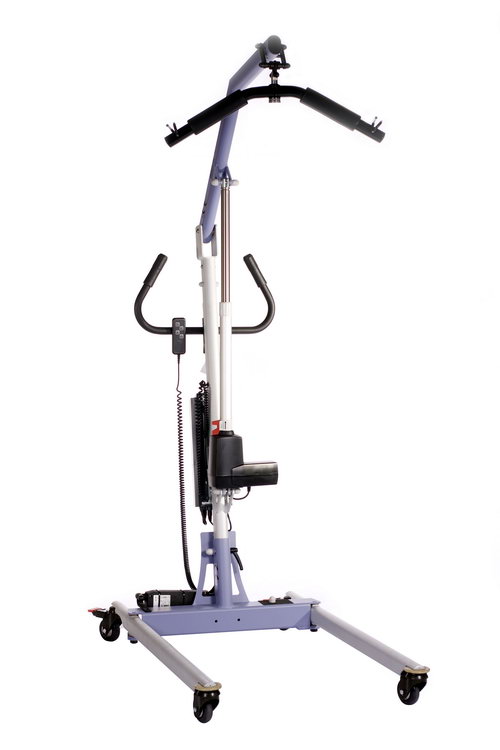

CareLine Fionia Basic
Fionia Lift has electric spreading of the legs which move a full length like the traditional V-lifts. This means that the distance between the castors is reduced slightly when spreading the legs.
In standard execution the lift is equipped with foam upholstered
hanger bar and adjustable handle or fixed.
In standard execution the lift is equipped with foam upholstered
hanger bar and adjustable handle or fixed.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
CareLine Fionia Basic
HMI-no.
83795
Article-no.
2004-165-3
Registration date
27-03-2014
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX5
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
165
kg
Internal width of base, max
100
cm
Measured with the base in the widest position
External width of base in the most narrow position
108
cm
Height of base at front
13
cm
Turning diameter
123
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
22
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
