Powered Comfort Chairs with 2 power functions

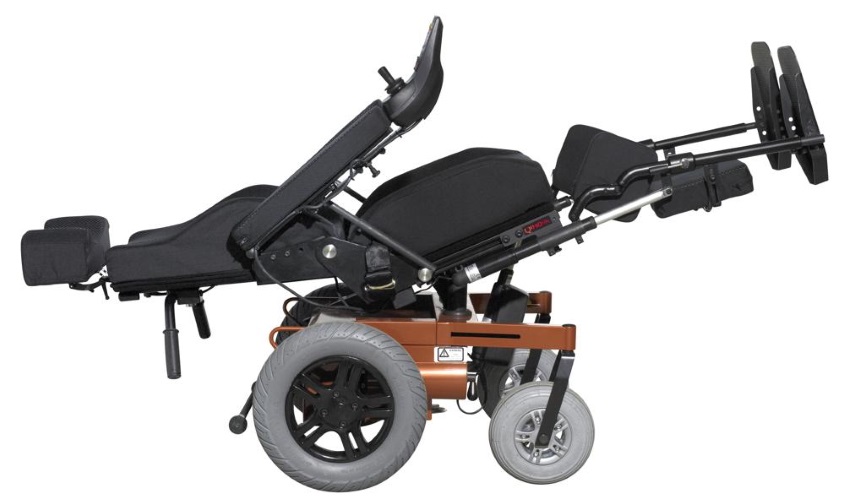

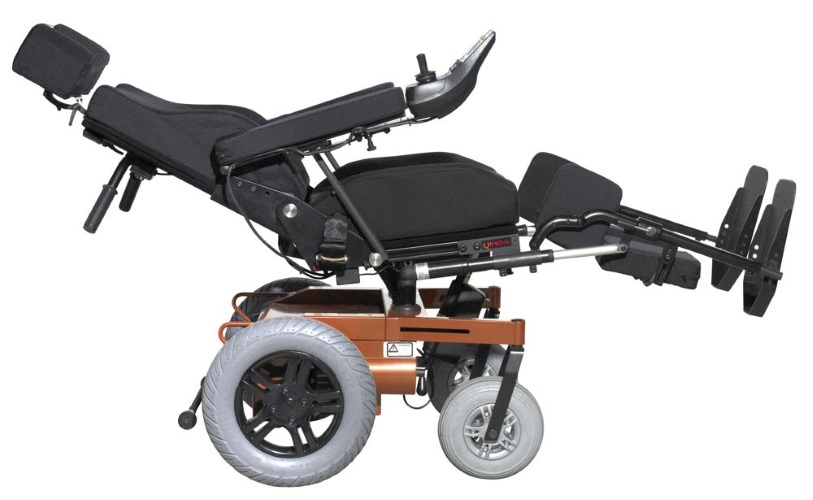

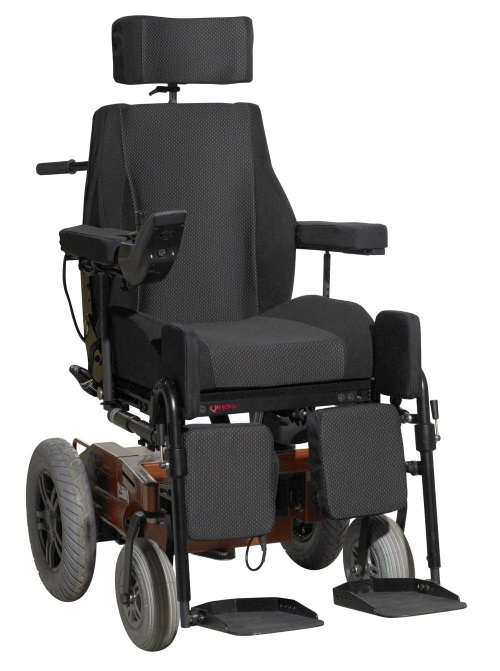

Power Comfort Chair, Rear wheel drive, with power operated tilt and recline, Swingaway legrests. Manual elevation. Wheels in size 10, 12, and 14 inches with Flexel.

Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)



The product series contains 4 products.

» All product details

Specifications summarized

Specifications for the 4 products in the product series. Click a HMI-no. to see all details for a single product.

Product 1 - 4
Specification/HMI-no.102907102856102908102909
ProgrammableYesYesYesYes
Elevating seatNoNoNoNo
Powered reclineYesYesYesYes
Powered tiltYesYesYesYes
Powered legrestsNoNoNoNo
Optional motorized attendant controlYesYesYesYes
SuspensionNoNoNoNo
Front-wheel-drivenNoNoNoNo
Mid-wheel-drivenNoNoNoNo
Rear-wheel-drivenYesYesYesYes
Can be used as seat in a carYesYesYesYes
User weight, max (kg)160160160160
External width (cm)
Measured where widest
60606060
External length (cm)
Maximum external length with the seat in an upright position. Measured without leg supports
99999995
Weight (kg)108108108108
Speed, max (km/t)8.58.58.58.5
Driving distance range, fully charged (km)
The theoretical driving distance range as calculated through laboratory testing.
40404040
Seat height, min (cm)
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
41414141
Seat height, max (cm)
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
55555555
Back rest recline, max (°)
Recline of back rest from an upright position.
165165165165
Tilt-in-space forward (°)
Measured from the horizontal position.
18181818
Tilt-in-space back (°)
Measured from the horizontal position.
45454545
Ground clearance (cm)7.57.57.57.5
Slope, max (°)7777
Climbs obstacles of max (cm)3333
