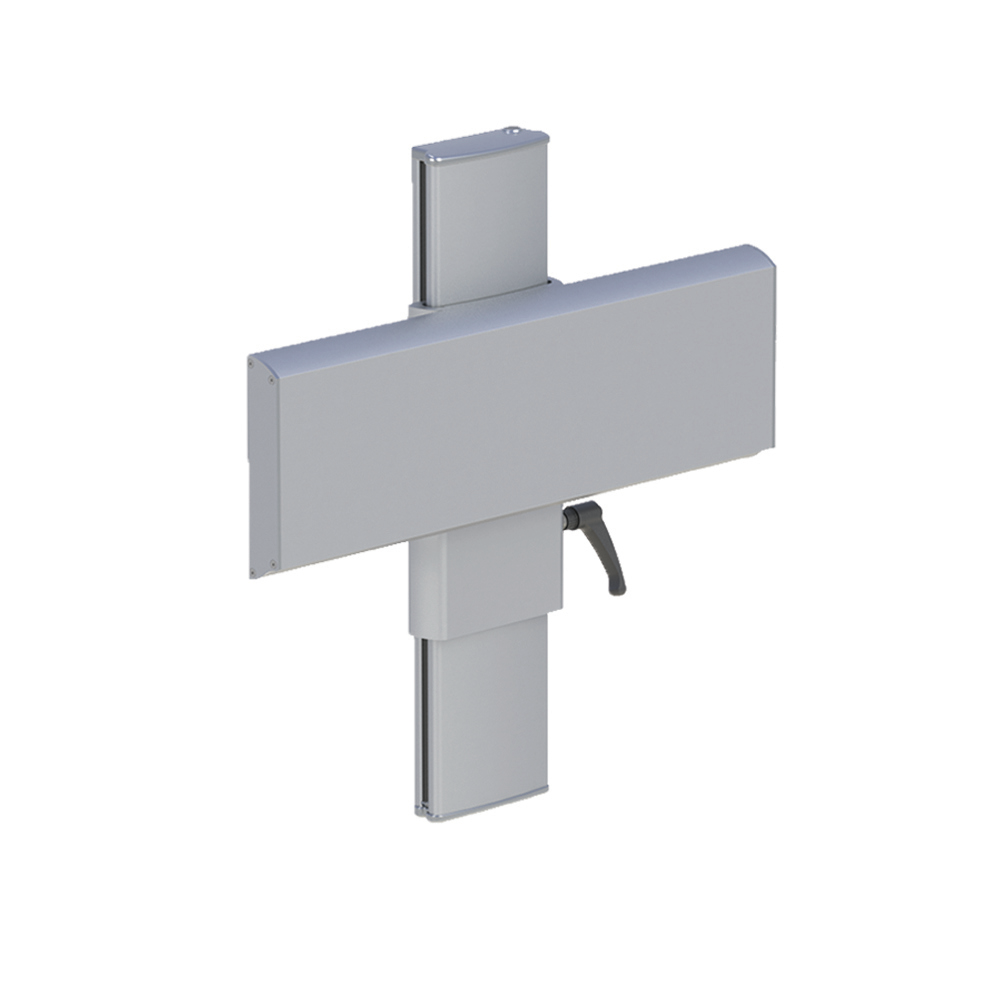

Height adjustable sockets, brackets and chassis
Height adjustable sockets and brackets on which furniture can be placed.
Classification
18 15 06 01 - Height-adjustable plinths and brackets
The product series contains 16 products.
Specifications summarized
Specifications for the 16 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 10 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Specification/HMI-no. | 111517 | 111501 | 111511 | 111519 | 111551 | 111553 | 111523 | 111550 | 111560 | 111561 |
| Intended for use in bath rooms | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Diagonal movement  E.g., when an upper cupboard in the up and down movement also moves away from the wall, closer to the person | No | No | No | No | No | No | No | No | No | No |
| Sideways movable, manual | No | No | No | No | Yes | Yes | Yes | Yes | No | No |
| Sideways movable, electric | No | No | No | No | No | No | No | No | No | No |
| Sideways movable, gas spring | No | No | No | No | No | No | No | No | No | No |
| Heigh adjustment, manual | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Height adjustment, electrical | No | No | No | No | No | No | No | No | No | No |
| Height adjustment, gas cartridge | No | No | No | No | No | No | No | No | Yes | Yes |
| Remote control | No | No | No | No | No | No | No | No | No | No |
| Load, max (kg) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Movement (cm) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Product 11 - 16 | ||||||
|---|---|---|---|---|---|---|
| Specification/HMI-no. | 111554 | 111559 | 111564 | 111562 | 111563 | 111565 |
| Intended for use in bath rooms | Yes | Yes | Yes | Yes | Yes | Yes |
| Diagonal movement E.g., when an upper cupboard in the up and down movement also moves away from the wall, closer to the person | No | No | No | No | No | No |
| Sideways movable, manual | No | No | Yes | Yes | Yes | Yes |
| Sideways movable, electric | No | No | No | No | No | No |
| Sideways movable, gas spring | No | No | No | No | No | No |
| Heigh adjustment, manual | No | No | No | No | No | No |
| Height adjustment, electrical | No | No | No | No | No | No |
| Height adjustment, gas cartridge | Yes | Yes | Yes | Yes | Yes | Yes |
| Remote control | No | No | No | No | No | No |
| Load, max (kg) | 150 | 150 | 150 | 150 | 150 | 150 |
| Movement (cm) | 30 | 30 | 30 | 30 | 30 | 30 |
