Esense Line Drive
Hoist with electric drive system.

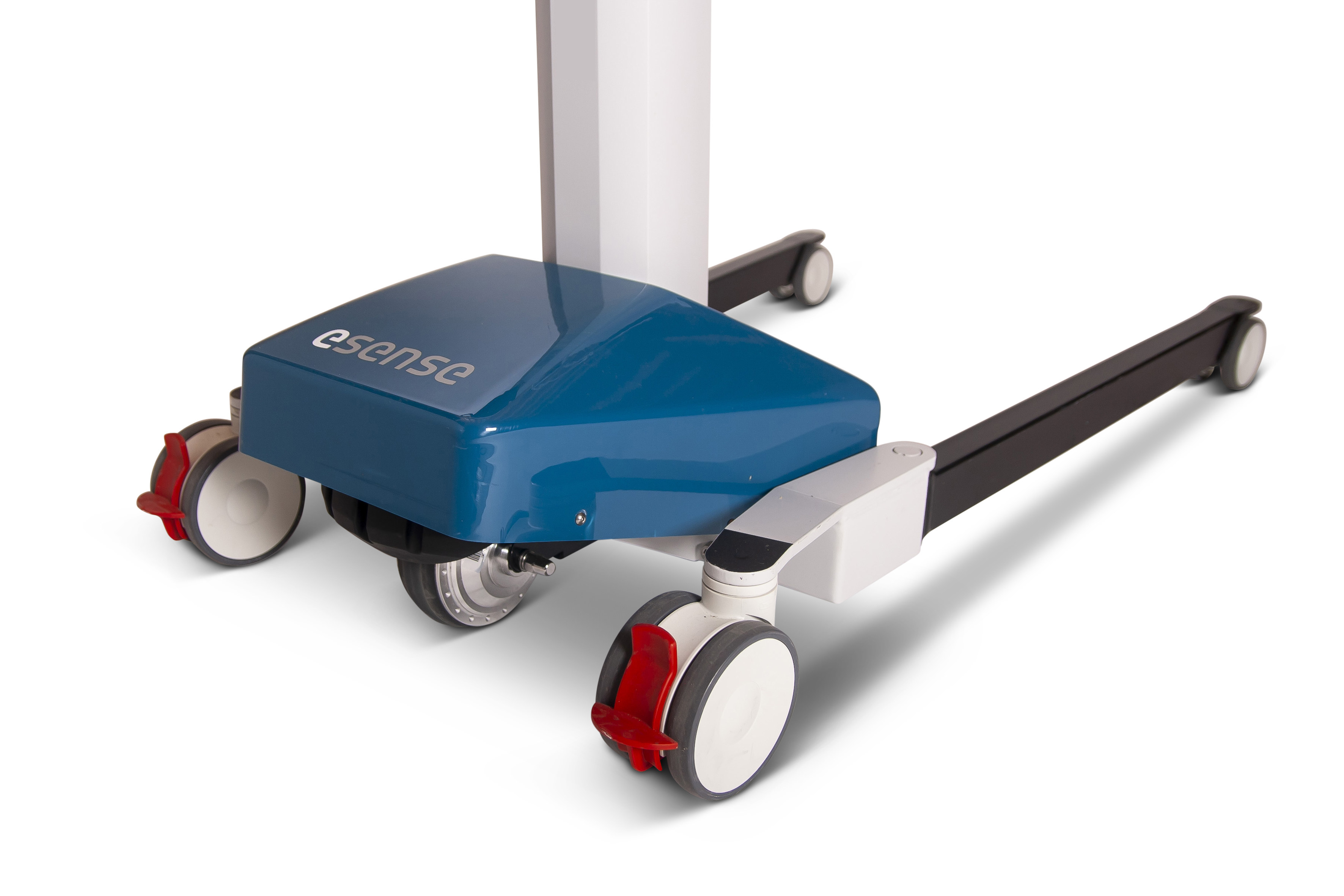

The drive system makes it possible to move the lift with minimal force.
The force sensor in the handlebar feels how the lift is pushed and translates this to the right direction and speed of the electric wheel.
The intuitive control guarantees a minimal
learning time.
The drive system makes it possible to move the lift with minimal force.
The force sensor in the handlebar feels how the lift is pushed and translates this to the right direction and speed of the electric wheel.
The intuitive control guarantees a minimal
learning time.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
BrochureThe product series contains 4 products.
Product 1 of 4
Esense Line Drive
HMI-no.
131814
Article-no.
1012-E1206-4702
Registration date
26-01-2022
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX2
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
150
kg
Internal width of base, max
103
cm
Measured with the base in the widest position
External width of base in the most narrow position
67.5
cm
Height of base at front
11.5
cm
Turning diameter
125
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
64
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications

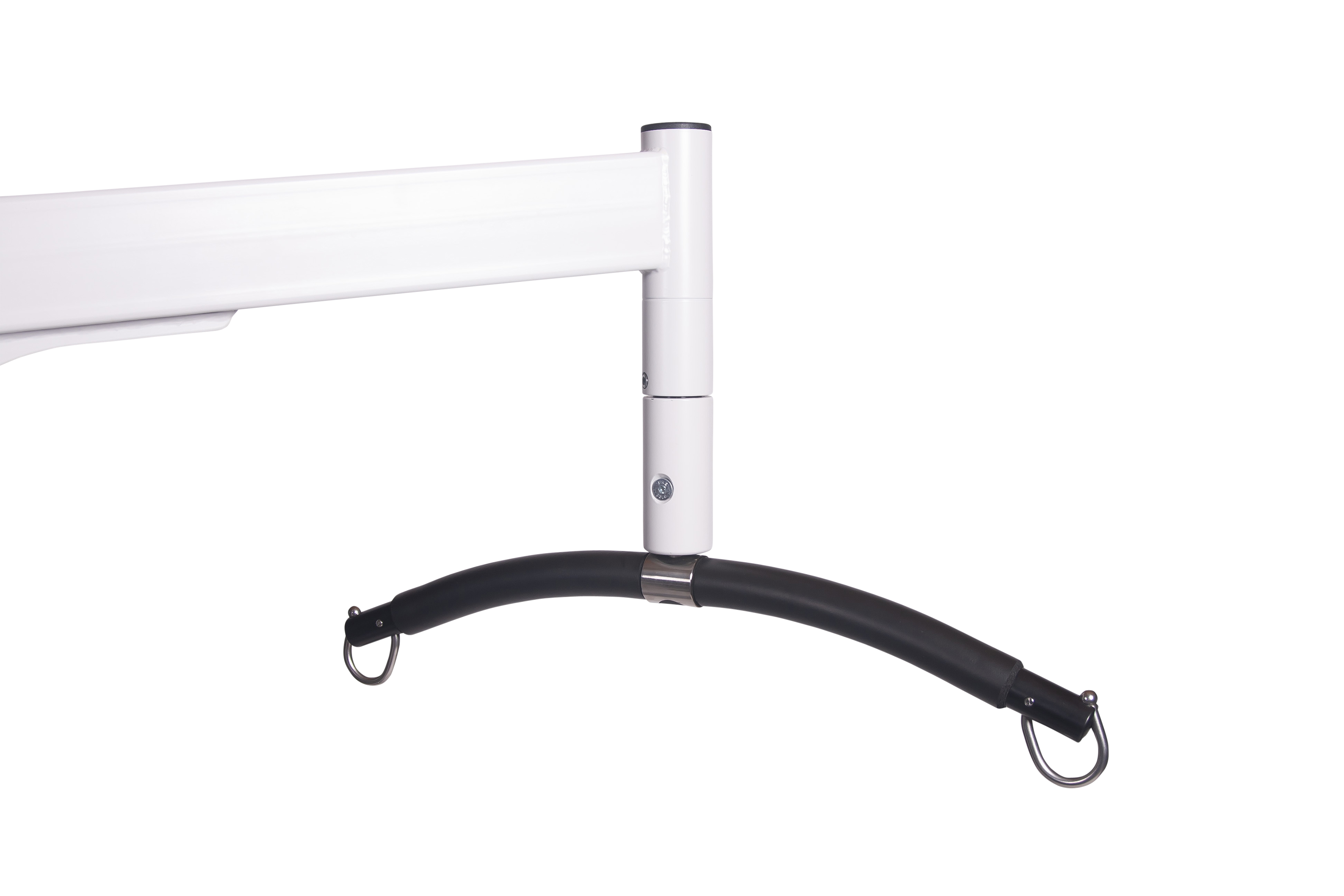

Available with 2-point hanger bar for slings with hoops.
Product 2 of 4
Esense Line Drive
HMI-no.
131816
Article-no.
1012-E1206-4502
Registration date
26-01-2022
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX2
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
175
kg
Internal width of base, max
127
cm
Measured with the base in the widest position
External width of base in the most narrow position
74
cm
Height of base at front
11.5
cm
Turning diameter
149
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
72
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
Available with 2-point hanger bar for slings with hoops.
Product 3 of 4
Esense Line Drive 200
HMI-no.
131815
Article-no.
1012-E1206-4702
Registration date
26-01-2022
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX2
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
200
kg
Internal width of base, max
127
cm
Measured with the base in the widest position
External width of base in the most narrow position
74
cm
Height of base at front
11.5
cm
Turning diameter
146
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
70
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
Available with 2-point hanger bar for slings with hoops.
Product 4 of 4
Esense Line Drive 230
HMI-no.
131817
Article-no.
1012-E1206-7004
Registration date
26-01-2022
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX2
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
230
kg
Internal width of base, max
127
cm
Measured with the base in the widest position
External width of base in the most narrow position
74
cm
Height of base at front
11.5
cm
Turning diameter
146
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
70
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
Available with 2-point hanger bar for slings with hoops.
