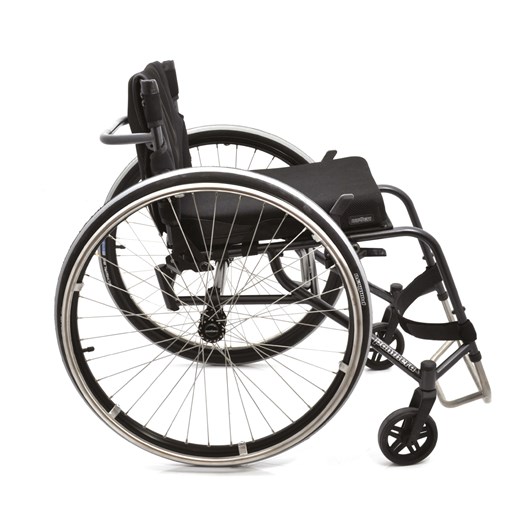

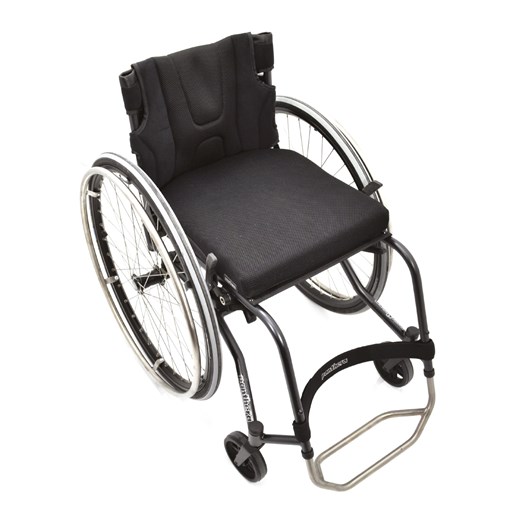

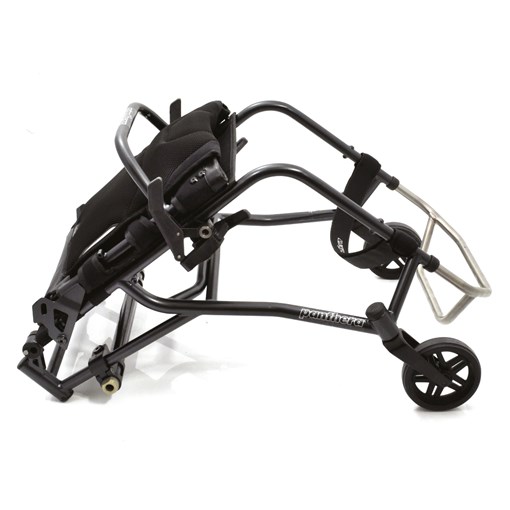

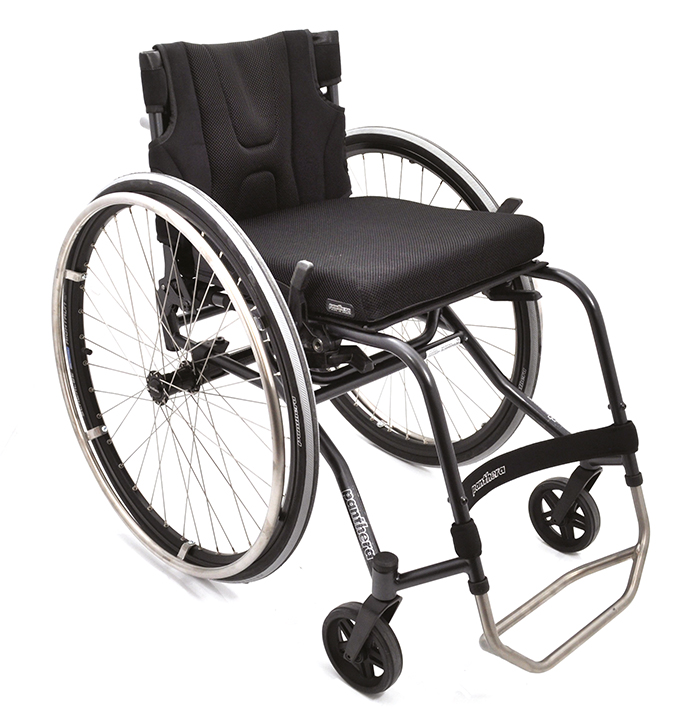

Panthera S3 Short
The Panthera S3 Short is 5 cm shorter than the S3 and is developed for users with an active lifestyle.
The low weight and stable fixed frame and front wheels make the chair very easy to drive and easy to maneuver. Armrests, side pieces and anti-tip are adjusted without the use of tools by the user himself. The tipping point is set steplessly.
The low weight and stable fixed frame and front wheels make the chair very easy to drive and easy to maneuver. Armrests, side pieces and anti-tip are adjusted without the use of tools by the user himself. The tipping point is set steplessly.
Classification
12 22 03 13 - Manual wheelchairs with rigid frame, standard measures
The product series contains 6 products.
Specifications summarized
Specifications for the 6 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 6 | ||||||
|---|---|---|---|---|---|---|
| Specification/HMI-no. | 100426 | 100427 | 100429 | 100430 | 100431 | 100432 |
| Number of wheels | 4 | 4 | 4 | 4 | 4 | 4 |
| Adjustable seat angle | No | No | No | No | No | No |
| Balance point adjustable | Yes | Yes | Yes | Yes | Yes | Yes |
Available with hard base  As opposed to sling seat | No | No | No | No | No | No |
| Back rest angle adjustable | Yes | Yes | Yes | Yes | Yes | Yes |
| Height adjustable back rest | No | No | No | No | No | No |
| Push handles | Yes | Yes | Yes | Yes | Yes | Yes |
| Front-wheel-driven | No | No | No | No | No | No |
| Intended for fastening in a car | Yes | Yes | Yes | Yes | Yes | Yes |
| User weight, max (kg) | 100 | 100 | 100 | 100 | 100 | 150 |
| Seat height, min (cm) | 37.9 | 37.9 | 37.9 | 37.9 | 37.9 | 37.9 |
| Seat height, max (cm) | 53 | 53 | 53 | 53 | 53 | 53 |
| Back rest height, min (cm) | 20 | 20 | 20 | 20 | 20 | 20 |
| Back rest height, max (cm) | 45 | 45 | 45 | 45 | 45 | 45 |
| Total width (cm) | 51 | 54 | 57 | 60 | 63 | 66 |
| Total length (cm) | 73 | 73 | 73 | 73 | 73 | 73 |
| Weight (kg) The stated weight of the wheelchair is incl. wheels and leg supports. | 4.5 | 4.6 | 4.7 | 4.7 | 4.8 | 5 |
| Seat width (cm) | 30 | 33 | 36 | 39 | 42 | 45 |
| Seat depth (cm) | 27 | 27 | 35 | 35 | 35 | 35 |
