One arm wheelchair




Classification
12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
Brochure
User manual
QuickGuide


The product series contains 8 products. The product below meets the specified details.
Click show all products to see all products belonging to the product series.

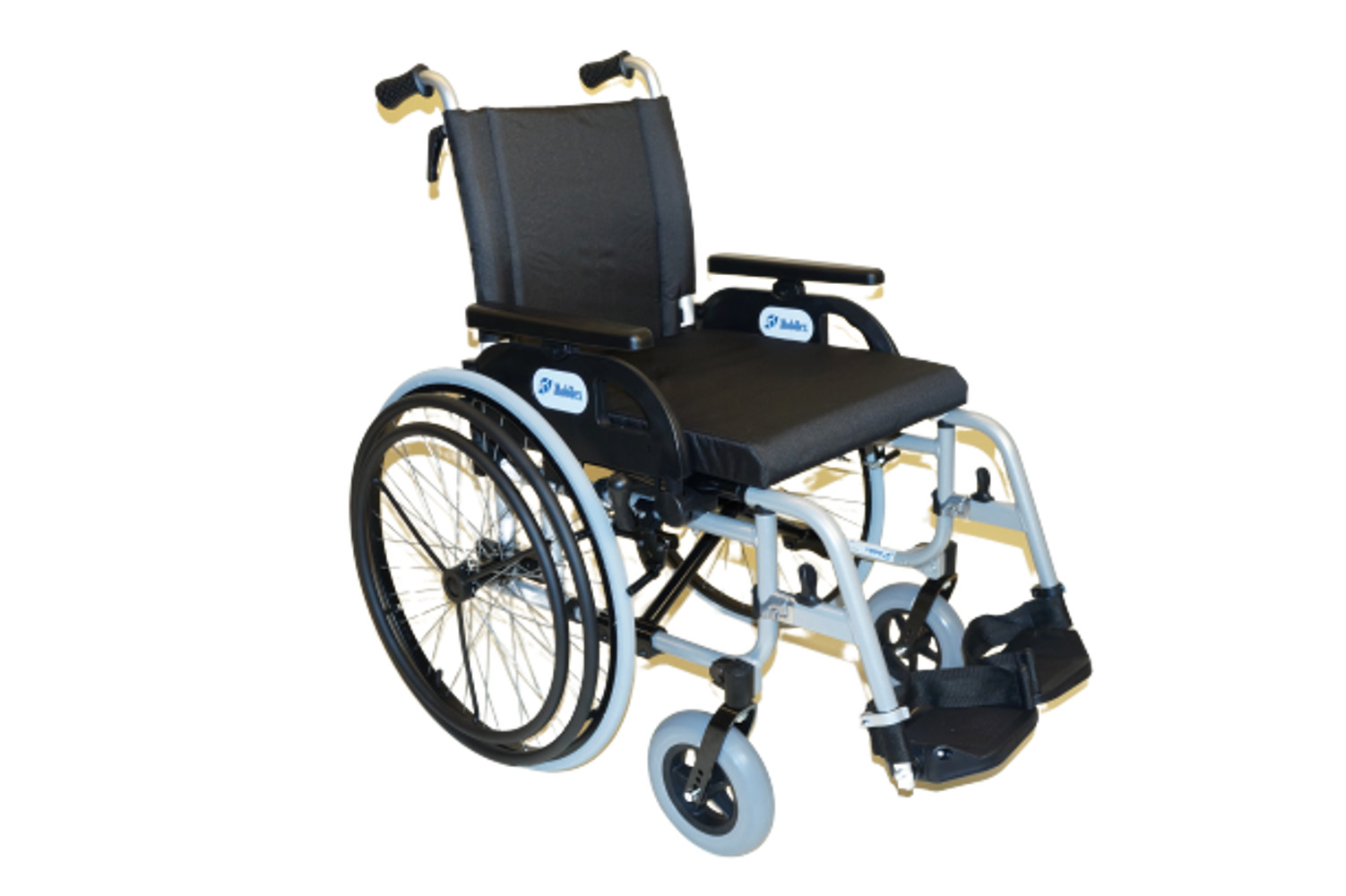

one arm wheelchair sb 40 right


HMI-no.
121354
Article-no.
D1901

Registration date
30-01-2020
Last updated
22-10-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
Yes
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
150
kg
Seat height, min
45
cm
Seat height, max
52
cm
Back rest height, min
39
cm
Back rest height, max
39
cm
Total width
60
cm
Total length
101
cm
Weight
15.4
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
40
cm
Seat depth, min
42
cm
Possibly by adjustment
Seat depth, max
48
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: Polish Centre for Testing and Certification. Test date: 10-11-2010 Test report for HMI-no. 121354

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
