Stellar 170

Stellar 170

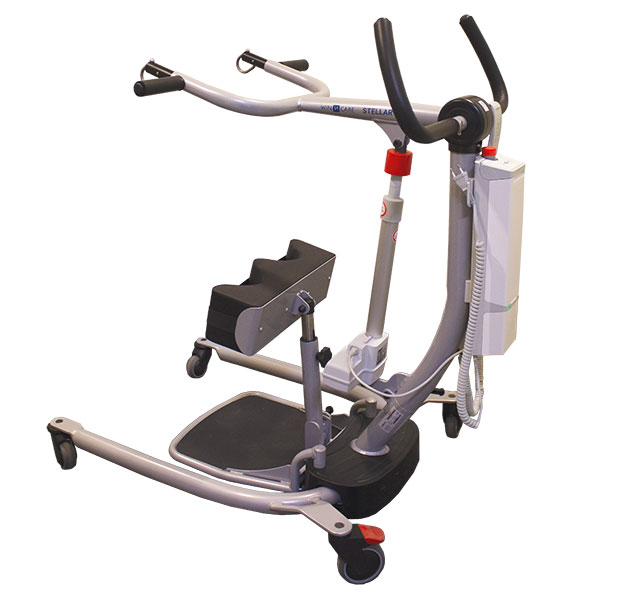

Stellar 170. The new design of the lifting arm contributes to a more comfortable lifting process and utilizes the benefits of the sling.
The lifting arm now has 2 handles, providing a more
natural grip for the user during the transfer.

Classification
12 36 04 01 - Mobile hoists for transferring a person in standing position

Documents
Brochure
User manual


The product series contains 1 product.
The product series also includes a discontinued product. Include discontinued products. The product below meets the specified details.

Stellar 170


HMI-no.
133501
Article-no.
011-01701

Registration date
29-07-2022
Last updated
17-10-2024

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet
Electrical lifting mechanism
Yes
Leg support adjustable in height
Yes
Leg support horizontal adjustable
Yes
Leg support adjustable without tools
Yes
Split leg support
No
Foldable
No
Can be disassembled without tools
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Unit for use with sling(s) available
Yes

Measures
User weight, max
170
kg
Lifting height, max
160
cm
Internal width of base, max
83
cm
External width of base in the most narrow position
70
cm
Height of base at front
12
cm
Turning diameter
106
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
23.4
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
