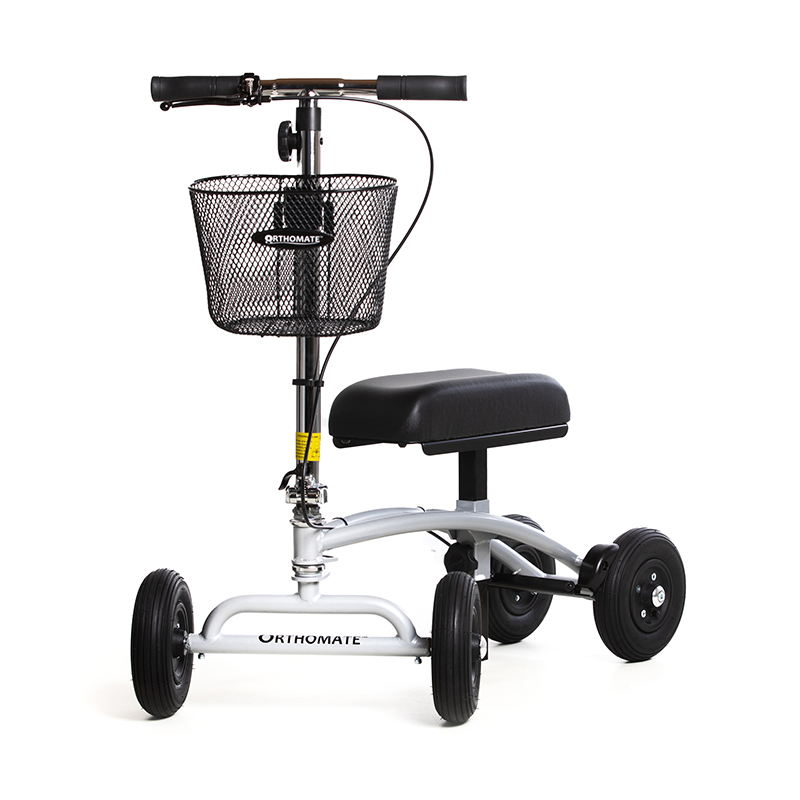

Kniestep Orthomate knee walker



Kniestep Orthomate is a 4-wheel knee walker that relieves the foot and lower leg during walking after injury or surgery. The user rests the leg on a padded knee support and propels with the healthy leg. Provides stable, safe and more ergonomic mobility than crutches. Suitable for indoor and outdoor use. Height adjustable and foldable.

Classification
12 06 06 11 - Rollators with four wheels, to be pushed

Documents
User manual


The product series contains 1 product. The product below meets the specified details.

Kniestep Orthomate knee walker


HMI-no.
148072
Article-no.
RL-505

Registration date
14-04-2026
Last updated
28-04-2026

Properties
Indoor use
Yes
Outdoor use
Yes
Intended/suitable for one-hand operation
No
As a minimum the brakes can be operated on both sides with one hand
Resting seat
Yes
Provided with back support
No
Provided with basket
Yes
Foldable
Yes
Lateral foldable
No
Can frame be locked when folded
Yes
Indicates whether the frame can be locked when folded, e.g. during transport and handling of the rollator
Has or can be supplied with inflated tyres
Yes

Measures
Handgrip height, min
82
cm
Lowest position for the hand grip
Handgrip height, max
107
cm
Heighest position of the hand grip
External width, max
41
cm
The maximum external width of the rollator when all adjustments are at their maximum
Length, max
80
cm
The maximum external length of the rollator when all adjustments are at their maximum
Weight
11.4
kg
Excludes accessories that are detachable without the use of tools, e.g. basket, tray or seat
User weight, max
159
kg
Distance between handles
24
cm
Measured with the handles adjusted parallel to the direction of movement
Seat height, min
41
cm
Measured from the floor to the centre of the upper surface of the seat
Seat height, max
53
cm
Measured from the floor to the centre of the upper surface of the seat. Measured with the seat in the highest position
Load in basket, max
5
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 148072
