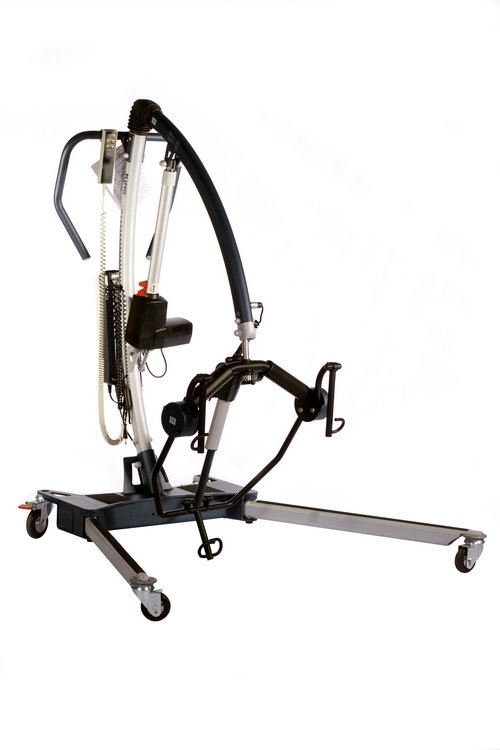

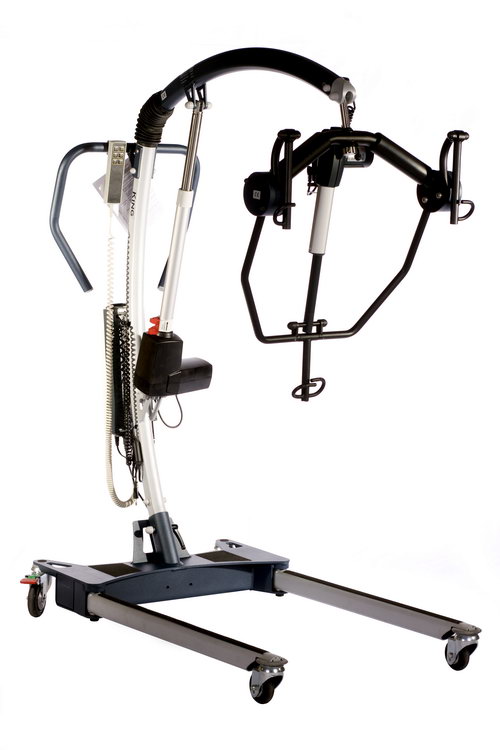

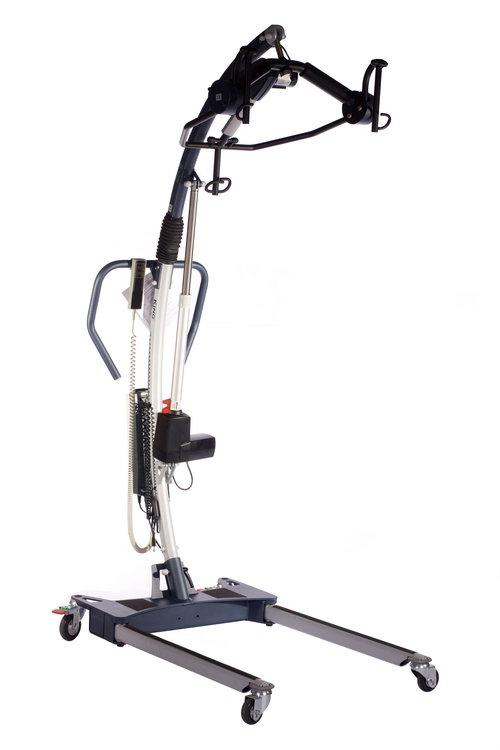

King with Electric 3 point hanger bar
Careline King 250 lift

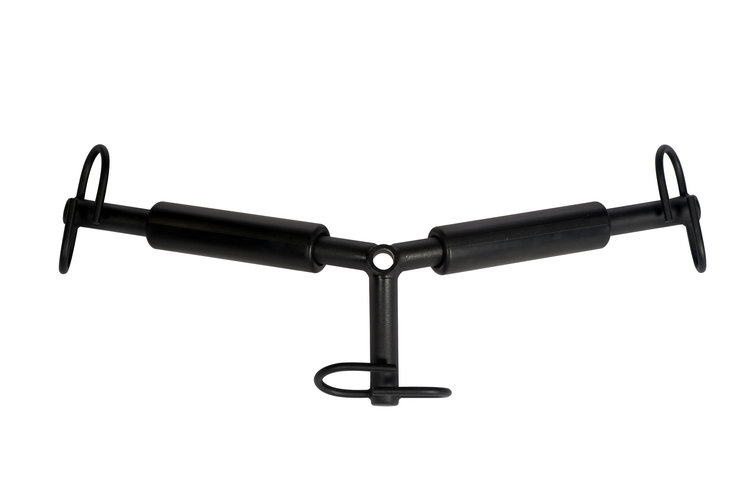

With the special hanger bar it is
safe and easy to position the patient. The patient can be elevated from the floor to sitting position or to a laying position in the bed. The lift can be supplied with a compact electronic medical approved scale.
With the special hanger bar it is
safe and easy to position the patient. The patient can be elevated from the floor to sitting position or to a laying position in the bed. The lift can be supplied with a compact electronic medical approved scale.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
BrochureThe product series contains 2 products. The product below meets the specified details.
Click show all products to see all products belonging to the product series.
King med indbygget 4-punkts elektrisk løfteåg
HMI-no.
51751
Article-no.
2003K-250-3
Registration date
30-04-2009
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX5
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
250
kg
Internal width of base, max
105
cm
Measured with the base in the widest position
External width of base in the most narrow position
112.6
cm
Height of base at front
13
cm
Turning diameter
132
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
24
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
