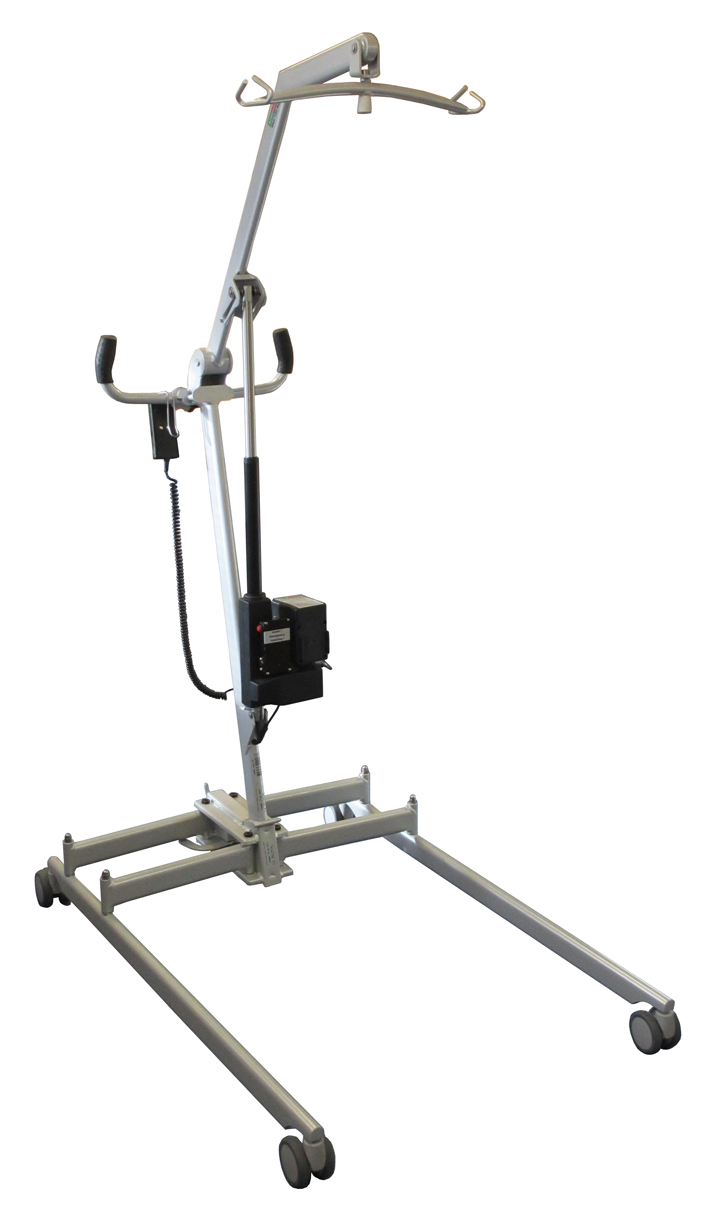

Borringia Flex-Lift - Portable person hoist
This product series and all belonging products have been discontinued by Winncare Nordic ApS since 13-08-2021
The Flex-Lift mast and undercarriage each weigh some 12.5kg and are asembled without the use of tools. Flex-Lift is sufficiently compact to be easily placed in the boot of a small car and when folded can be parked against the wall - only 23cm wide. The first truly portable person hoist. Extras: Transport bags and light weight full body sling.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
BrochureThe product series includes 1 discontinued product.
Product 1 of 1
Borringia Flex-Lift - Portable person hoist
The product was discontinued from Winncare Nordic ApS 13-08-2021HMI-no.
31647
Article-no.
010-02001EU
Registration date
20-02-2002
Last updated
11-01-2024
Properties
Ingress protection class for water
IPX6
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
Yes
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
130
kg
Internal width of base, max
66
cm
Measured with the base in the widest position
External width of base in the most narrow position
77.5
cm
Height of base at front
11.5
cm
Turning diameter
134
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
12.6
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
