Invacare Birdie
This product series and all belonging products have been discontinued by Invacare A/S since 13-01-2021

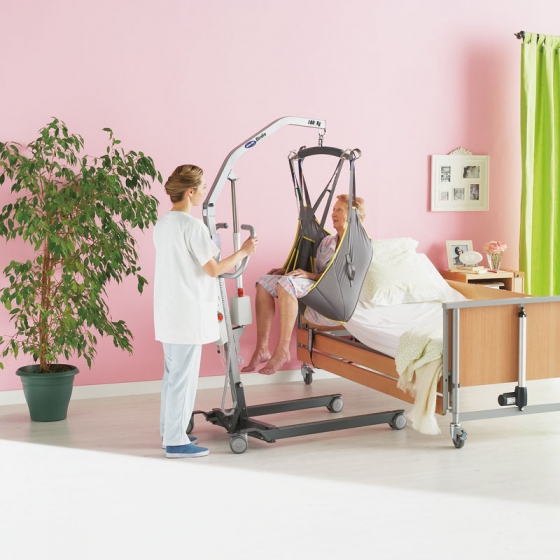

With maximum space for the user, the Birdie offers a truly comfortable lift and transfer to or from beds, chairs or even the floor. The lift is designed to ensure that folding and unfolding can be carried out easily and without the need for tools. In addition, the lifter can be dismantled into two parts if needed also without any tools.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
BrochureThe product series includes 1 discontinued product.
Product 1 of 1
Invacare Birdie
The product was discontinued from Invacare A/S 13-01-2021HMI-no.
50501
Article-no.
3000500E4A00-0125
Registration date
19-12-2008
Last updated
11-01-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
Yes
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
180
kg
Internal width of base, max
104
cm
Measured with the base in the widest position
External width of base in the most narrow position
66
cm
Height of base at front
11.5
cm
Turning diameter
140
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
21
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
