Wooden design for the OPUS 1CW- and OPUS 1DW-serie (care bed)

Wooden design for the OPUS 1CW- and OPUS 1DW-serie (care bed)

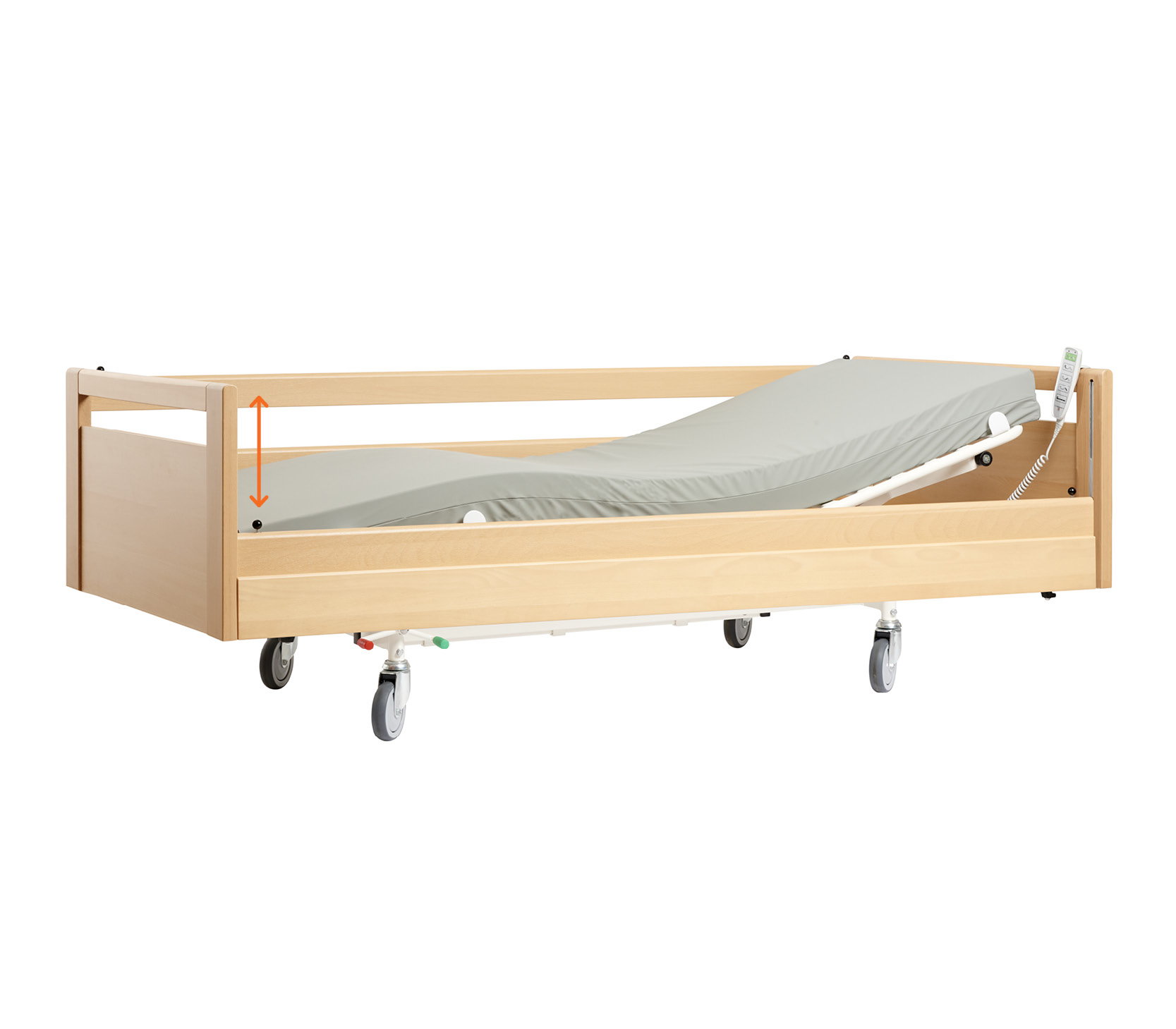

Complete wooden design for the OPUS 1CW- and OPUS 1DW-serie in light beech with foldable wooden sides. For a homely and functional design. The external height of the foot board and foldable wooden sides in the highest position is 51 cm.

Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated



The product series includes 5 products of which 1 product is discontinued.

» Summarize specifications

Product 1 of 5
Wooden design for OPUS 1

The product was discontinued from KR 18-10-2016


HMI-no.
72634
Article-no.
15051085

Registration date
28-06-2012
Last updated
14-08-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for use in hospitals
No
Intended for use in a domestic area
Yes
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No

Measures
Outside measure length
216
cm
Measured without any bed extension
Outside measure width
106.5
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
85
cm
Load, max
220
kg
Maximum external load on the product that is permitted in normal use
User weight, max
185
kg
Weight of heaviest main part
25
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
36
cm
Measured without mattress
Mattress support platform, height above floor, max
83
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
12.5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
L 2160 mm W 1650 mm H 510 mm


Product 2 of 5
WOODEN DESIGN FOR OPUS 1-085CW and -DW


HMI-no.
102660
Article-no.
15052-085

Registration date
18-10-2016
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
217
cm
Measured without any bed extension
Outside measure width
100
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
85
cm
Load, max
220
kg
Maximum external load on the product that is permitted in normal use
User weight, max
185
kg
Weight of heaviest main part
25
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
36
cm
Measured without mattress
Mattress support platform, height above floor, max
83
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
12.5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 3 of 5
WOODEN DESIGN FOR OPUS 1-090CW and -DW


HMI-no.
102661
Article-no.
15052-090

Registration date
18-10-2016
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
217
cm
Measured without any bed extension
Outside measure width
105
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
90
cm
Load, max
220
kg
Maximum external load on the product that is permitted in normal use
User weight, max
185
kg
Weight of heaviest main part
25
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
36
cm
Measured without mattress
Mattress support platform, height above floor, max
83
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
12.5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 4 of 5
WOODEN DESIGN FOR OPUS 1-110CW and -DW


HMI-no.
102662
Article-no.
15052-110

Registration date
18-10-2016
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
217
cm
Measured without any bed extension
Outside measure width
125
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
110
cm
Load, max
220
kg
Maximum external load on the product that is permitted in normal use
User weight, max
185
kg
Weight of heaviest main part
26
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
36
cm
Measured without mattress
Mattress support platform, height above floor, max
83
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
12.5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 5 of 5
WOODEN DESIGN FOR OPUS 1-120CW and -DW


HMI-no.
102663
Article-no.
15052-120

Registration date
18-10-2016
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
217
cm
Measured without any bed extension
Outside measure width
135
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
120
cm
Load, max
220
kg
Maximum external load on the product that is permitted in normal use
User weight, max
185
kg
Weight of heaviest main part
29
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
36
cm
Measured without mattress
Mattress support platform, height above floor, max
83
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
12.5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
