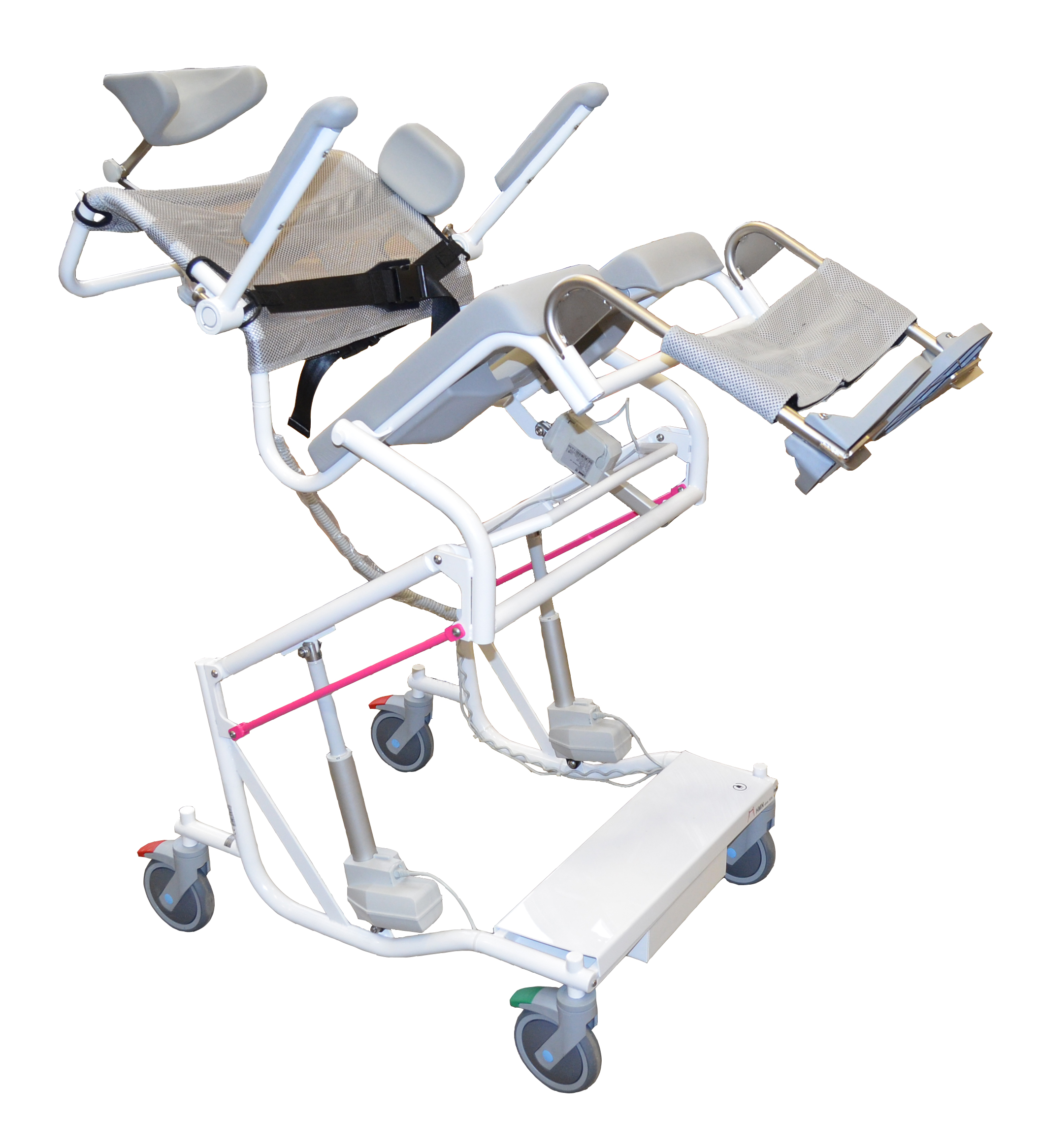

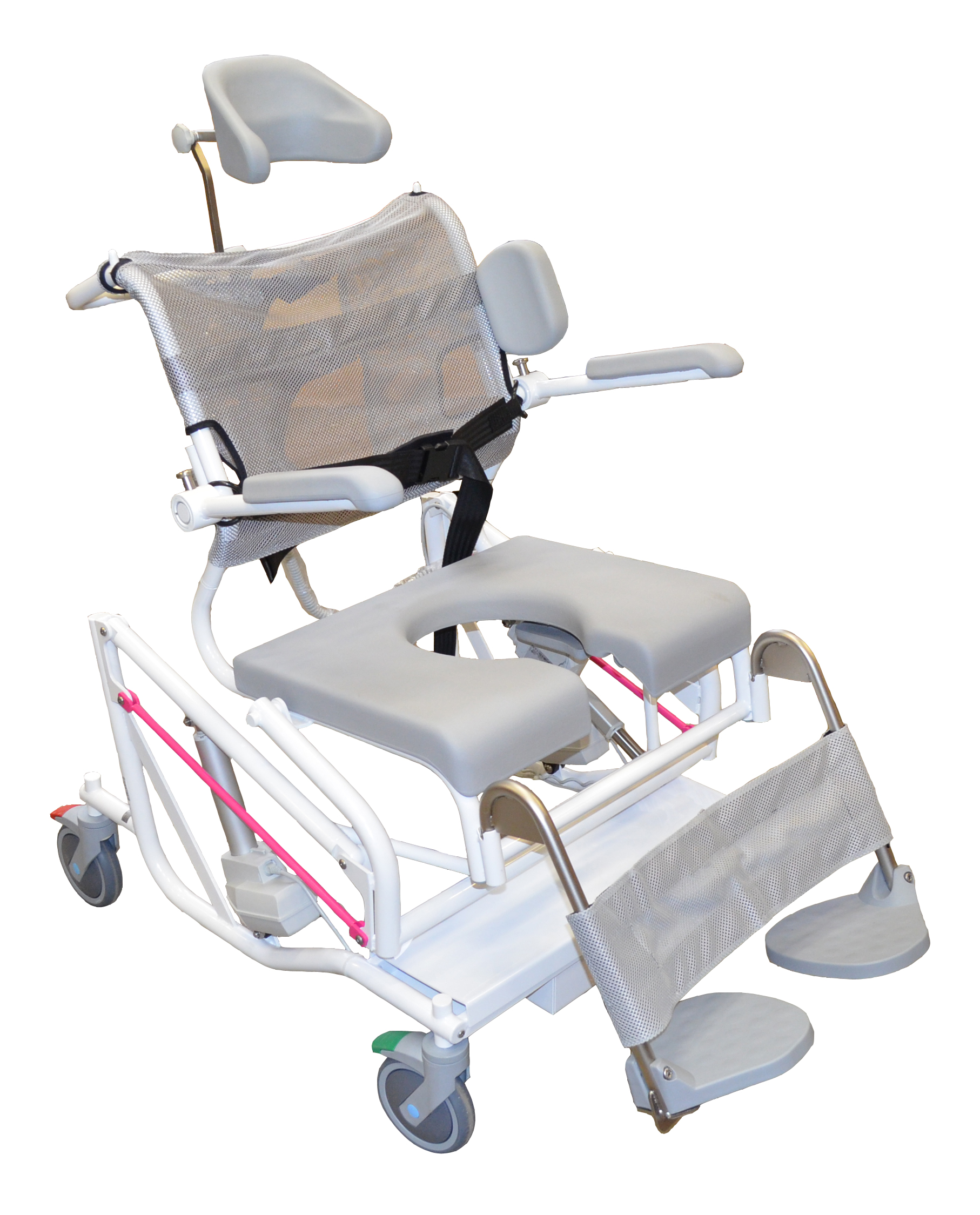

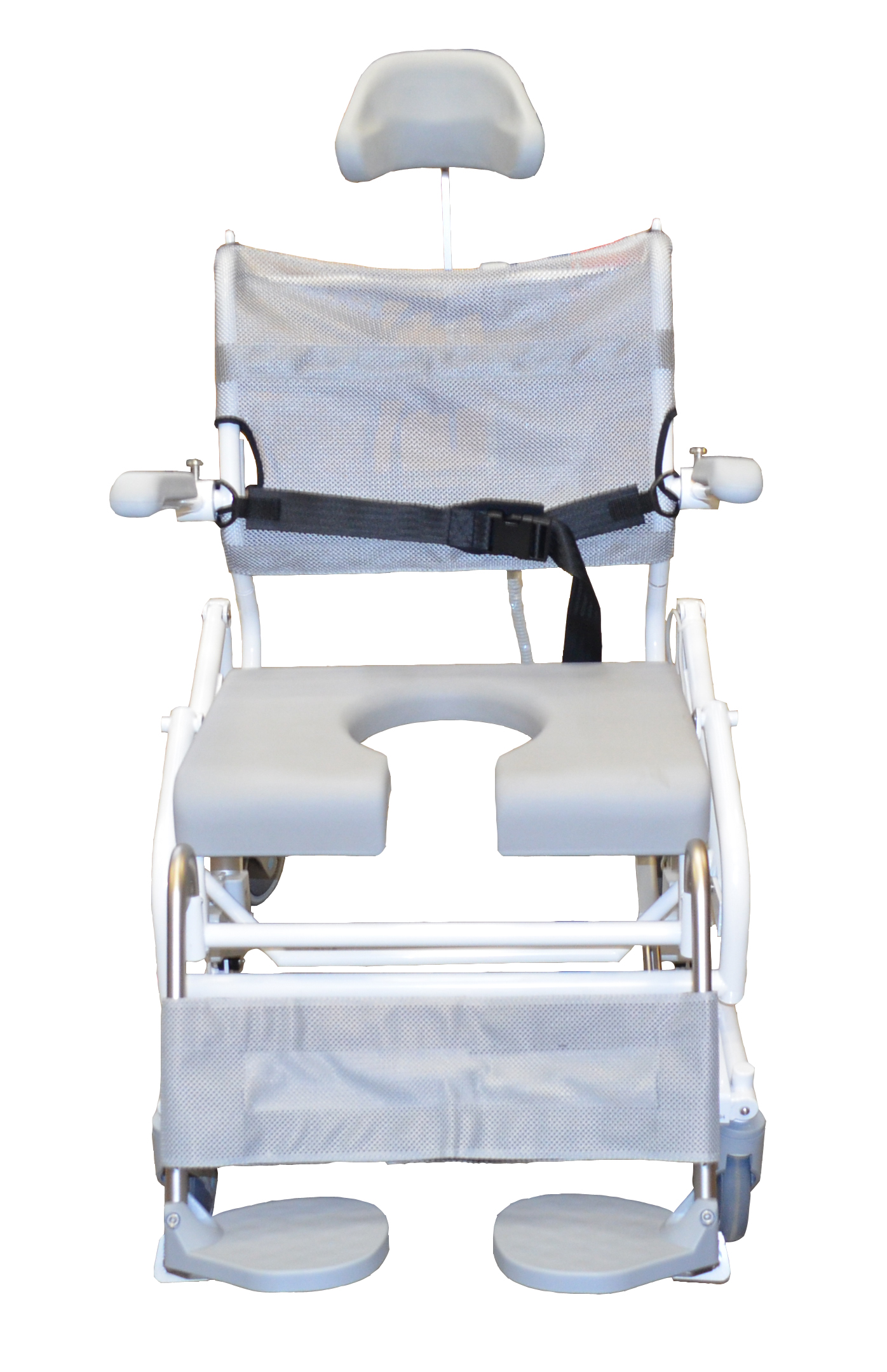

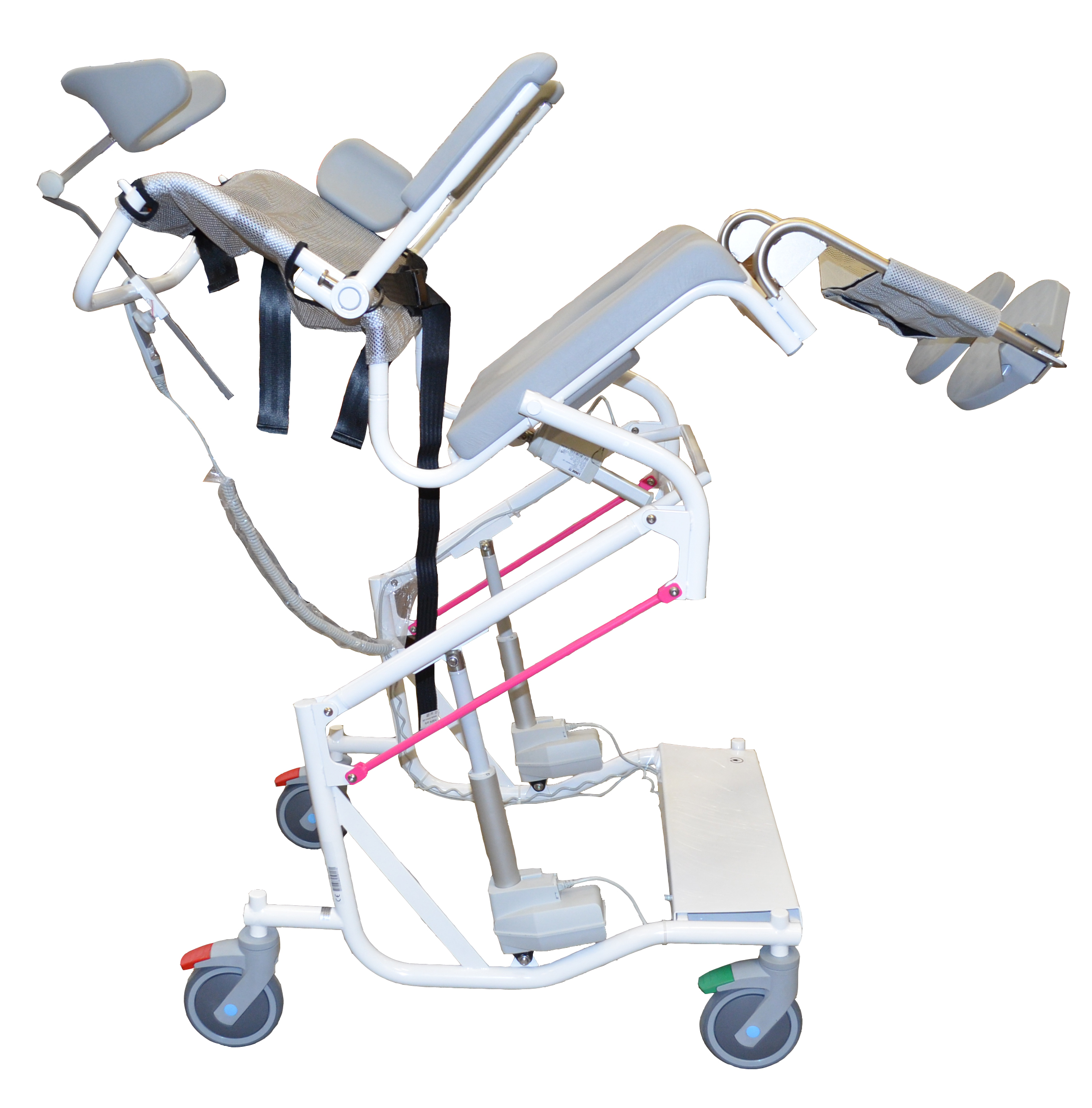

Bariatric shower/commode chair M2 Multi-Tip Big
Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions
The product series includes 3 products of which 1 product is discontinued.
Product 1 of 3
M2 Multi-Tip Big 250 kg
HMI-no.
132397
Article-no.
310813
Registration date
04-04-2022
Last updated
26-11-2024
Properties
Possibility to change position of armrest to allow sideways transfer
Ja, opklappelige
Properties
Height adjustable
Elektrisk
Properties
Number of wheels with brake
4
Properties
Ingress protection class for water
IPX6
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
No
Emergency stopping function
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Removable legrests
Yes
Pivoting legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
250
kg
Total width
87
cm
Ground clearance
49
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
70
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
23
cm
Seat height, min
59
cm
Seat height, max
95
cm
Tilt-in-space forward
6.5
°
Measured from the horizontal position.
Tilt-in-space back
35
°
Measured from the horizontal position.
Wheel diameter
150
mm
Height of push handles/push bar, min.
107
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
149
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: Test Laboratory ELTEST.. Test date: 21-01-2022
Test report for HMI-no. 132397
Test lab: Test Laboratory ELTEST.. Test date: 21-01-2022
Test report for HMI-no. 132397EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 3
M2 Multi-tip BIG 300 kg.
The product was discontinued from HMN a/s 29-03-2022HMI-no.
132336
Article-no.
310813
Registration date
25-03-2022
Last updated
26-11-2024
Properties
Number of wheels with brake
4
Properties
Ingress protection class for water
IPX6
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
No
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Removable legrests
Yes
Pivoting legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
300
kg
Total width
87
cm
Ground clearance
49
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
70
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
23
cm
Seat height, min
54
cm
Seat height, max
100
cm
Tilt-in-space forward
6.5
°
Measured from the horizontal position.
Tilt-in-space back
35
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
150 mm wheels
Product 3 of 3
M2 Multi-Tip Big, 200 kg, with horseshoe seat, Boxed
HMI-no.
106723
Article-no.
310804-B
Registration date
10-10-2017
Last updated
26-11-2024
Properties
Possibility to change position of armrest to allow sideways transfer
Nej, ikke muligt
Properties
Height adjustable
Elektrisk
Properties
Number of wheels with brake
3
Properties
Ingress protection class for water
IPX6
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
No
Emergency stopping function
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Removable legrests
Yes
Pivoting legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
200
kg
Total width
69.5
cm
Ground clearance
94
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
56.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
44
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
22
cm
Seat height, min
57
cm
Seat height, max
99
cm
Tilt-in-space forward
7
°
Measured from the horizontal position.
Tilt-in-space back
35
°
Measured from the horizontal position.
Wheel diameter
125
mm
Height of push handles/push bar, min.
107
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
149
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: Test Laboratory ELTEST. Test date: 21-01-2022Test report for HMI-no. 106723
Test lab: Test Laboratory ELTEST. Test date: 21-01-2022
Test report for HMI-no. 106723EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
