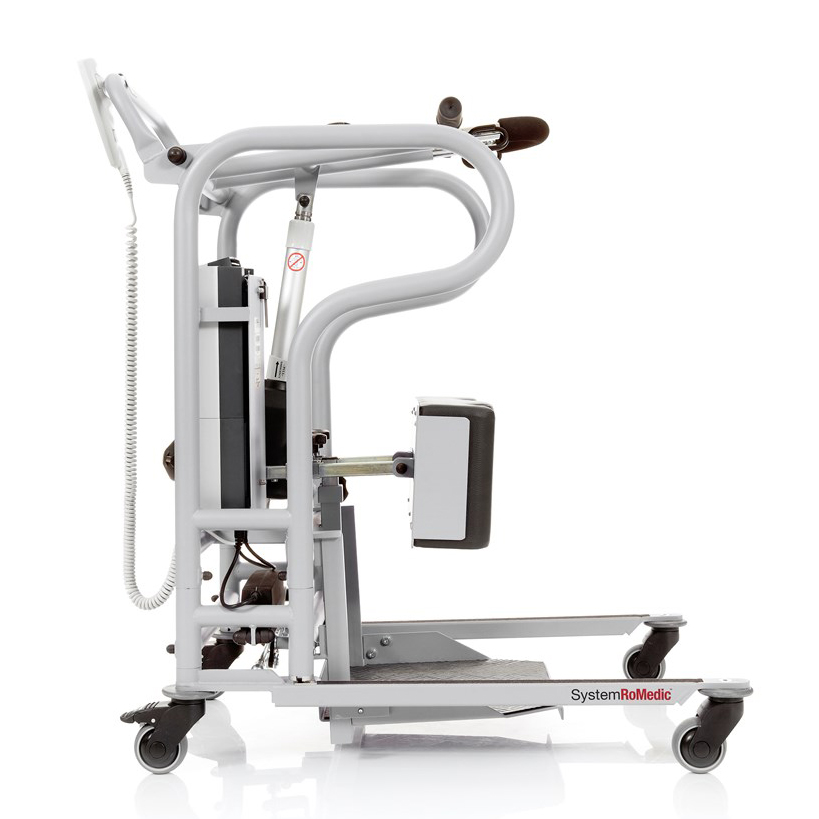

MiniLift 125




Classification
12 36 04 01 - Mobile hoists for transferring a person in standing position

Documents
User manual


The product series contains 1 product.
The product series also includes 2 discontinued products. Include discontinued products.

Product 1 of 1
MiniLift 125


HMI-no.
19581
Article-no.
400641434

Registration date
08-01-1998
Last updated
17-10-2024

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet
Electrical lifting mechanism
Yes
Leg support adjustable in height
Yes
Leg support horizontal adjustable
Yes
Leg support adjustable without tools
Yes
Split leg support
Yes
Foldable
No
Can be disassembled without tools
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes
Unit for use with sling(s) available
Yes

Measures
User weight, max
125
kg
Lifting height, max
143.5
cm
Internal width of base, max
74.5
cm
External width of base in the most narrow position
60
cm
Height of base at front
12.1
cm
Turning diameter
100
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
5
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking info
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
