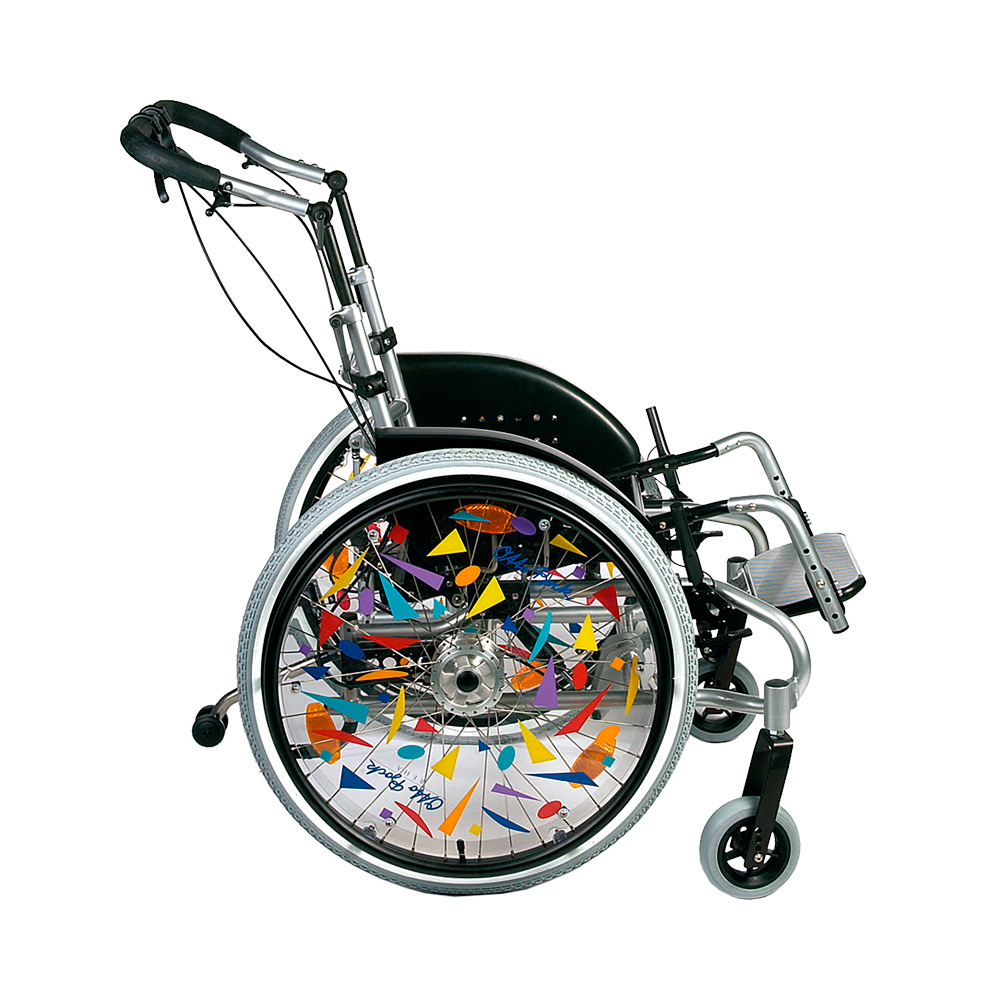

Dino 3, wheelchair chassis for individual orthopedic seating solutions
Easily maneuverable aluminium chassis for indoor and outdoor use with most individual orthopedic seating solutions. For indoor and outdoor use. With height adjustable push bar and seat tilt. Accessories include individualized foot rest solutions, side panels and wheel types. Also supplied in a long version for large seat depth. Crash-tested.
Classification
12 22 18 06 - Frames for wheelchairs
Documents
BrochureThe product series contains 4 products.
Product 1 of 4
Dino 3 - size 0
HMI-no.
50304
Article-no.
840000003503
Registration date
18-11-2008
Last updated
17-10-2024
Properties
Can be subsequently equipped with propulsion unit
No
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
55.5
cm
The narrowest possible configuration.
Total length
100
cm
Weight
18.5
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
120
kg
Including seat, accessories, and person.
Height, min
43
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
48
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 4
Dino 3 - Size 1
HMI-no.
32356
Article-no.
840000003504
Registration date
27-05-2002
Last updated
17-10-2024
Properties
Can be subsequently equipped with propulsion unit
No
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
61.5
cm
The narrowest possible configuration.
Total length
100
cm
Weight
18.5
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
120
kg
Including seat, accessories, and person.
Height, min
43
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
48
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 3 of 4
Dino 3 - Size 2
HMI-no.
32671
Article-no.
840000003505
Registration date
04-07-2002
Last updated
17-10-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
65.5
cm
The narrowest possible configuration.
Total length
100
cm
Weight
18.5
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
120
kg
Including seat, accessories, and person.
Height, min
43
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
48
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 4 of 4
Dino 3 - Size 3
HMI-no.
32672
Article-no.
840000003506
Registration date
04-07-2002
Last updated
17-10-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
69
cm
The narrowest possible configuration.
Total length
100
cm
Weight
18.5
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
120
kg
Including seat, accessories, and person.
Height, min
43
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
48
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
