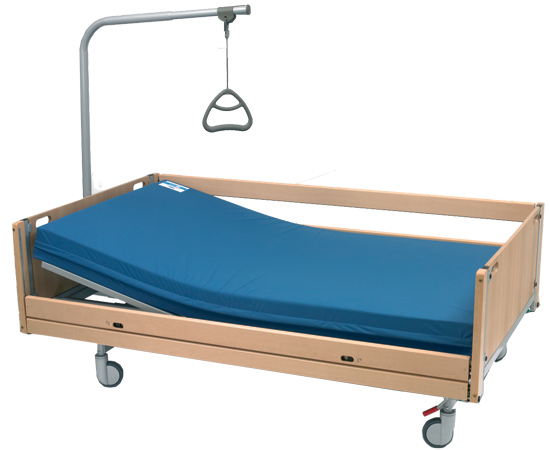

Invacare Octave

With a SWL up to 385 kgs, the Invacare Octave is a state-of-the-art profiling carebed solution that assists in the care and comfort of bariatric clients. With a fully electrical 4- sectioned mattress support as standard, the Octave provides optimal comforlasse.

Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated



The product series contains 1 product.

Product 1 of 1
Octave

Octave is a carebed solution that assists in the care and comfort of bariatric clients. SWL 350 kg

HMI-no.
40409
Article-no.
OCTAVE.A2EB1.M1

Registration date
21-04-2005
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension No
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system No
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section Yes
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 221 cm
Outside measure width 119 cm
Mattress size, length 205 cm
Mattress size, width 116 cm
Load, max 385 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 350 kg
Weight of heaviest main part 72 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 40 cm info
Measured without mattress
Mattress support platform, height above floor, max 80 cm info
Measured without mattress
Internal length 210 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU
