Arjo, Maxi Twin - The Innovative Twin-Mast Lifter
The twin-mast design distributes the weight evenly, and the large handholds enable caregivers to manoeuvre the lifter. The open mast design also provides additional legroom for the patient. Integrated within the spreader bar a powered dynamic positioning system (PDPS) can help reposition the patient in the sling, minimising manual handling.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
User manualThe product series contains 2 products.
Product 1 of 2

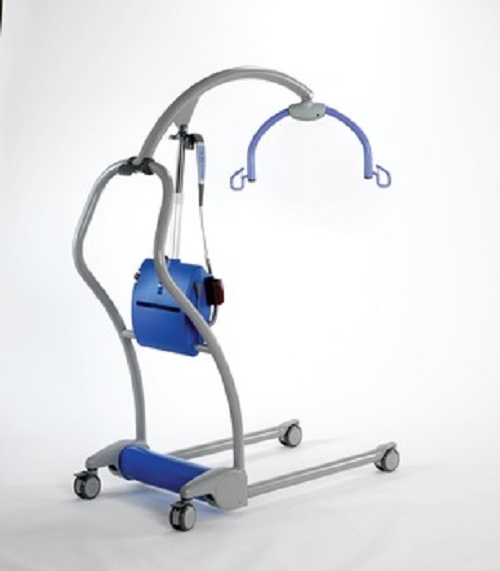

Arjo, Maxi Twin lift for loopslings
HMI-no.
43080
Article-no.
KTBB2ESX2WW
Registration date
31-03-2006
Last updated
11-01-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
No
Can lift from floor level
No
Standing mobile hoist unit available
No
Integrated battery charger
No
Emergency lowering function
Yes
Measures
User weight, max
182
kg
Internal width of base, max
51.8
cm
Measured with the base in the widest position
External width of base in the most narrow position
75.5
cm
Height of base at front
11.3
cm
Turning diameter
144.4
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
46.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
MAXI TWIN FLOORLIFT with 2-point loop bar (medium). Complete with two batteries, charger, Standard castors. Choose loopslings.
Product 2 of 2

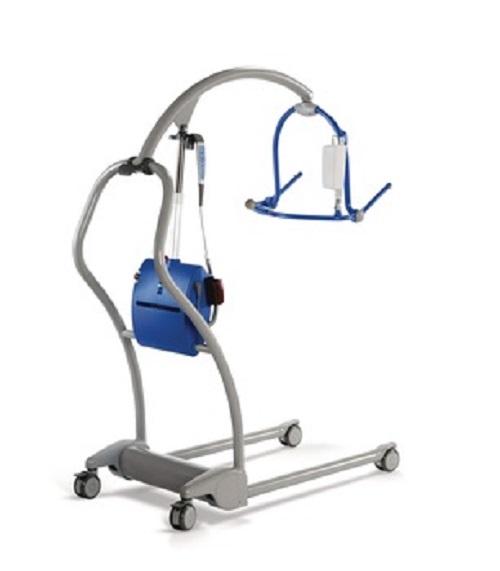

Arjo, Maxi Twin lift with PDPS (Powered dynamic positioning system)
HMI-no.
108777
Article-no.
KTBB4BSX2WW
Registration date
19-03-2018
Last updated
11-01-2024
Properties
Width adjustment of base
Ja, elektrisk
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
No
Emergency lowering function
No
Measures
User weight, max
182
kg
Internal width of base, max
137
cm
Measured with the base in the widest position
External width of base in the most narrow position
75.5
cm
Height of base at front
11.5
cm
Turning diameter
144.4
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
42
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
MAXI TWIN FLOORLIFT with 4-point powered dynamic positioning system PDPS (medium). Complete with 2 batteries, charger, Standard castors. Choose clip slings.
