Excellent Ramp System, Kerb

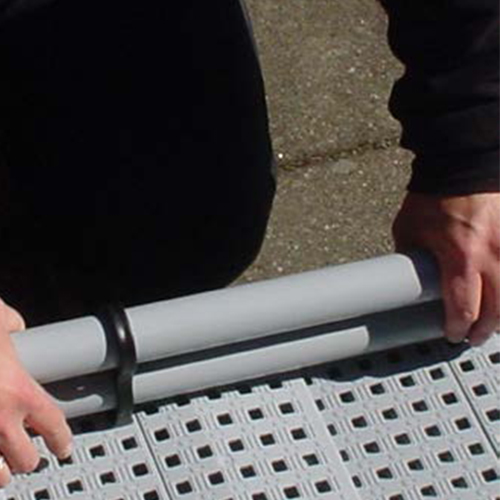

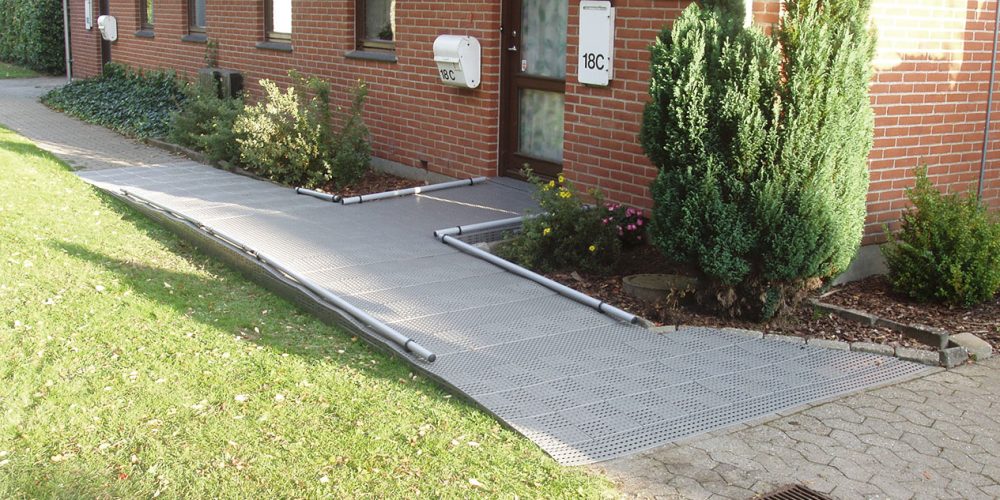

Our ramp system allows for the construction of higher ramps. Kerbs are installed when a kerb is needed to prevent a wheel of a wheelchair or walker from sticking out over the side.

Classification
18 30 18 02 - Component parts for fixed ramps

Documents
Brochure
User manual


The product series contains 5 products.

» Summarize specifications

Product 1 of 5
Excellent Ramp System, K-drill


HMI-no.
45101
Article-no.
17150

Registration date
18-12-2006
Last updated
08-04-2025

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking

Other specifications
Used to center the hole in the K-pipe for mounting the K-end stop. Dimension of flat drill Ø 3 cm. Drill cup U/Ø 5x10 cm.


Product 2 of 5
Excellent Ramp System, K-lock 1 30 pcs.


HMI-no.
45098
Article-no.
17120

Registration date
18-12-2006
Last updated
08-04-2025

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 45098

Other specifications
Used to connect 1 layer of K-pipes on top of tiles/ramps. For assembly, a minimum of 2 layers of modules in height are required.


Product 3 of 5
Excellent Ramp System, K-lock-2 30 pcs.


HMI-no.
45099
Article-no.
17130

Registration date
18-12-2006
Last updated
08-04-2025

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 45099

Other specifications
Used to connect 2 layers of K-pipes on top of tiles/ramps. For assembly, a minimum of 3 layers of modules in height are required.


Product 4 of 5
Excellent Rampe System, Kerb


HMI-no.
45095
Article-no.
17100

Registration date
18-12-2006
Last updated
08-04-2025

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 45095

Other specifications
The K-system is built on top of the ramp as an edge starting with a height of 5 cm (K-1) increasing to 10 cm (K-2). A length is 200 cm.


Product 5 of 5
Excellent RampeSystem, K-endstop 100 pcs.


HMI-no.
45100
Article-no.
17140

Registration date
18-12-2006
Last updated
08-04-2025

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 45100

Other specifications
Provides soft termination at the end of K-tubes.
