R82 High-low outdoor frame with power - frame for x:panda
The frame is a robust frame which is available in the color black. It is height and angle adjustable with power. The many adjustment options and the large accessory program make it possible to adapt the chair exactly to the childs needs for comfort and support. Also available with gas spring and as an indoor model
Classification
12 22 18 06 - Frames for wheelchairs
The product series contains 2 products.
The product series also includes 6 discontinued products. Include discontinued products.
Product 1 of 2
High-low:xo outdoor frame w. power, size 1, frame for x:panda
HMI-no.
133641
Article-no.
3189110132
Registration date
05-09-2022
Last updated
09-12-2024
Properties
Can be subsequently equipped with propulsion unit
No
Can be mounted on a stair climber
No
Intended for fastening in a car
No
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
No
Outdoor use
Yes
Push handles
Yes
Measures
Total width
66
cm
The narrowest possible configuration.
Total length
80
cm
Weight
22
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
70
kg
Including seat, accessories, and person.
Height, min
35
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
60
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
10
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 133641Other specifications

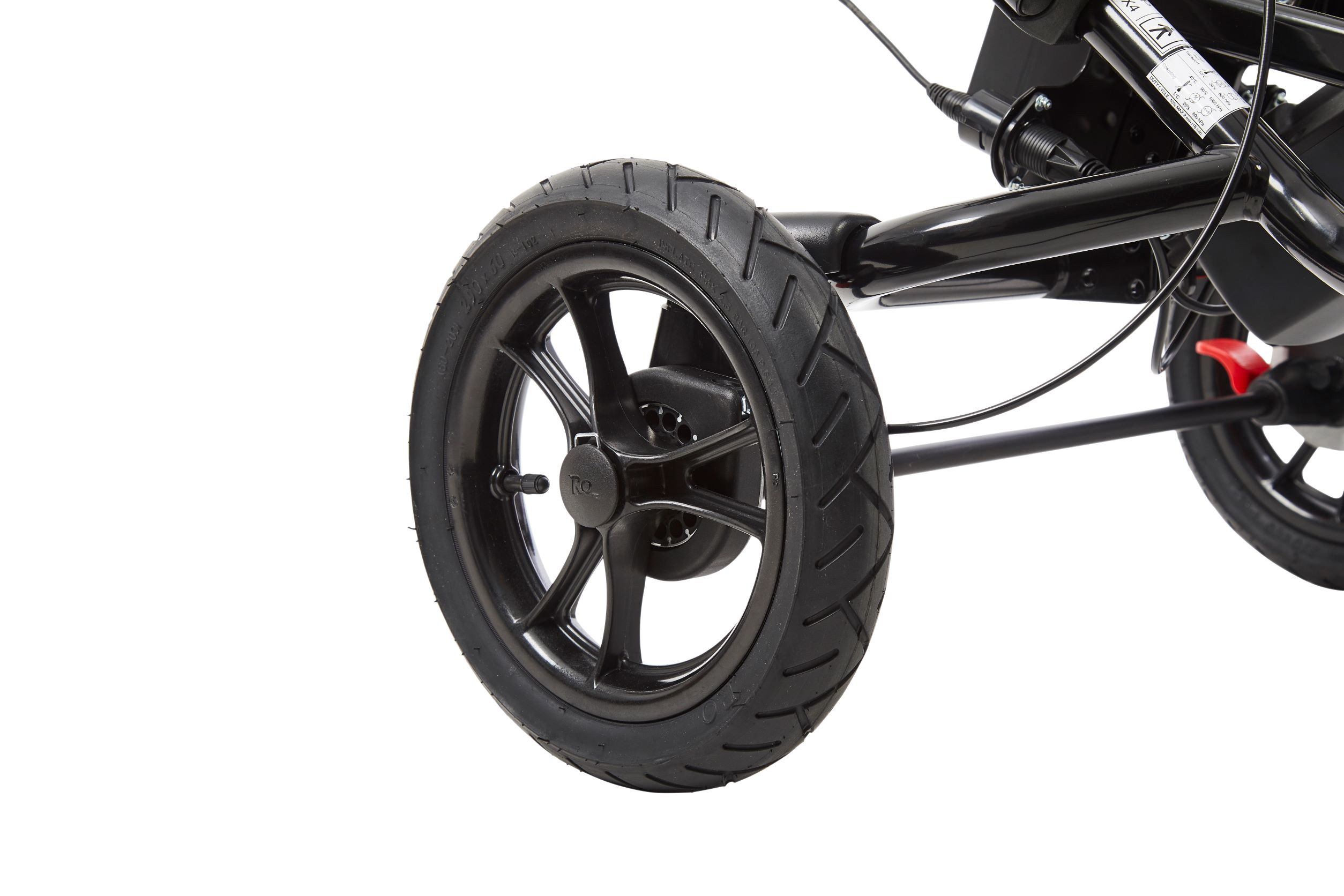

The frame has 7.5 inch front wheels and 12.5 inch rear wheels, lift/tilt for push bar, used for x:panda size. 1-2 and x:panda shape size 1.
The lift is located at the foot pedal.
The lift is located at the foot pedal.
Product 2 of 2
High-low:xo outdoor frame w. power, size 2, frame for x:panda
HMI-no.
133642
Article-no.
3189120132
Registration date
05-09-2022
Last updated
09-12-2024
Properties
Can be subsequently equipped with propulsion unit
No
Can be mounted on a stair climber
No
Intended for fastening in a car
No
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
No
Outdoor use
Yes
Push handles
Yes
Measures
Total width
70
cm
The narrowest possible configuration.
Total length
80
cm
Weight
25
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
75
kg
Including seat, accessories, and person.
Height, min
35
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
60
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
10
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 133642Other specifications
The frame has 7.5 inch front wheels and 12.5 inch rear wheels, lift/tilt for push bar, used for x:panda size. 1-2 and x:panda shape size 1.
The lift is located at the foot pedal.
The lift is located at the foot pedal.
