Olaf 135 high cot




Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated



The product series contains 1 product.

Product 1 of 1

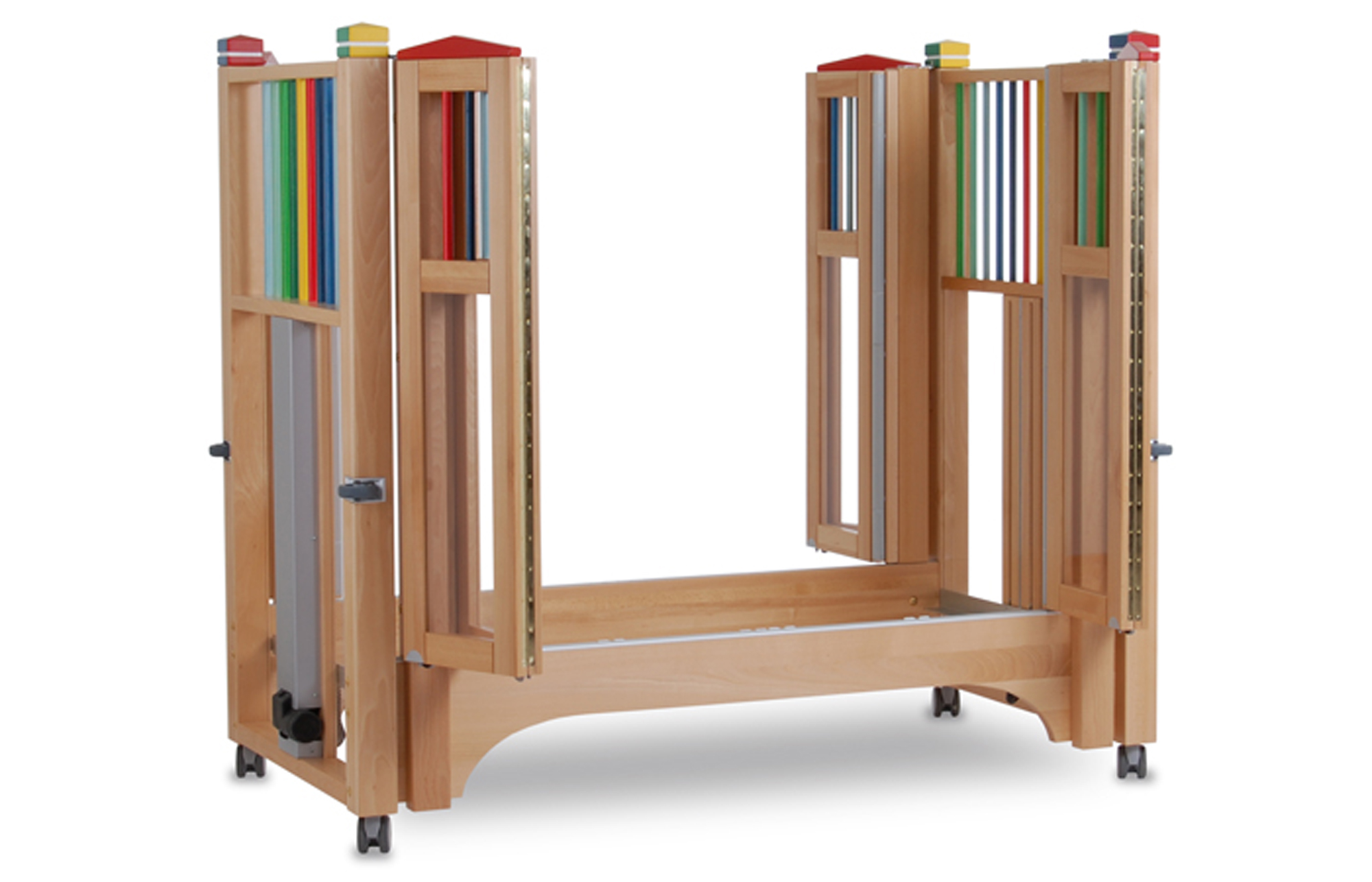

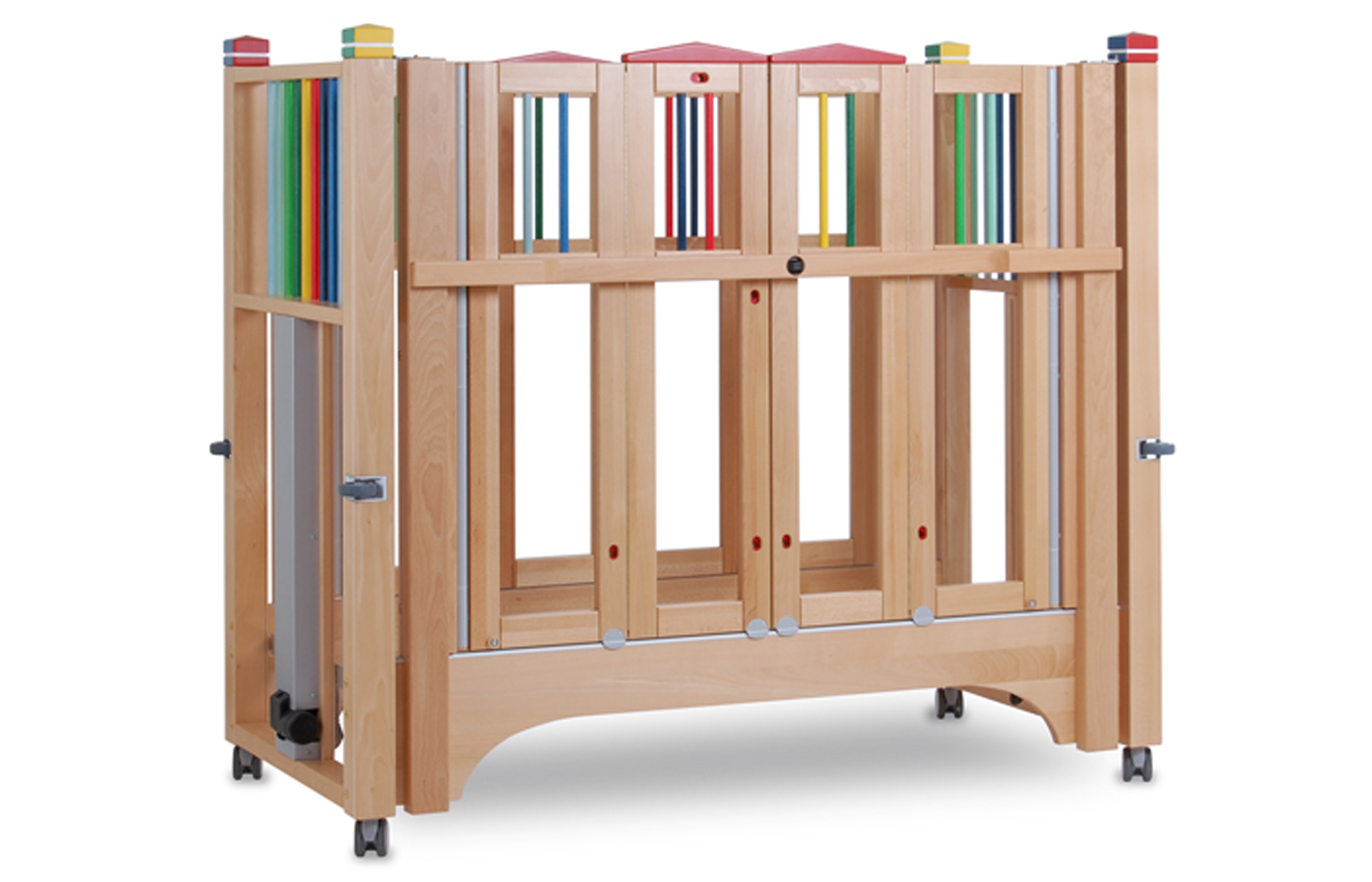

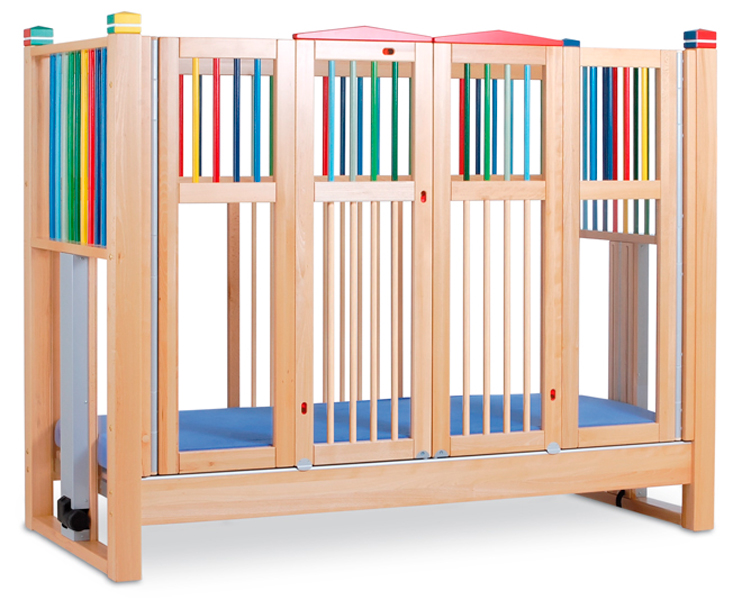

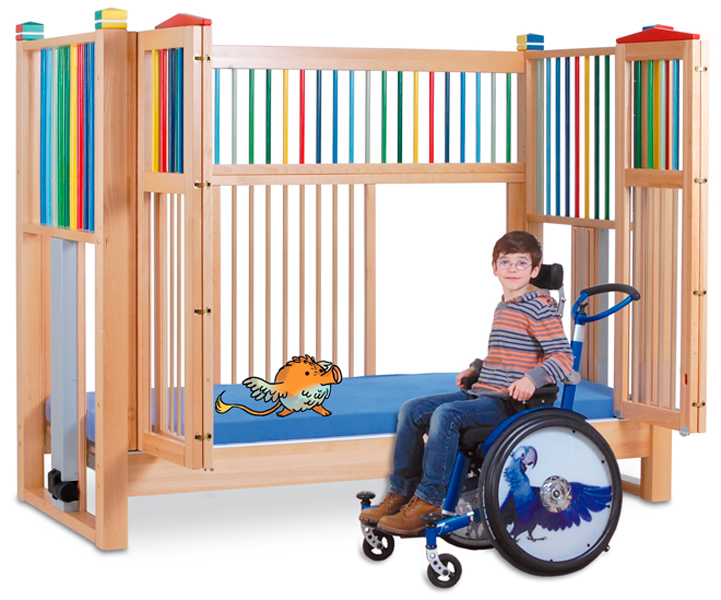

Olaf 135 high cot, 200 x 90 cm with adjustable platform


HMI-no.
47527
Article-no.
KBOLAF

Registration date
20-12-2007
Last updated
29-11-2019

Specifications
Intended for children Yes  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Outside measure length 215 cm
Outside measure width 105 cm
Mattress size, length 200 cm
Mattress size, width 90 cm
Load, max 170 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 135 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Ingress protection class for water 4 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Built-in bed extension No
Intended for use in hospitals No
Intended for use in a domestic area Yes
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 105 cm info
Measured without mattress
Internal length 200 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 16 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Central braking system No
Wheel diameter 10 cm
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails No
Removable self-lifting rail Yes
Removable foot board No
Removable head board No
Heigh cot sides Yes  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section Yes
Trendelenburg, manual operation No
Trendelenburg, electrical operation Yes
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation Yes

Test information
EN 1970:2000: Adjustable beds for disabled persons - Requirements and test methods.
Test lab: Berlin CERT. Test date: 08-08-2006
