All product information is provided by the supplier. The National Board of Social Services is not responsible for either contents, origin, flaws and deficiencies, or any kind of damage that may occur from the use of the information. The National Board of Social Services has no authority to endorse products and does not assess the quality of the products. Hide this message.

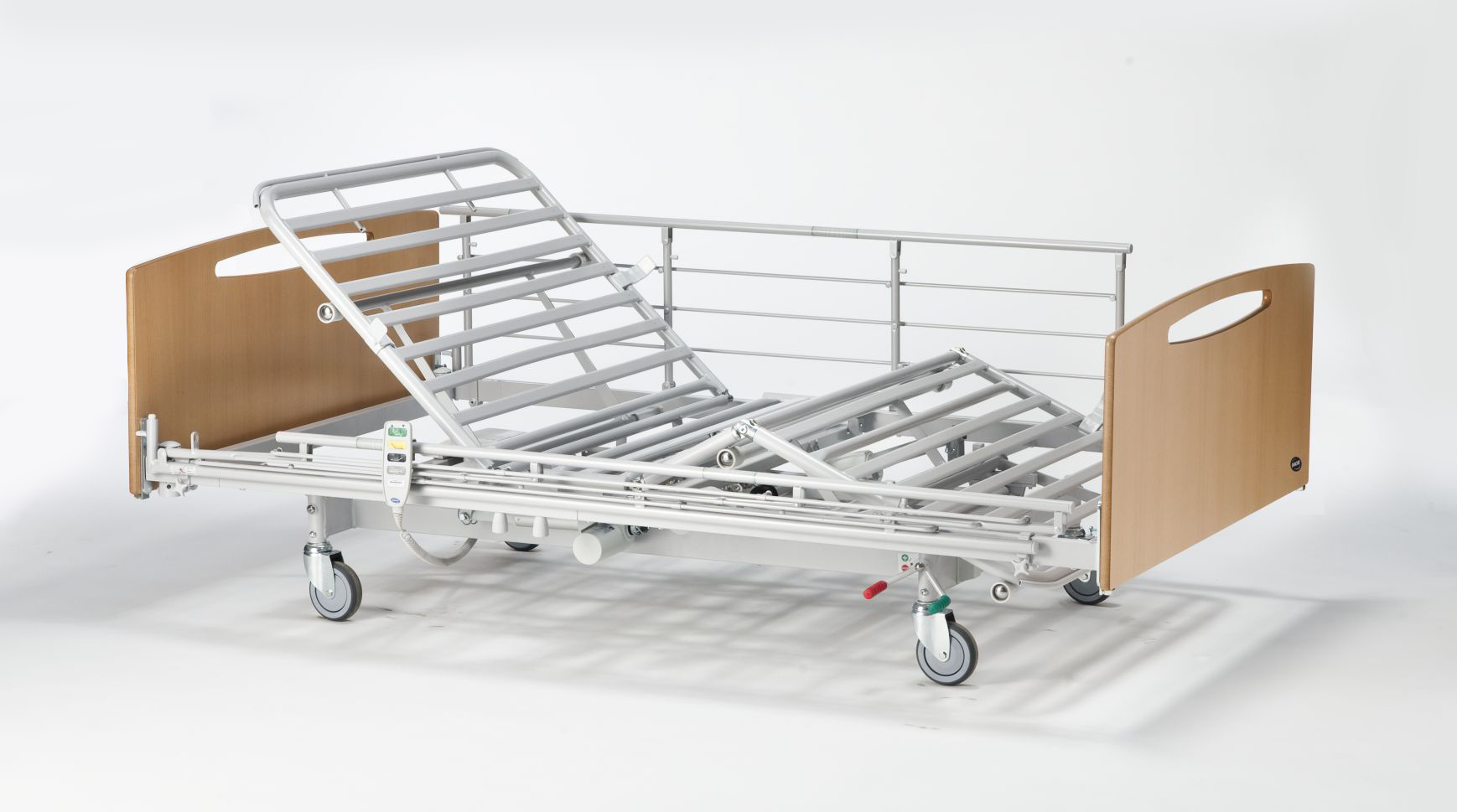

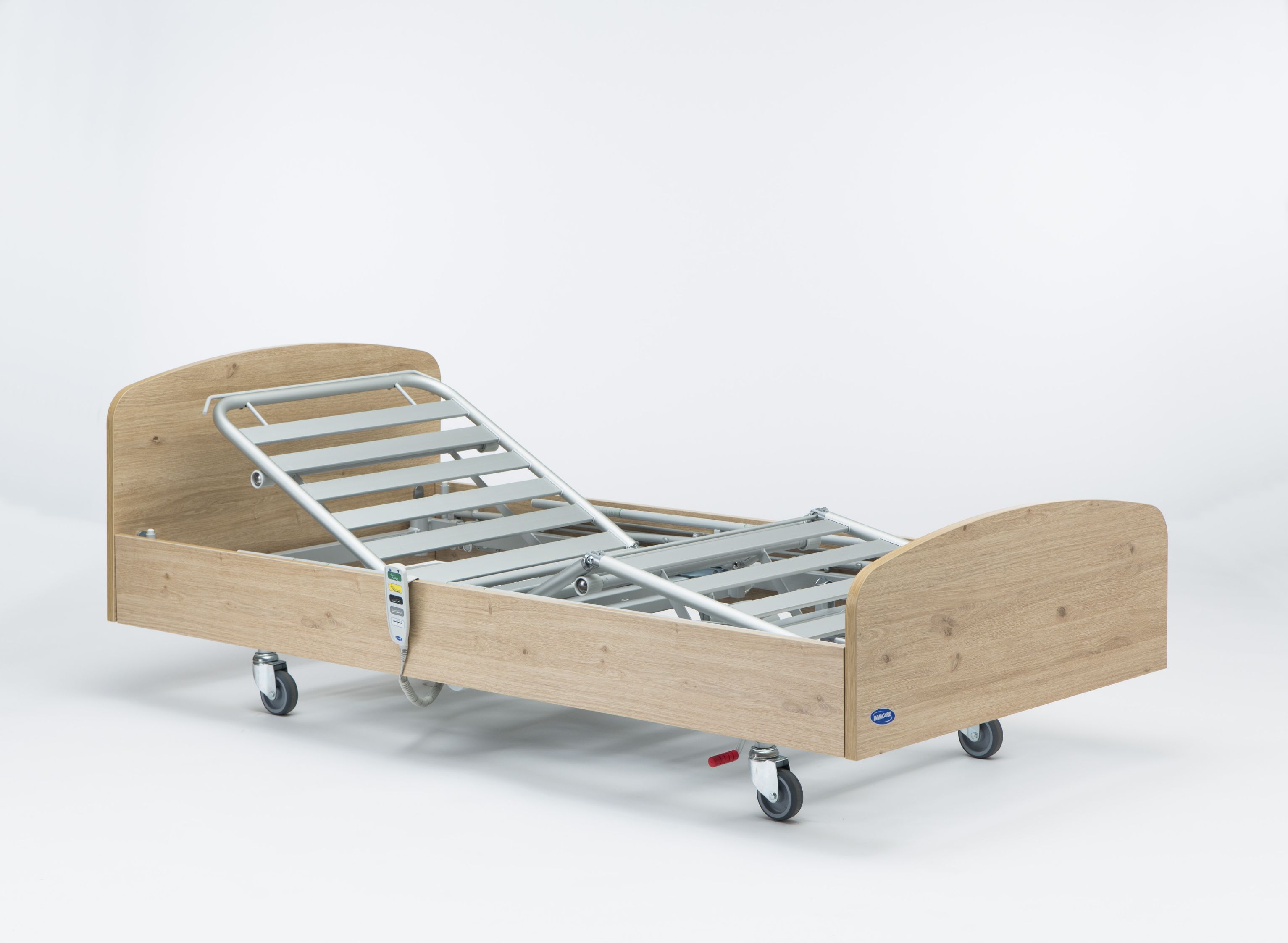

SB 755D is ideal for all homecare and institutional environments. SB 755D offers optimum comfort with an ideal seating positioning. Caregivers can adjust the bed to meet individual user requirem.. Unique feature allowes SB 755D to be adapt. taller users. Both the head and foot end can be extended. No part of the SB 755D weighs more than 25.

Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated



The product series contains 18 products.
The product series also includes 10 discontinued products. Include discontinued products.

Product 1 of 18
SB 755 w/4 actuators, alu slats, washable, new el.

Digital version with a better functionality and improved washability

HMI-no.
120201
Article-no.
3000755-42D53UC7P0

Registration date
15-11-2019
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 100 cm
Mattress size, length 200 cm
Mattress size, width 90 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 03-02-2015

CE-marking
Medical Device Regulation (MDR) - 2017/745/EU


Product 2 of 18
SB 755 w/4 actuators, alu slats, washable, new el.

Digital version with a better functionality and improved washability

HMI-no.
120202
Article-no.
3000755-32D53UC7P0

Registration date
15-11-2019
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 95 cm
Mattress size, length 200 cm
Mattress size, width 85 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 03-02-2015

CE-marking
Medical Device Regulation (MDR) - 2017/745/EU


Product 3 of 18
SB 755, w/4 actuators, alu slats, detach. under frame

SB 755D, alu slats, centr. Brakes, std. control, detach.underframe

HMI-no.
49988
Article-no.
3000755.32D35CC1P0

Registration date
06-10-2008
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 95 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 4 of 18
SB 755, w/4 actuators, alu slats, detach. under frame

SB 755D, alu slats, centr. Brakes, std. control, detach.underframe

HMI-no.
50923
Article-no.
3000755.42D35CC1P0

Registration date
25-02-2009
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 5 of 18
SB 755D w/4 actuators, alu slats, detach.underfr. U-Profil

SB 755D,alu slats, detach.underframe, U-Profil, std. control, wheel with direction control

HMI-no.
83908
Article-no.
3000755.42D55CD1P0

Registration date
09-04-2014
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides Yes  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV SÜD. Test date: 03-02-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 6 of 18
SB 755D w/4 actuators, alu slats, detach.underframe and washable

SB 755D, alu slats, detach. underframe, std. control and washable electronic

HMI-no.
106068
Article-no.
3000755-32D33NC7P0

Registration date
23-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 94 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 7 of 18
SB 755D w/4 actuators, alu slats, detach.underframe and washable

SB 755D, wooden slats, detach. underframe, std. control and washable electronic

HMI-no.
106070
Article-no.
3000755-33D33NC7P0

Registration date
23-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 94 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 8 of 18
SB 755D w/4 actuators, alu slats, detach.underframe and washable

SB 755D, alu slats, detach.underframe, std. control and washable electronic

HMI-no.
106072
Article-no.
3000755-42D33NC7P0

Registration date
23-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 9 of 18
SB 755D w/4 actuators, alu slats, detach.underframe and washable

SB 755D, wooden slats, detach.underframe, std. control and washable electronic

HMI-no.
106073
Article-no.
3000755-43D33NC7P0

Registration date
23-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 10 of 18
SB 755D w/4 actuators, alu slats, detach.underframe, U-Prof., washable

SB 755D, alu slats, detach.underframe, U-Profil, std. control and washable electronic

HMI-no.
105785
Article-no.
3000755-42D53NC7P0

Registration date
04-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 11 of 18
SB 755D w/4 actuators, alu slats, detach.underframe, U-Prof., washable

SB 755D, alu slats, detach. underframe, std. control and washable electronic, u-profiles

HMI-no.
105786
Article-no.
3000755-32D53NC7P0

Registration date
04-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 94 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 12 of 18
SB 755D w/4 actuators, alu slats, detach.underframe, U-Prof., washable

SB 755D, wooden slats, detach. underframe, std. control and washable electronic, u-profiler

HMI-no.
106071
Article-no.
3000755-33D53NC7P0

Registration date
23-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 95 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 13 of 18
SB 755D w/4 actuators, alu slats, detach.underframe, U-Profil

SB 755D,alu slats, detach.underframe, U-Profil, std. control

HMI-no.
61039
Article-no.
3000755.32D55CC1P0

Registration date
06-07-2010
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 95 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 14 of 18
SB 755D w/4 actuators, alu slats, detach.underframe, U-Profil

SB 755D,alu slats, detach.underframe, U-Profil, std. control

HMI-no.
61041
Article-no.
3000755.42D55CC1P0

Registration date
06-07-2010
Last updated
03-09-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 15 of 18
SB 755D w/4 actuators, wooden slats, detach. Underframe

SB 755D, wooden slats, Std. Control, detach. Underframe

HMI-no.
50512
Article-no.
3000755.33D35CC1P0

Registration date
06-01-2009
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 95 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 16 of 18
SB 755D w/4 actuators, wooden slats, detach.underframe, U-Profil

SB 755D, wooden slats, centr. brakes, std control, w: 90 cm

HMI-no.
61042
Article-no.
3000755.43D55CC1P0

Registration date
06-07-2010
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 17 of 18
SB 755D w/4 actuators, wooden slats, wheels w. direction contr.

SB 755D, wooden slats, centr. brakes, std control, wheels w. direction control

HMI-no.
62433
Article-no.
3000755.33D35CD1P0

Registration date
03-12-2010
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 95 cm
Mattress size, length 200 cm
Mattress size, width 83 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 25 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU


Product 18 of 18
SB 755D w/4 actuators, woodslats, detach.underframe, U-Prof., washable

SB 755D, wooden slats, detach.underframe, std. control and washable electronic, u-profiles

HMI-no.
106075
Article-no.
3000755-43D53NC7P0

Registration date
23-08-2017
Last updated
19-08-2020
Properties
Ingress protection class for water 6 IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Intended for children No  info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Built-in bed extension Yes
Intended for use in hospitals No
Intended for use in nursing institutions Yes  info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area Yes
Central braking system Yes
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes  info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes  info
Indicates whether back rest and knee bending are adjusted at the same time
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Heigh cot sides No  info
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation No
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation No
Measures
Outside measure length 213 cm
Outside measure width 99 cm
Mattress size, length 200 cm
Mattress size, width 88 cm
Load, max 235 kg info
Maximum external load on the product that is permitted in normal use
User weight, max 200 kg
Weight of heaviest main part 40 kg info
Weight without parts that are detachable without the use of tools
Mattress support platform, height above floor, min 35 cm info
Measured without mattress
Mattress support platform, height above floor, max 82 cm info
Measured without mattress
Internal length 213 cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 17 cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Wheel diameter 12.5 cm

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information.
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: TÜV. Test date: 02-03-2015

CE-marking
Medical devices - 93/42/EEC
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU
