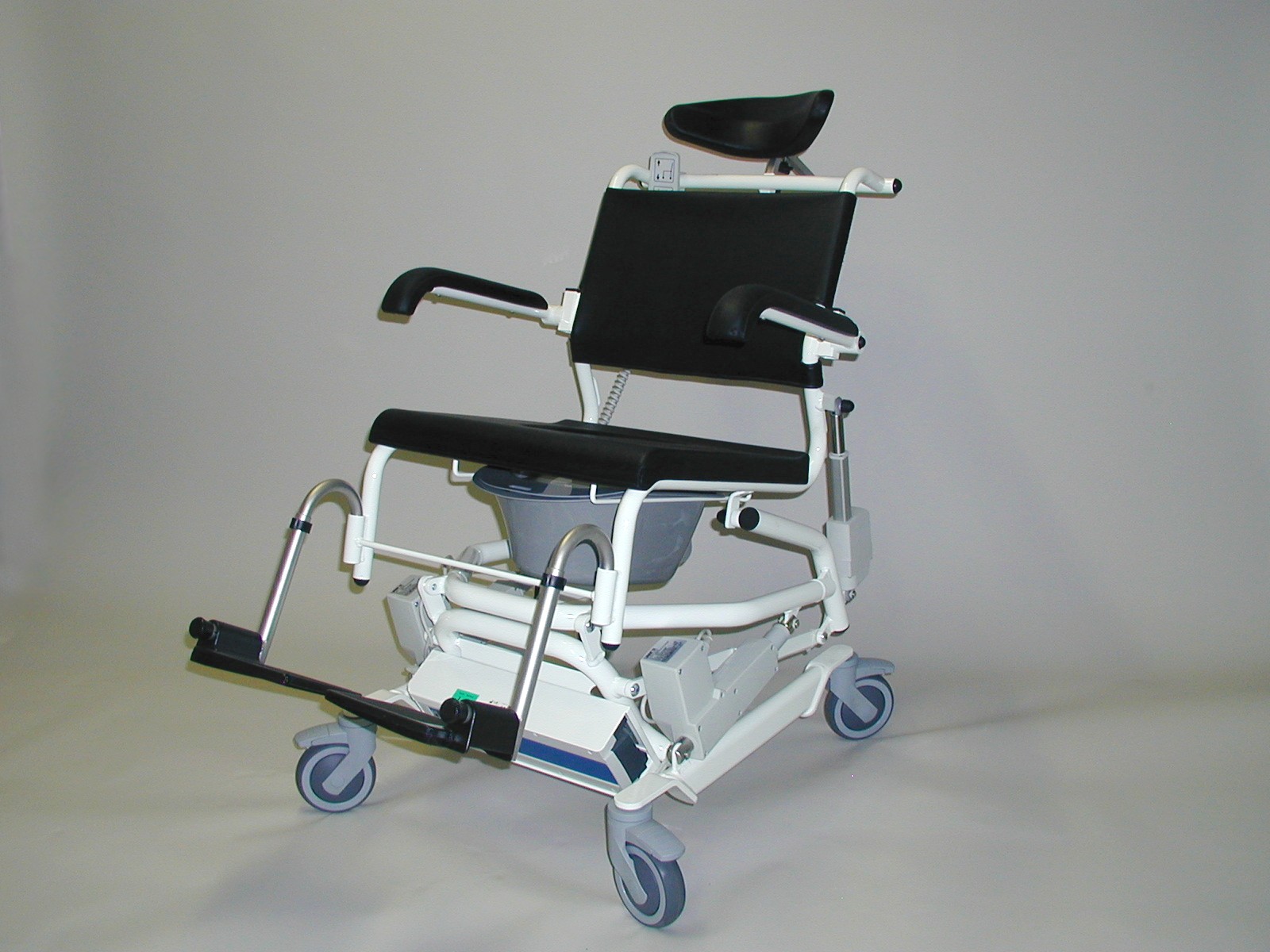

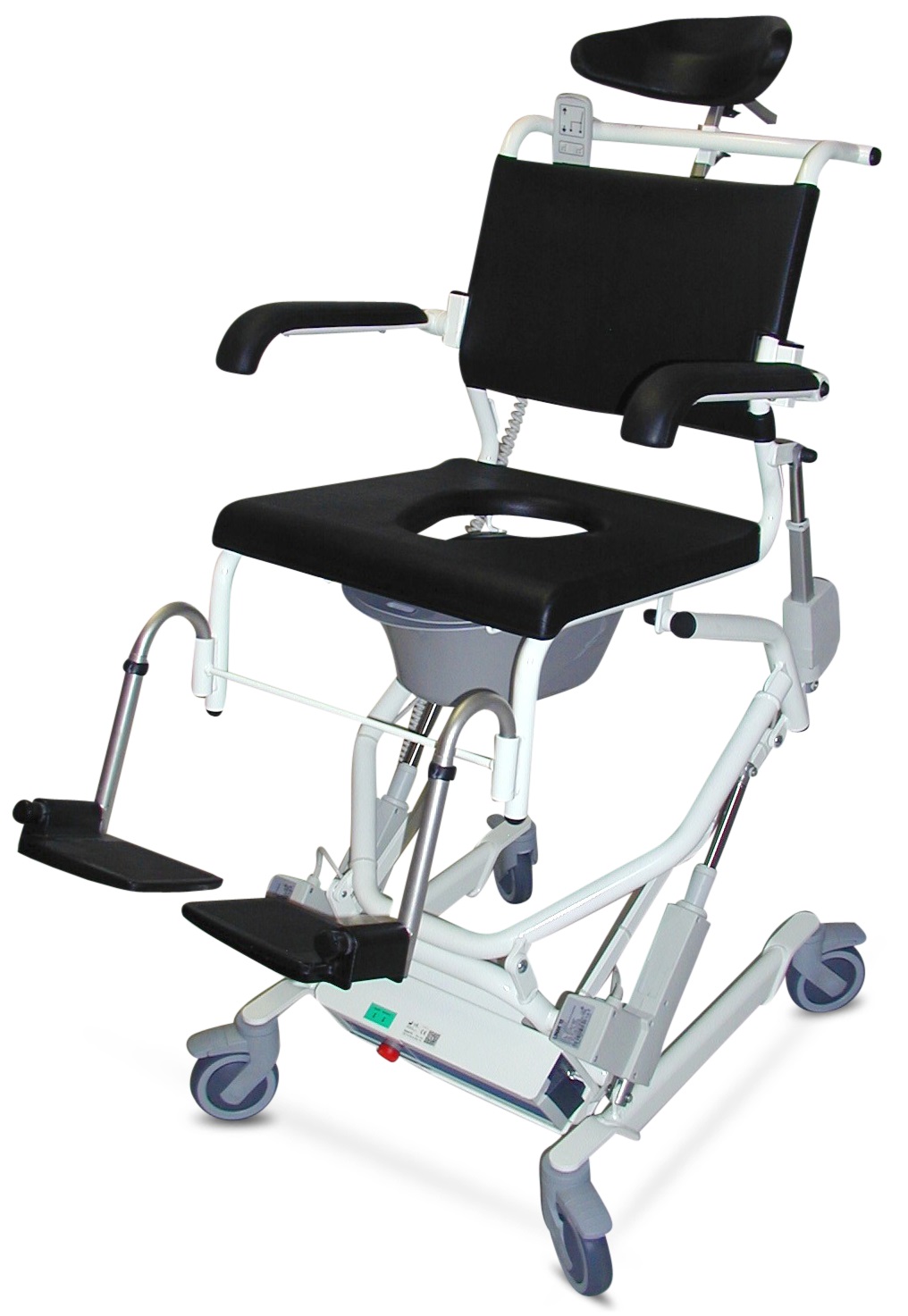

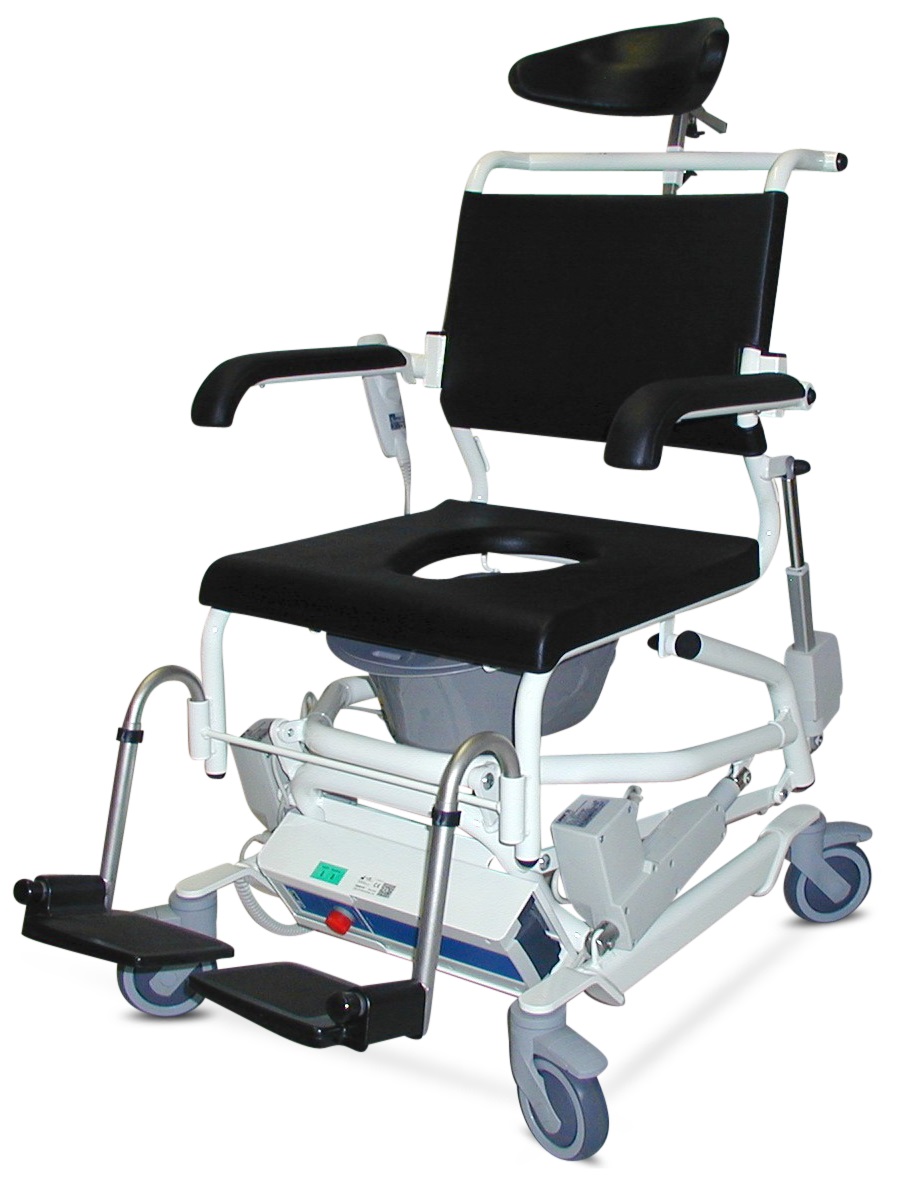

ERGOtip 6 EL Reclining Commode & Shower Chair



The ERGOtip series offers the largest programme of reclining commode & shower chairs w. gas springs or electric actuators. Tip-up arm rests with soft PUR cushions. Adjustable back (and leg) support. Detachable seat (w. closed or open front aperture). Bed pan slides w. pot stop when reclined. Four 125 mm brake castors. A wide range of accessories.

Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions

Documents
Brochure
QuickGuide
Accessories catalogue


The product series contains 1 product.

Product 1 of 1
ERGOTIP 6 EL Commode & Shower Chair, reclining


HMI-no.
50831
Article-no.
50831

Registration date
12-02-2009
Last updated
11-09-2025

Properties
Height adjustable
Elektrisk
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Possibility to change position of armrest to allow sideways transfer
Yes
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
Yes
Emergency stopping function
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
200
kg
Total width
63.5
cm
Ground clearance
47
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
51
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
48
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
125
mm
Number of wheels with brake
4
Seat height, min
55
cm
Seat height, max
93.5
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
35
°
Measured from the horizontal position.
Height of push handles/push bar, min.
103
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
141.5
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
ERGOtip 6 EL has three actuators for heavy duty height adjustment and tilting. Infinite height adjustment ensures good communication between patient and helper - neither looks up to or down upon the other. A detachable PUR seat with open or closed front
