GH3 Lifting module

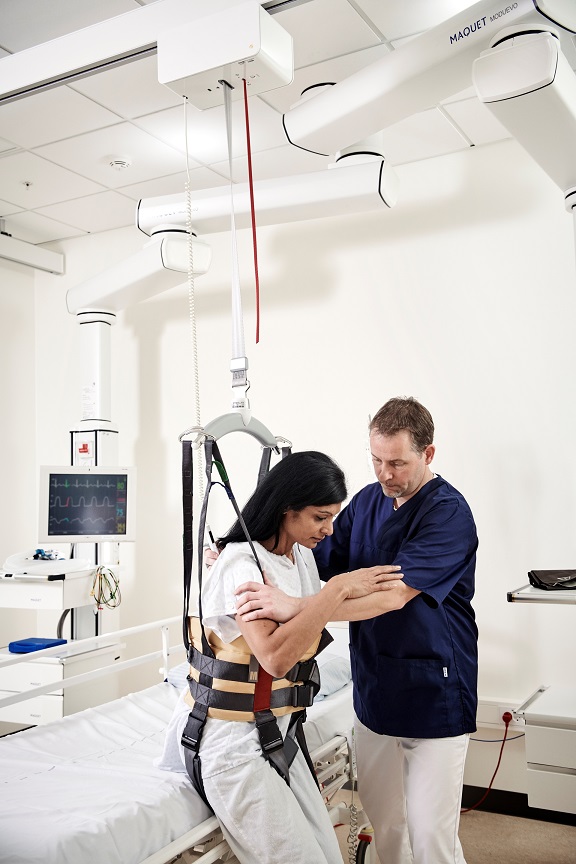

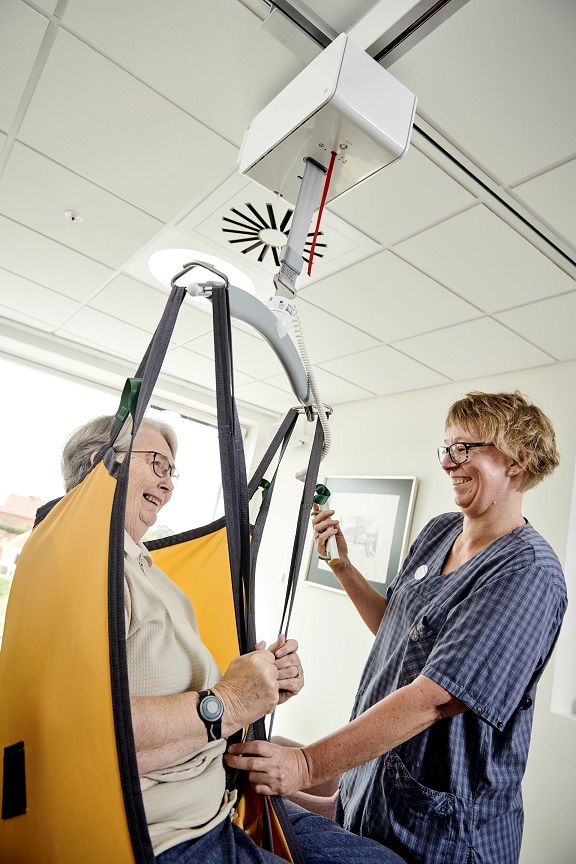

GH3 ceiling mounted system is easy to understand & use. Lifting procedures is done safe & comfortable for all. GH3 with the timeless design can be optimally adapted to individual needs both in terms of function, specifications & investment budget. Can lift up to 350 kg with 1 hanger & 500 kg with 2 straps with a lifting speed up to 60 mm / sec
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
Video
Play videoThe product series contains 20 products.
The product series also includes 19 discontinued products. Include discontinued products.
Product 1 of 20
GH3 200 110 1S
HMI-no.
140234
Article-no.
555972
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140234Product 2 of 20
GH3 200 110 E8
HMI-no.
52440
Article-no.
552103
Registration date
14-07-2009
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 52440Product 3 of 20
GH3 200 110 SG
HMI-no.
69383
Article-no.
554046
Registration date
14-10-2011
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 69383Other specifications
GH3 celing hoist
Configuration:
200 kg user weight, 1 lifting strap, 1 lifting motor, hand controle charging.
Without horizontal drive motor, without CLM module, without integrated weight and without integrated Service Module.
Configuration:
200 kg user weight, 1 lifting strap, 1 lifting motor, hand controle charging.
Without horizontal drive motor, without CLM module, without integrated weight and without integrated Service Module.
Product 4 of 20
GH3 200 112 1
HMI-no.
74344
Article-no.
552100
Registration date
10-12-2012
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 74344Product 5 of 20
GH3 200 112 U9
HMI-no.
140237
Article-no.
556450
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140237Product 6 of 20
GH3 250 110 E8
HMI-no.
54612
Article-no.
552099
Registration date
10-02-2010
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 54612Product 7 of 20
GH3 250 110 SG
HMI-no.
140240
Article-no.
554045
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140240Product 8 of 20
GH3 250 112 1
HMI-no.
140231
Article-no.
552096
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140231Product 9 of 20
GH3 Plus 250 110 EM
HMI-no.
140243
Article-no.
563317
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140243Product 10 of 20
GH3 Plus 250 110 F4
HMI-no.
114885
Article-no.
563367
Registration date
21-02-2019
Last updated
26-11-2024
Properties
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
10.2
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 114885Product 11 of 20
GH3 Plus 250 110 FA
HMI-no.
140252
Article-no.
563349
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140252Product 12 of 20
GH3 Plus 250 110 LK
HMI-no.
140255
Article-no.
563360
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140255Product 13 of 20
GH3 Plus 250 112 1
HMI-no.
85016
Article-no.
563321
Registration date
01-09-2014
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 85016Product 14 of 20
GH3 Plus 300 120 E8
HMI-no.
54617
Article-no.
563330
Registration date
10-02-2010
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
14.2
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 54617Product 15 of 20
GH3 Plus 300 120 EE
HMI-no.
54618
Article-no.
563328
Registration date
10-02-2010
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
14.2
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 54618Product 16 of 20
GH3 Plus 350 110 EM
HMI-no.
140246
Article-no.
563316
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
350
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140246Product 17 of 20
GH3 Plus 350 120 E8
HMI-no.
140228
Article-no.
563324
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
350
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
26.6
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140228Product 18 of 20
GH3 Plus 350 120 FA
HMI-no.
140249
Article-no.
563351
Registration date
12-04-2024
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
No
Charging station at track
No
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
350
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
9.6
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140249Product 19 of 20
GH3 Plus 375 120 E8
HMI-no.
105369
Article-no.
563356
Registration date
29-05-2017
Last updated
26-11-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
375
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
14.2
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 105369Product 20 of 20
GH3 Plus Twin 500 220 0
HMI-no.
54625
Article-no.
563370
Registration date
11-02-2010
Last updated
15-04-2024
Properties
Ingress protection class for water
IPX9
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
500
kg
Max lifting velocity, loaded
0.06
m/s
Weight of lifting machinery
19.2
kg
Min. distance from ceiling to central suspension point
52.7
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
