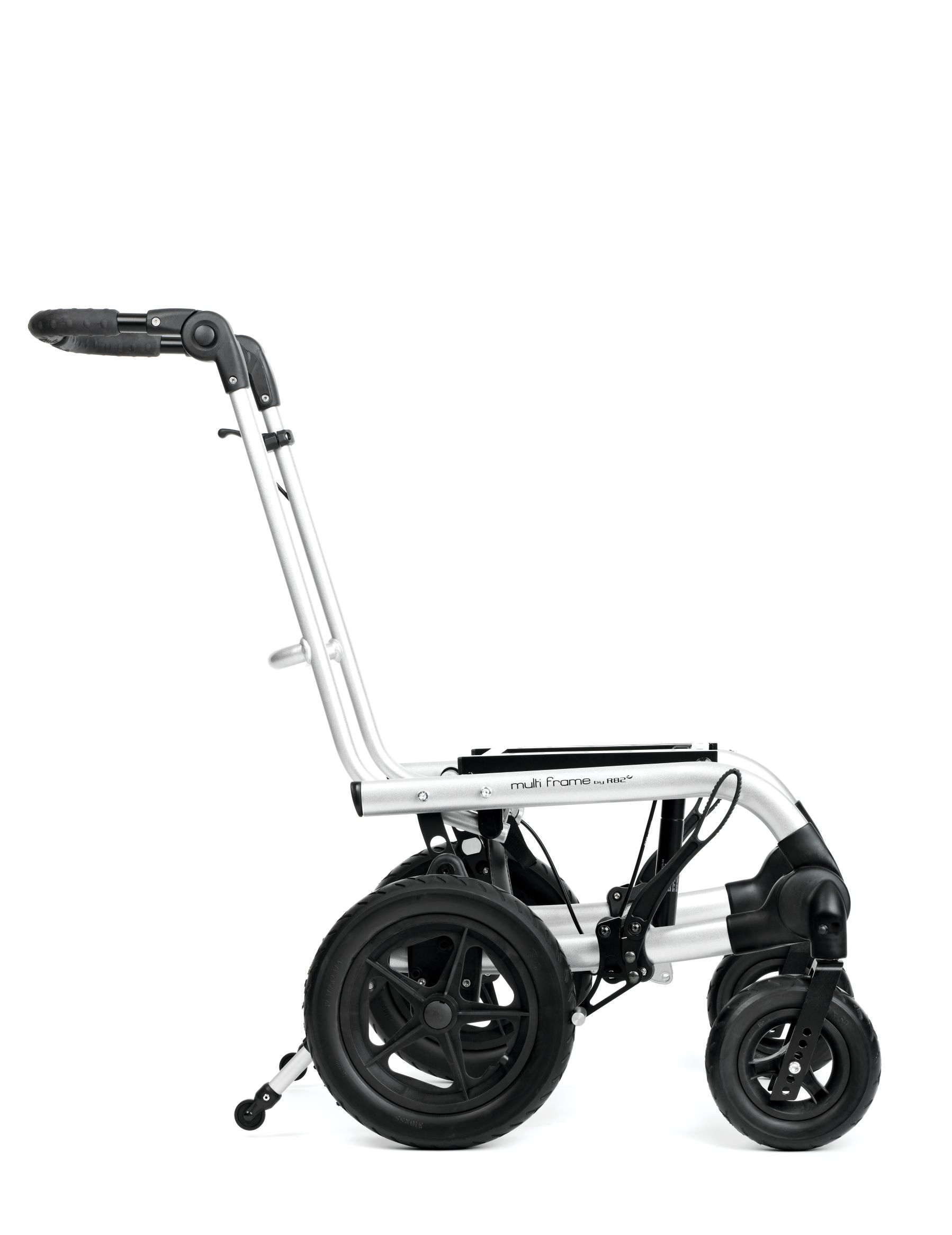

R82 Multi Frame wheelchair frame / base
Seat angle and seat height are easy to adjust and adapt to the user. Multi Frame can be used both indoors and outdoors. The Multi Frame is available in 3 sizes and is offered with 12 and 22 rear wheels. Fits both Panda Futura and x:panda as well as other manufacturers seating systems that are constructed in the same way and meet the standard.
Classification
12 22 18 06 - Frames for wheelchairs
Video
Play videoThe product series contains 6 products.
The product series also includes 6 discontinued products. Include discontinued products.
Product 1 of 6
Multi Frame size 1, 12,5 inch wheels, without adaptor
HMI-no.
79609
Article-no.
31971141220
Registration date
19-06-2013
Last updated
12-12-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
59
cm
The narrowest possible configuration.
Total length
64
cm
Weight
13
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
100
kg
Including seat, accessories, and person.
Height, min
39.5
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
45.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 79609Other specifications
Several different seating systems in different sizes can be mounted, for optimal adaptation and comfort.
Product 2 of 6
Multi Frame size 1, 22 inch wheels, without adaptor
HMI-no.
79606
Article-no.
31971152220
Registration date
19-06-2013
Last updated
12-12-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
59
cm
The narrowest possible configuration.
Total length
75
cm
Weight
14
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
100
kg
Including seat, accessories, and person.
Height, min
39.5
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
45.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 79606Other specifications
Several different seating systems in different sizes can be mounted, for optimal adaptation and comfort.
Product 3 of 6
Multi Frame size 2, 12,5 inch wheels, without adaptor
HMI-no.
79610
Article-no.
31972141220
Registration date
19-06-2013
Last updated
12-12-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
64
cm
The narrowest possible configuration.
Total length
64
cm
Weight
13
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
100
kg
Including seat, accessories, and person.
Height, min
39.5
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
45.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 79610Other specifications
Several different seating systems in different sizes can be mounted, for optimal adaptation and comfort.
Product 4 of 6
Multi Frame size 2, 22 inch wheels, without adaptor
HMI-no.
79607
Article-no.
31972152220
Registration date
19-06-2013
Last updated
12-12-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
64
cm
The narrowest possible configuration.
Total length
75
cm
Weight
14
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
100
kg
Including seat, accessories, and person.
Height, min
39.5
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
45.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 79607Other specifications
Several different seating systems in different sizes can be mounted, for optimal adaptation and comfort.
Product 5 of 6
Multi Frame size 3, 12,5 inch wheels, without adaptor
HMI-no.
79611
Article-no.
31973141220
Registration date
19-06-2013
Last updated
12-12-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
69
cm
The narrowest possible configuration.
Total length
69
cm
Weight
13
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
100
kg
Including seat, accessories, and person.
Height, min
39.5
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
45.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 79611Other specifications
Several different seating systems in different sizes can be mounted, for optimal adaptation and comfort.
Product 6 of 6
Multi Frame size 3, 22 inch wheels, without adaptor
HMI-no.
79608
Article-no.
31973152220
Registration date
19-06-2013
Last updated
12-12-2024
Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
No
Intended for fastening in a car
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes
Measures
Total width
69
cm
The narrowest possible configuration.
Total length
80
cm
Weight
14
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
100
kg
Including seat, accessories, and person.
Height, min
39.5
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
45.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 79608Other specifications
Several different seating systems in different sizes can be mounted, for optimal adaptation and comfort.
