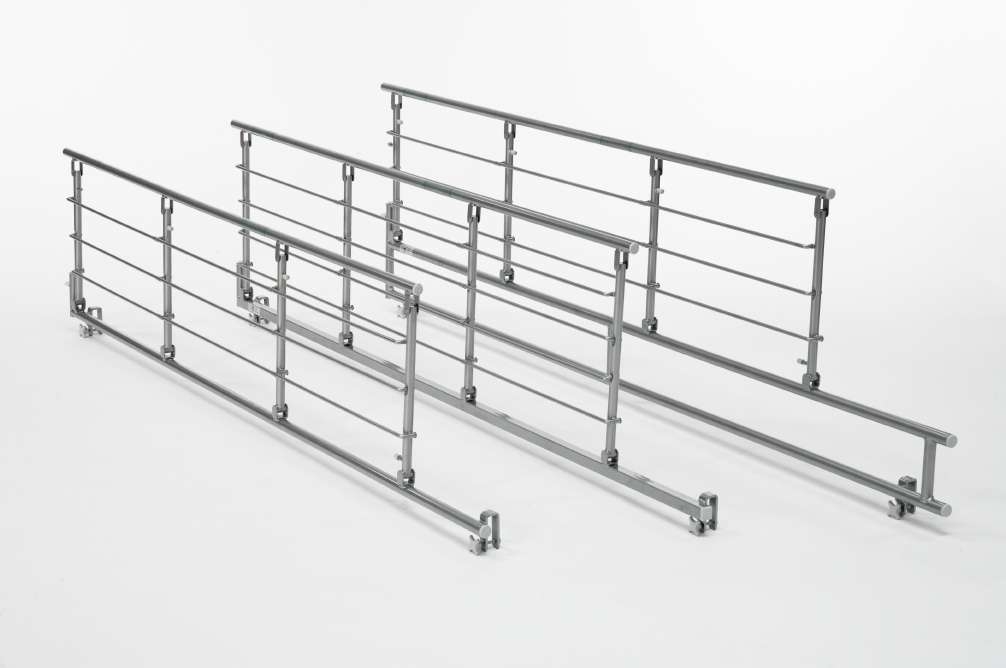

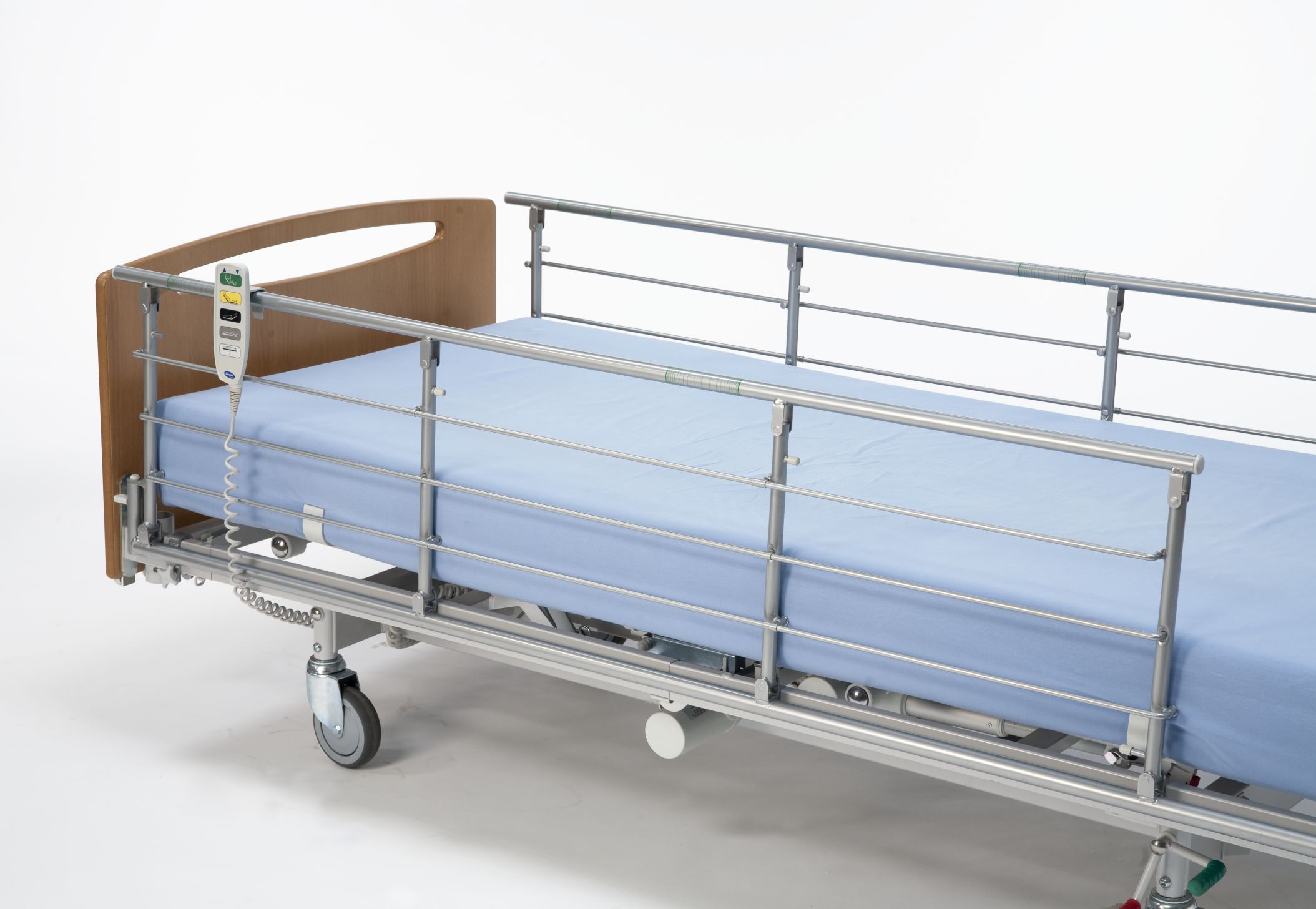

Scala 2 siderail for SB




Classification
18 12 26 01 - Side rails in one piece

Documents
Brochure


The product series contains 15 products.
The product series also includes 11 discontinued products. Include discontinued products.

» Summarize specifications

Product 1 of 15
Scala Basic 2 for Sb 755/755D, left


HMI-no.
61991
Article-no.
1528931-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No

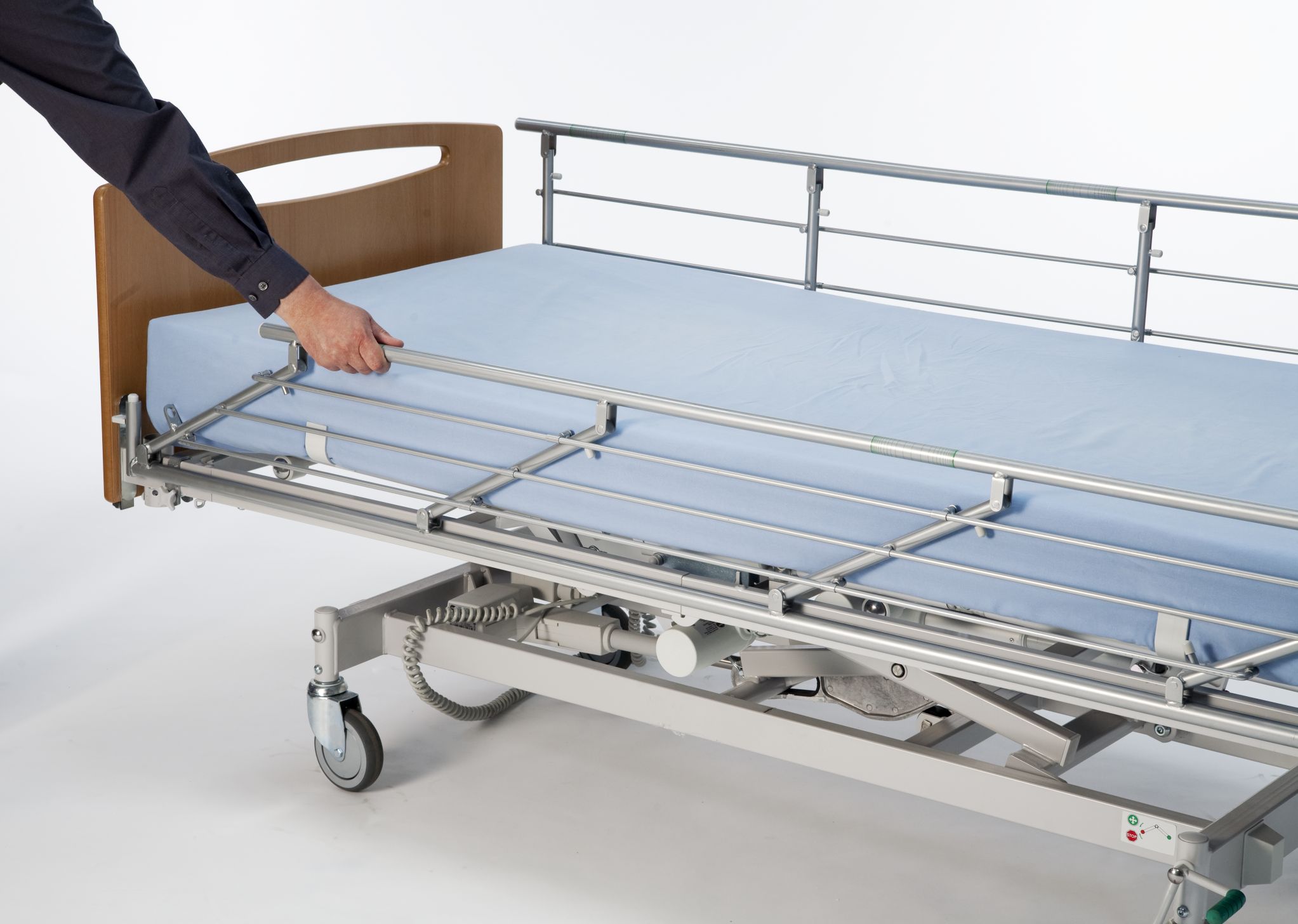

Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
36
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 14 cm high.


Product 2 of 15
Scala Basic 2 for Sb 755/755D, right


HMI-no.
61990
Article-no.
1529272-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
No
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
36
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 14 cm high.


Product 3 of 15
Scala Basic 2 for Sb 755/755D, set


HMI-no.
61083
Article-no.
1528930-0154

Registration date
27-07-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
36
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
169
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 14 cm high.


Product 4 of 15
Scala Basic 2 Plus for Sb 755/755D, left


HMI-no.
61994
Article-no.
1529746-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
36
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Scala Basic 2 methal (steele) siderail for ScanBed 755/755D. Sideway collapsable. Used with mattresses up to 14 cm high. With plastic inset at the forked link.


Product 5 of 15
Scala Basic 2 Plus for Sb 755/755D, right


HMI-no.
61993
Article-no.
1529901-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
No
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
36
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 14 cm high.


Product 6 of 15
Scala Basic 2 Plus for Sb 755/755D, set


HMI-no.
61992
Article-no.
1529745-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
36
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 14 cm high.


Product 7 of 15
Scala Basic side rail, can be activated by patient, right


HMI-no.
88510
Article-no.
1435212-0154

Registration date
15-09-2015
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
No
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
37
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Scala Basic side rail, can be activated by patient, right


Product 8 of 15
Scala Basic, side rail, can be activated by patient, left


HMI-no.
88502
Article-no.
1435211-0154

Registration date
15-09-2015
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
37
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Scala Basic siderail can be activated by patient, left


Product 9 of 15
Scala Decubi 2 for Sb 400, left


HMI-no.
62426
Article-no.
1530818-1015

Registration date
01-12-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
Yes
Indicates whether the side rail is mounted in both end panels
Vertical foldable
Yes
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
No
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
No

Measures
Height
47
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 25 cm high.


Product 10 of 15
Scala Decubi 2 for Sb 755/755D, left


HMI-no.
61985
Article-no.
1530818-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
47
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 25 cm high.


Product 11 of 15
Scala Decubi 2 for Sb 755/755D, right


HMI-no.
61085
Article-no.
1530819-0154

Registration date
27-07-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
No
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
47
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 25 cm high.


Product 12 of 15
Scala Decubi 2 for Sb 755/755D, set


HMI-no.
61986
Article-no.
1530817-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
47
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 25 cm high.


Product 13 of 15
Scala Medium 2 for Sb 755/755D, left


HMI-no.
61989
Article-no.
1530437-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
42
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 20 cm high.


Product 14 of 15
Scala Medium 2 for Sb 755/755D, right


HMI-no.
61084
Article-no.
1530453-0154

Registration date
27-07-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
No
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
42
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 20cm high.


Product 15 of 15
Scala Medium 2 for Sb 755/755D, set


HMI-no.
61988
Article-no.
1530436-0154

Registration date
21-10-2010
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
Yes

Measures
Height
42
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
167
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Used with mattresses up to 20 cm high.
