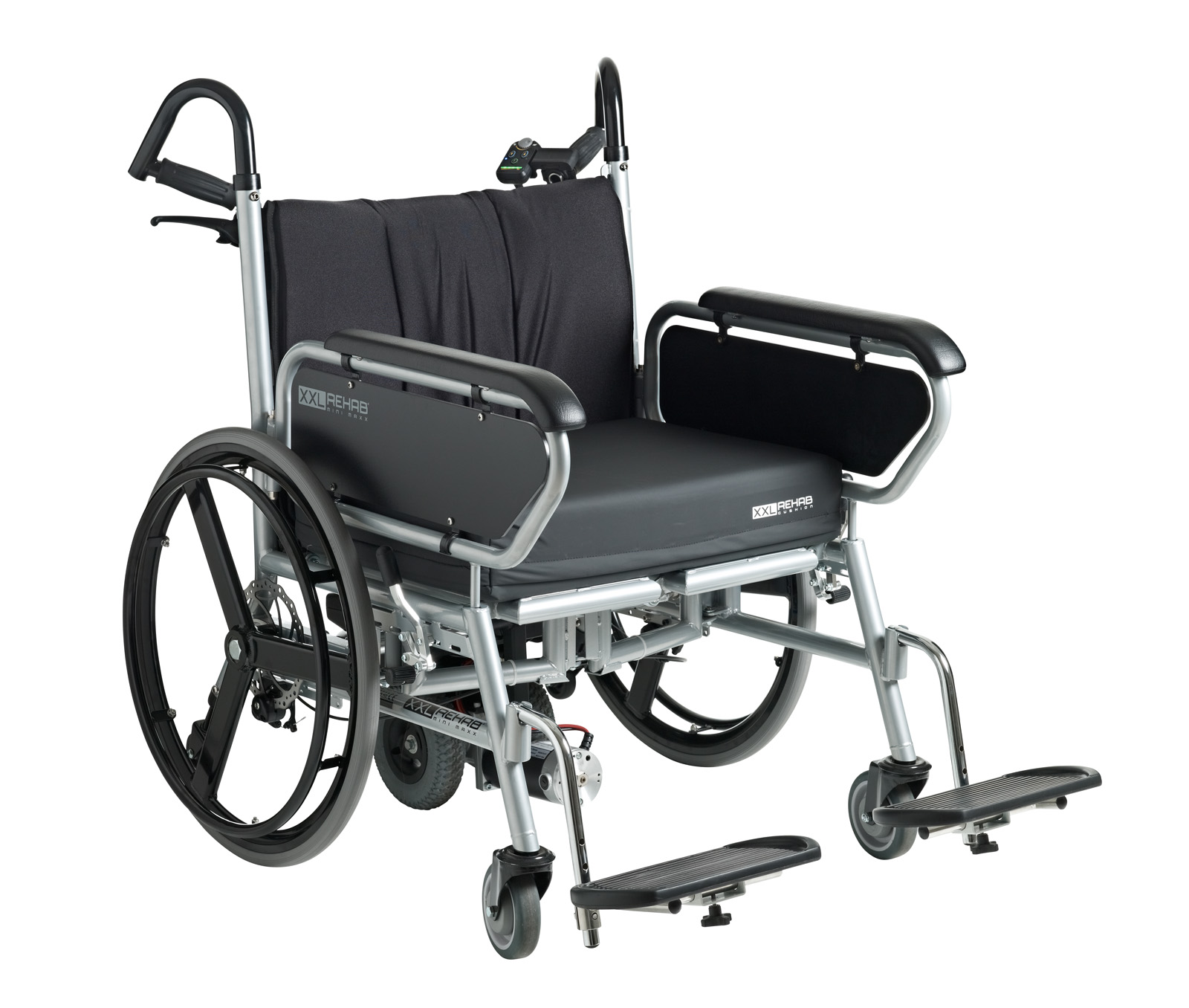

Bariatric Wheelchair Minimaxx with Push motor
Classification
12 23 12 02 - Attendant-controlled powered wheelchairs, class A (primarily for indoor use)
Documents
BrochureThe product series contains 4 products.
Product 1 of 4
Bariatric Wheelchair Minimaxx with Push motor
HMI-no.
62394
Article-no.
0110-056-000
Registration date
25-11-2010
Last updated
19-12-2023
Properties
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
No
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Suspension
No
Can be used as seat in a car
No
Can be combined with occupant-control
No
Measures
User weight, max
325
kg
Width
81
cm
Length
70
cm
Weight
50
kg
Speed, max
5
km/t
Driving distance range, fully charged
4.5
km/t
Seat height, min
43
cm
Seat height, max
43
cm
Back rest recline, max
17
°
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
10
cm
Turning diameter
140
cm
Slope, max
5
°
Climbs obstacles of max
4
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 4
Bariatric Wheelchair Minimaxx with Push motor
HMI-no.
64998
Article-no.
0110-066-000
Registration date
16-08-2011
Last updated
11-01-2024
Properties
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
No
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Suspension
No
Can be used as seat in a car
No
Can be combined with occupant-control
No
Measures
User weight, max
325
kg
Width
90
cm
Length
70
cm
Weight
50
kg
Speed, max
5
km/t
Driving distance range, fully charged
4.5
km/t
Seat height, min
43
cm
Seat height, max
43
cm
Back rest recline, max
17
°
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
10
cm
Turning diameter
140
cm
Slope, max
5
°
Climbs obstacles of max
4
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 3 of 4
Bariatric Wheelchair Minimaxx with Push motor
HMI-no.
64999
Article-no.
0110-071-000
Registration date
16-08-2011
Last updated
11-01-2024
Properties
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
No
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Suspension
No
Can be used as seat in a car
No
Can be combined with occupant-control
No
Measures
User weight, max
325
kg
Width
95
cm
Length
70
cm
Weight
50
kg
Speed, max
5
km/t
Driving distance range, fully charged
4.5
km/t
Seat height, min
43
cm
Seat height, max
43
cm
Back rest recline, max
17
°
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
10
cm
Turning diameter
140
cm
Slope, max
5
°
Climbs obstacles of max
4
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 4 of 4
XXL-Rehab Minimaxx with Push motor
HMI-no.
64996
Article-no.
0110-061-000
Registration date
16-08-2011
Last updated
11-01-2024
Properties
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
No
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Suspension
No
Can be used as seat in a car
No
Can be combined with occupant-control
No
Measures
User weight, max
325
kg
Width
85
cm
Length
70
cm
Weight
50
kg
Speed, max
5
km/t
Driving distance range, fully charged
4.5
km/t
Seat height, min
43
cm
Seat height, max
43
cm
Back rest recline, max
17
°
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
10
cm
Turning diameter
140
cm
Slope, max
5
°
Climbs obstacles of max
4
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
