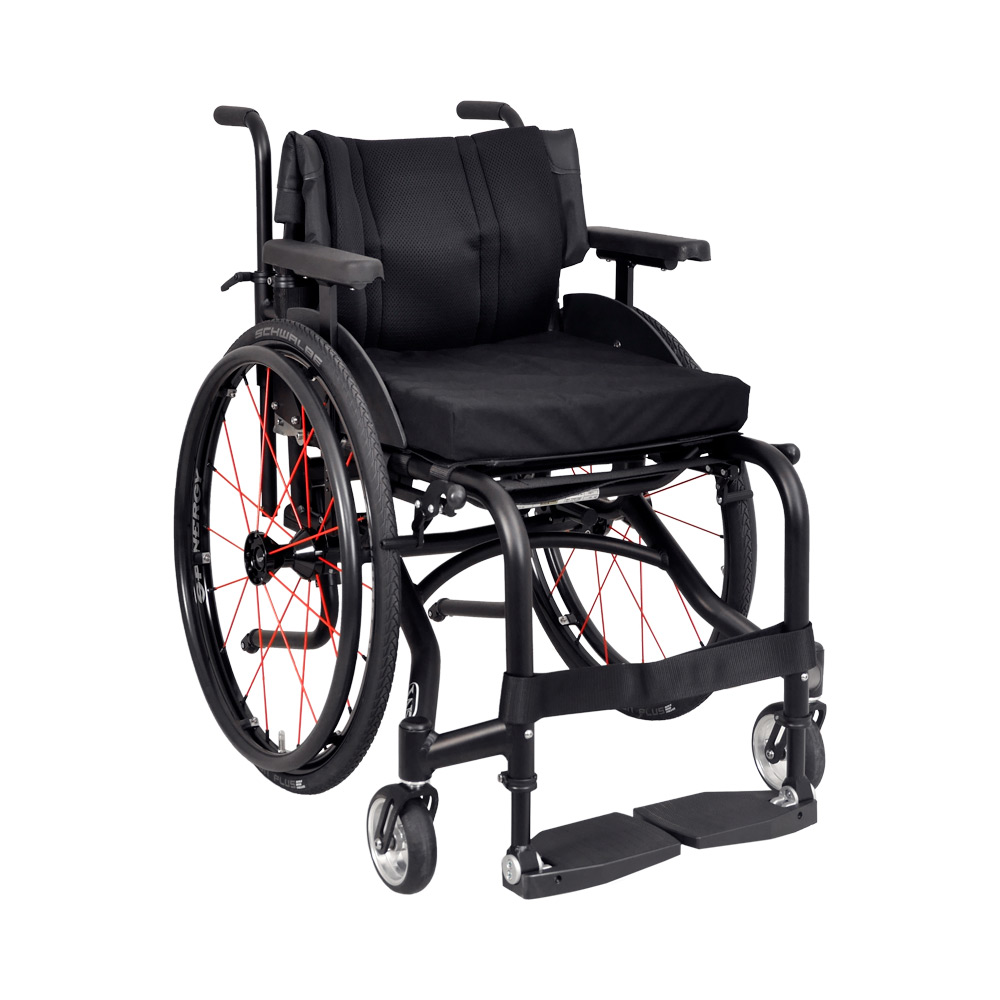

W5 D

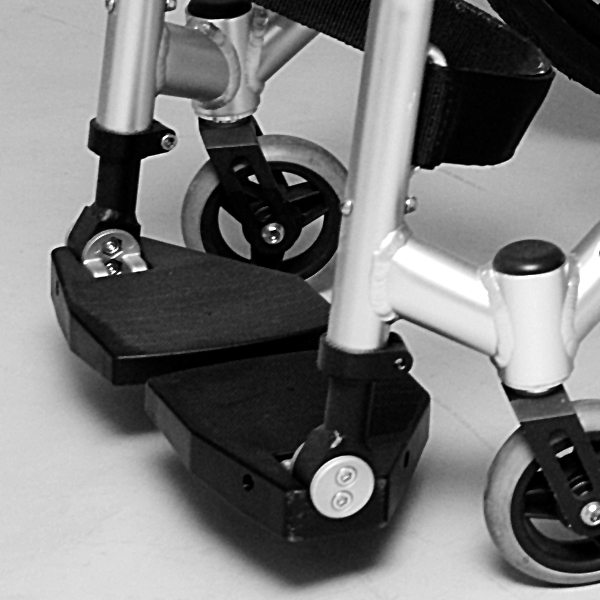

Ultralight active wheelchair with the need for easy with swing-away height adjustable footrests for easy transfer and transport. As standard model with adjustable balance and foldable height and angle adjustable backrest, height and angle adjustable footrests and removable side panels or customized individually.

Classification
12 22 03 14 - Manual wheelchairs with rigid frame, customized

Documents
Brochure
User manual
Spare part catalogue


The product series contains 7 products.

» Summarize specifications

Product 1 of 7
W5 D, Custom


HMI-no.
64286

Registration date
13-04-2011
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
140
kg
Seat height, min
36
cm
Seat height, max
60
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
55
cm
Total length
73.5
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width, min
36
cm
Seat width, max
48
cm
Seat depth, min
36
cm
Seat depth, max
55
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 7
W5 D, SB 40 cm


HMI-no.
64140

Registration date
25-03-2011
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
140
kg
Seat height, min
36
cm
Seat height, max
60
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
55
cm
Total length
73.5
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width, min
40
cm
Seat width, max
40
cm
Seat depth, min
36
cm
Seat depth, max
55
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 7
W5 D, SW 36 cm


HMI-no.
64138

Registration date
25-03-2011
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
140
kg
Seat height, min
36
cm
Seat height, max
60
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
51
cm
Total length
73.5
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width, min
36
cm
Seat width, max
36
cm
Seat depth, min
36
cm
Seat depth, max
55
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 4 of 7
W5 D, SW 38 cm


HMI-no.
64139

Registration date
25-03-2011
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
140
kg
Seat height, min
36
cm
Seat height, max
60
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
53
cm
Total length
73.5
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width, min
38
cm
Seat width, max
38
cm
Seat depth, min
36
cm
Seat depth, max
55
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 5 of 7
W5 D, SW 42 cm


HMI-no.
64141

Registration date
25-03-2011
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
140
kg
Seat height, min
36
cm
Seat height, max
60
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
57
cm
Total length
73.5
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width, min
42
cm
Seat width, max
42
cm
Seat depth, min
36
cm
Seat depth, max
55
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 6 of 7
W5 D, SW 45 cm


HMI-no.
64142

Registration date
25-03-2011
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
140
kg
Seat height, min
36
cm
Seat height, max
60
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
60
cm
Total length
73.5
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width, min
45
cm
Seat width, max
45
cm
Seat depth, min
36
cm
Seat depth, max
55
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 7 of 7
W5 D, SW 48 cm


HMI-no.
64143

Registration date
25-03-2011
Last updated
22-10-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
140
kg
Seat height, min
36
cm
Seat height, max
60
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
63
cm
Total length
73.5
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width, min
48
cm
Seat width, max
48
cm
Seat depth, min
36
cm
Seat depth, max
55
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
