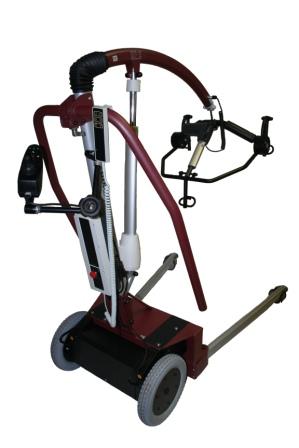

Dan Lift 5 in 1
DanLift 5in1 helps the user to both walk, stand and lift, and the integrated module shift can also come with a lift scale.
The lift is self-propelled by means of a joystick, and is therefore an easy and ergonomically better solution for the helper.
The lift is self-propelled by means of a joystick, and is therefore an easy and ergonomically better solution for the helper.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
Dan Lift 5 in 1
HMI-no.
64494
Article-no.
2003D-325-2
Registration date
24-05-2011
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
325
kg
Internal width of base, max
129
cm
Measured with the base in the widest position
External width of base in the most narrow position
64.5
cm
Height of base at front
12.5
cm
Turning diameter
140
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
102
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Dan liften comes in 2 different sizes 325 kg and 375 kg
