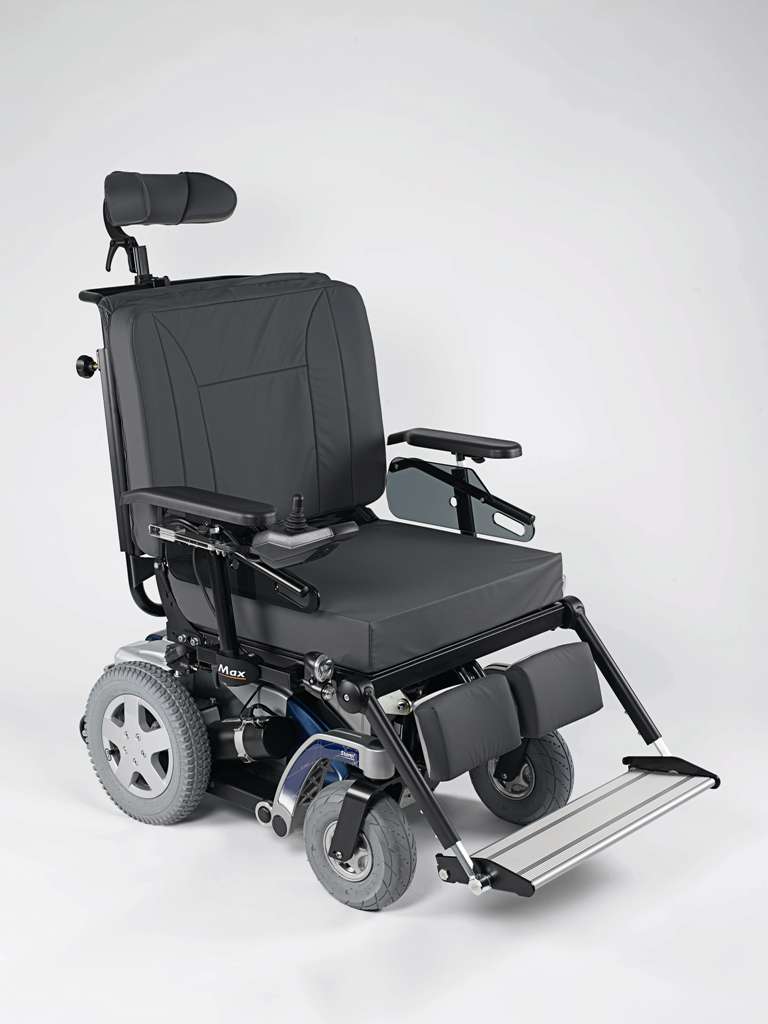

Invacare Storm4 Max



Storm4 Max is designed specifically for the needs of clients with a larger bodyshape. Its longer chassis supports the shifted centre of bodymass for improved weight distribution and swift mobility. Extra strong arm- and legrest support the clients needs to push themselves back to re-position or do some type of pressure relief.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual
Accessories catalogue
Service manual


The product series contains 1 product.

Product 1 of 1
Invacare Storm4 Max


HMI-no.
65159
Article-no.
Konfigurerbar

Registration date
15-09-2011
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
Yes

Measures
User weight, max
220
kg
External width
71
cm
Measured where widest
External length
139
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
175
kg
Speed, max
6
km/t
Driving distance range, fully charged
31
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
48
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
51
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
15
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Ground clearance
7
cm
Slope, max
6
°
Climbs obstacles of max
6
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
