HEWI L-shaped support rail (801-series)
Classification
18 18 06 04 - Handgrips, fixed, angled
Documents
The product series contains 1 product.
Product 1 of 1
HEWI L-shaped support rail
HMI-no.
69756
Article-no.
801.22.100
Registration date
02-12-2011
Last updated
21-11-2023
Properties
T-shape
No
Corner design
No
The handgrip is shaped for mounting in a corner with a part on each of the two walls.

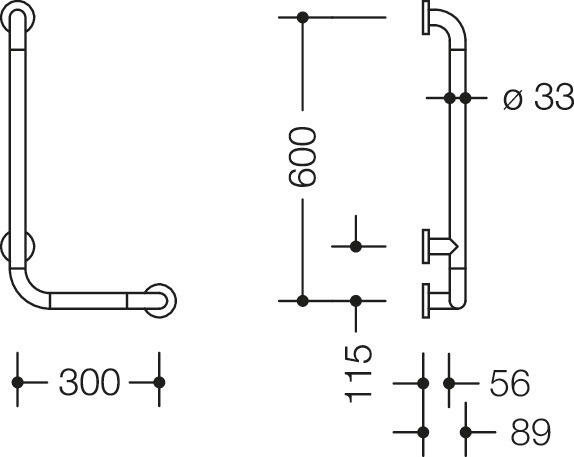

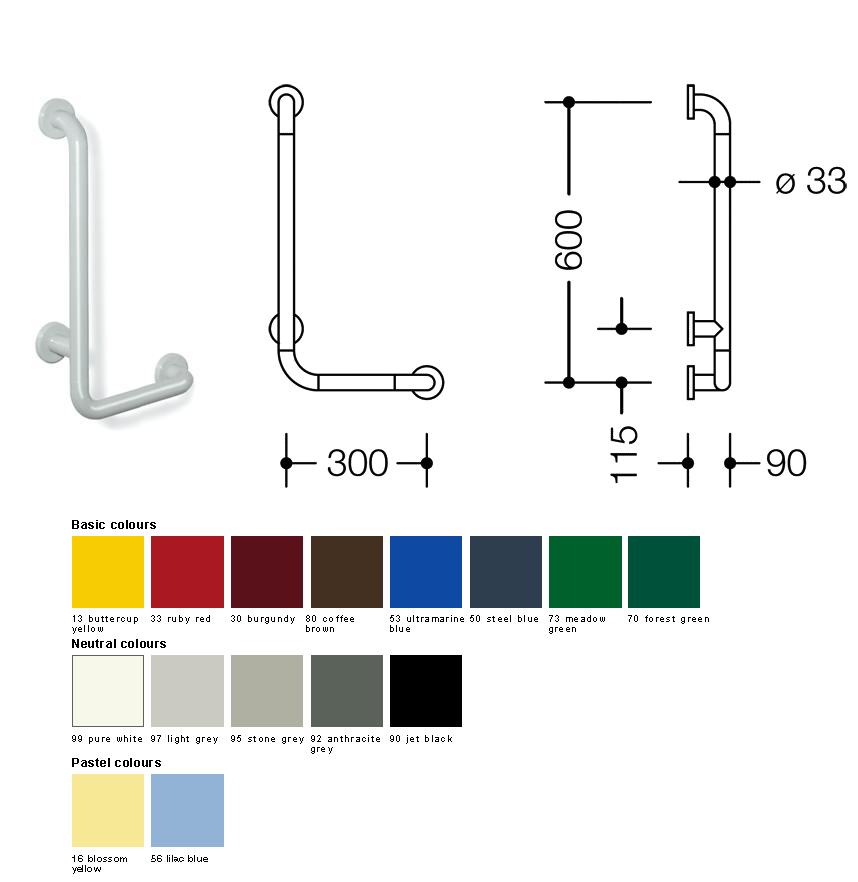

Measures
Load, max
150
kg
Length of longest part
60
cm
Length of shortest part
30
cm
Depth
8.8
cm
The depth is the distance from the wall to the inside of the hand grip.
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking ![info](/en/img/i.svg)
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Vertical and horizontal bars joined at right-angles.
With continuous, corrosion resistant steel core.
Can be mounted in left hand or right hand position
for wall mounting.
88 mm deep
Bar diameter 33 mm, rose diameter 70 mm.
Made of high-quality polyamide according to HEWI colour chart.
Toilet roll holder upgrade kit 801.50.010, can be retrofitted.
With continuous, corrosion resistant steel core.
Can be mounted in left hand or right hand position
for wall mounting.
88 mm deep
Bar diameter 33 mm, rose diameter 70 mm.
Made of high-quality polyamide according to HEWI colour chart.
Toilet roll holder upgrade kit 801.50.010, can be retrofitted.
