HEWI L-shaped support rail - 135 degrees (801-series)
L-shaped support rail
Polyamide, high gloss, centre-to-centre 620 mm and 200 mm, Angle 135, 200 mm high, Diameter 33 mm, Can be mounted on the left and right, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.
Polyamide, high gloss, centre-to-centre 620 mm and 200 mm, Angle 135, 200 mm high, Diameter 33 mm, Can be mounted on the left and right, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.
Classification
18 18 06 04 - Handgrips, fixed, angled
Documents
User manualThe product series contains 1 product.
Product 1 of 1
HEWI L-shaped support rail - 135 degrees (801 series)
HMI-no.
69757
Article-no.
801.22.200
Registration date
02-12-2011
Last updated
13-04-2025
Test information
No information about tests according to standardsThe supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Can be mounted in left hand or right hand position.
With continuous, corrosion resistant steel core.
For wall mounting.

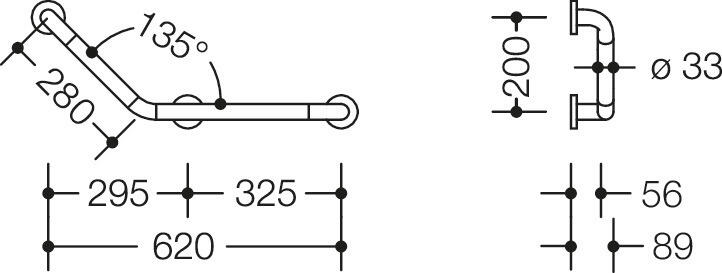

c-c dimensions 295 mm and 325 mm, 135 angle, 200 mm high
Bar diameter 33 mm, rose diameter 70 mm.
Made of high-quality polyamide according to HEWI colour chart.
Toilet roll holder upgrade kit 801.50.010, can be retrofitted.
With continuous, corrosion resistant steel core.
For wall mounting.
c-c dimensions 295 mm and 325 mm, 135 angle, 200 mm high
Bar diameter 33 mm, rose diameter 70 mm.
Made of high-quality polyamide according to HEWI colour chart.
Toilet roll holder upgrade kit 801.50.010, can be retrofitted.
