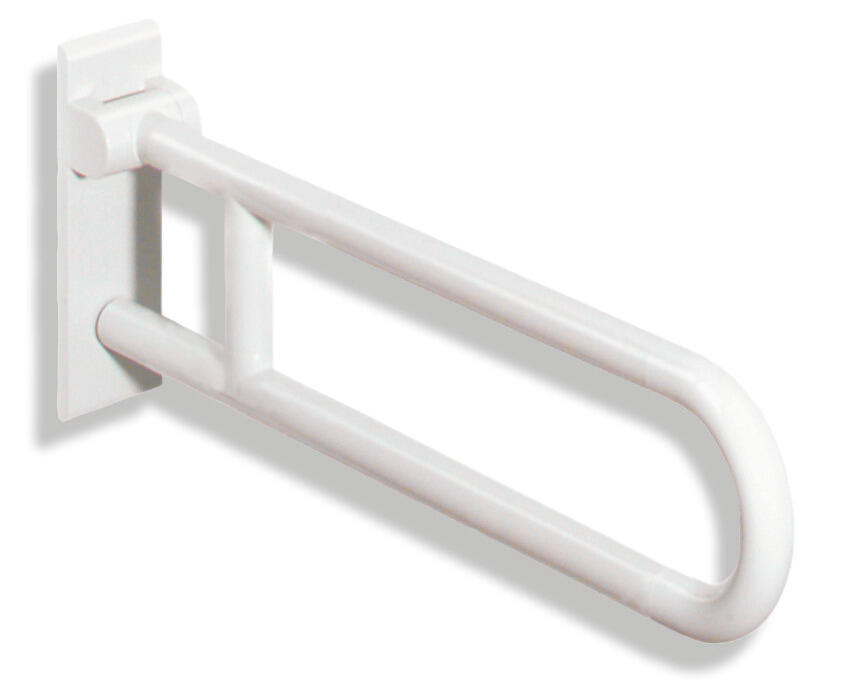

HEWI Hinged support rail, rotating (801-series)

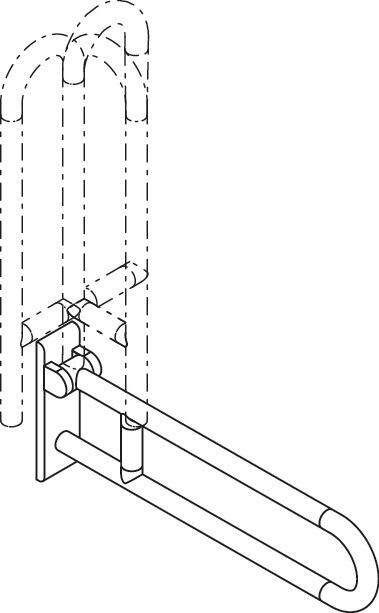

hinged support rail, rotatable

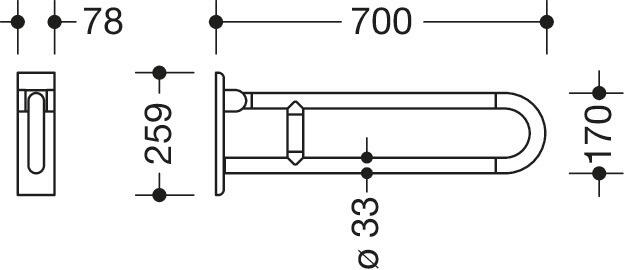

polyamide, high gloss, Projection 700 mm, tested up to 150 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 and SIA 500 requirements.

Classification
18 18 06 06 - Grab bars

Documents
User manual


The product series contains 5 products.

» Summarize specifications

Product 1 of 5
HEWI Hinged support rail, rotating 70 cm.


HMI-no.
69876
Article-no.
801.50.110

Registration date
08-12-2011
Last updated
18-12-2025

Properties
Intended fixation to floor
No

Measures
Load, max
100
kg
Length
70
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking

Product 2 of 5
HEWI Hinged support rail, rotating 75 cm.


HMI-no.
146785
Article-no.
801.50.147

Registration date
17-12-2025
Last updated
18-12-2025

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
75
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking

Product 3 of 5
HEWI Hinged support rail, rotating 85 cm.


HMI-no.
146786
Article-no.
801.50.120

Registration date
17-12-2025
Last updated
18-12-2025

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
85
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking

Product 4 of 5
HEWI Hinged support rail, rotating 90 cm.


HMI-no.
146787
Article-no.
801.50.130

Registration date
17-12-2025
Last updated
18-12-2025

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
90
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking

Product 5 of 5
Hinged support rail, rotatable 60 cm.


HMI-no.
146784
Article-no.
801.50.100

Registration date
17-12-2025
Last updated
18-12-2025

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
60
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking
