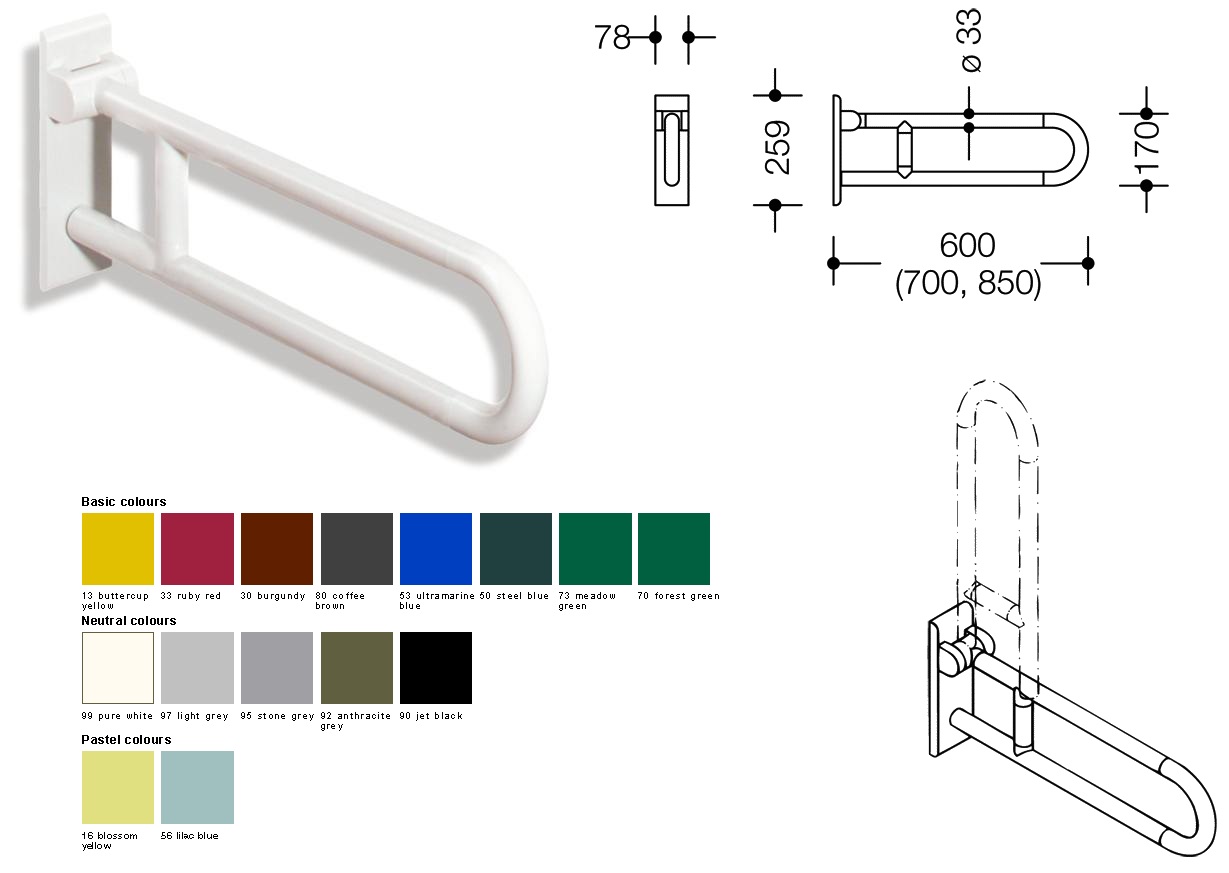

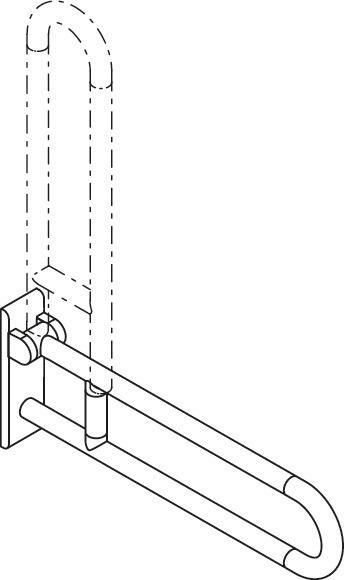

HEWI Hinged support rail (801-series)



Polyamide, high gloss, hinged.

Classification
18 18 06 06 - Grab bars

Documents
User manual


The product series contains 5 products.

» Summarize specifications

Product 1 of 5

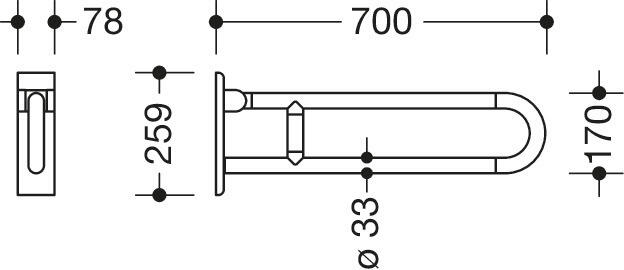

HEWI Hinged support rail 70 cm.


HMI-no.
69877
Article-no.
801.50.210

Registration date
08-12-2011
Last updated
30-01-2026

Properties
Intended fixation to floor
No

Measures
Load, max
100
kg
Length
70
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 69877

Product 2 of 5
Hinged support rail 60 cm.


HMI-no.
146789
Article-no.
801.50.200

Registration date
17-12-2025
Last updated
30-01-2026

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
60
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 5
Hinged support rail 75 cm.


HMI-no.
146790
Article-no.
801.50.240

Registration date
17-12-2025
Last updated
30-01-2026

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
75
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 146790

Product 4 of 5
Hinged support rail 85 cm.


HMI-no.
146791
Article-no.
801.50.220

Registration date
17-12-2025
Last updated
30-01-2026

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
85
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 146791

Product 5 of 5
Hinged support rail 90 cm.


HMI-no.
146792
Article-no.
801.50.230

Registration date
17-12-2025
Last updated
30-01-2026

Properties
Intended fixation to floor
No

Measures
Load, max
150
kg
Length
90
cm
The length is the distance from the wall to the outer point of the grab bar.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 146792
