HEWI Hinged support rail - duo (950-series)
Classification
18 18 11 01 - Toilet arm supports, wall mounted
Documents
User manualThe product series contains 1 product.
Product 1 of 1
HEWI Hinged support rail - duo, 700 mm
HMI-no.
69991
Article-no.
950.50.12090
Registration date
22-12-2011
Last updated
18-02-2025
Properties
Supporting leg
No
Hinged
Yes
Pivoting
No
Measures
Load, max
100
kg

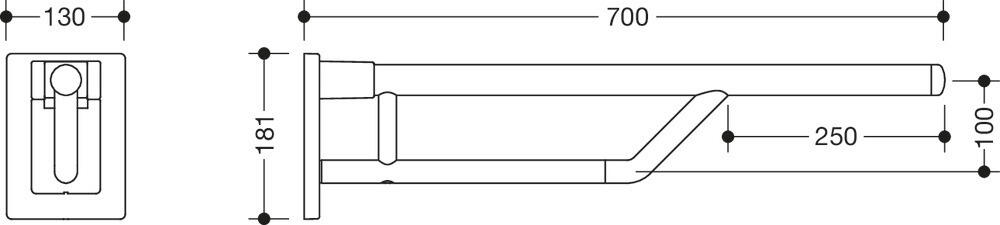

Length of arm support
70
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Can be folded upwards and, folded downwards with braking mechanism.
Made of polyamide in HEWI colours 98 (signal white) or 99 (pure white).
Integrated wall mounting plate.
With toilet roll holder, toilet roll holder with WC flushing mechanism and function button (radio-controlled) and floor supports for retrofitting. Multiple lengths available
Made of polyamide in HEWI colours 98 (signal white) or 99 (pure white).
Integrated wall mounting plate.
With toilet roll holder, toilet roll holder with WC flushing mechanism and function button (radio-controlled) and floor supports for retrofitting. Multiple lengths available
