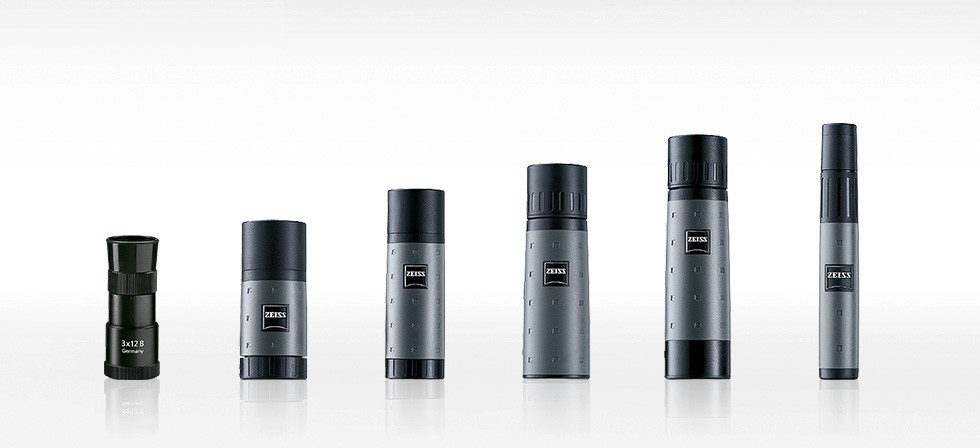

Zeiss Monoculars
the Monos are the masters of versatility, fitting snugly in a jacket pocket or handbag. Depending on the model, they are ideal for use as magnifying glasses or even for binocular amplification. Even the smallest details can be seen.
Classification
22 03 12 01 - Monoculars and binoculars
Documents
User manualThe product series contains 6 products.
Product 1 of 6
Zeiss Mono 10x25 T
HMI-no.
82167
Article-no.
Zeiss 10x25T
Registration date
07-01-2014
Last updated
21-11-2023
Properties
For one eye
Yes
Electronic
No
Measures
Magnification
10
X
Weight
88
g
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Magnification 10 x
Effective Lens Diameter 25 mm
Exit Pupil Diameter 2.5 mm
Twilight Factors 15.8
Field of View at 1000m 88 m
Apparent Field of View 51
Close Focus 4.5 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
PrismSystem Schmidt-Pechan
Height 119 mm
Weight in Use 77 g
Effective Lens Diameter 25 mm
Exit Pupil Diameter 2.5 mm
Twilight Factors 15.8
Field of View at 1000m 88 m
Apparent Field of View 51
Close Focus 4.5 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
PrismSystem Schmidt-Pechan
Height 119 mm
Weight in Use 77 g
Product 2 of 6
Zeiss Mono 3 x 12 T
HMI-no.
64387
Article-no.
Zeiss Mono 3x12
Registration date
11-05-2011
Last updated
21-11-2023
Properties
For one eye
Yes
Electronic
No
Measures
Magnification
3
X
Weight
54
g
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Magnification 3 x
Objective lens diameter 12 mm
Exit pupil 4 mm
Geometric brightness 16
Twilight factor 6.0
Field of view at 1000 m 220 m
Close focus distance 20 cm
Loupe magnification at 20 cm 5 x
Length ) 48 / 58 mm
Front diameter 30 mm
Weight 54 g
Objective lens diameter 12 mm
Exit pupil 4 mm
Geometric brightness 16
Twilight factor 6.0
Field of view at 1000 m 220 m
Close focus distance 20 cm
Loupe magnification at 20 cm 5 x
Length ) 48 / 58 mm
Front diameter 30 mm
Weight 54 g
Product 3 of 6
Zeiss Mono 5x10 T MiniQuick
HMI-no.
82168
Article-no.
Zeiss 5x10 T MiniQuick
Registration date
07-01-2014
Last updated
21-11-2023
Properties
For one eye
Yes
Electronic
No
Measures
Magnification
5
X
Weight
23
g
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Magnification 5 x
Effective Lens Diameter 10 mm
Exit Pupil Diameter 2 mm
Twilight Factors 7
Field of View at 1000m 100 m
Apparent Field of View 29
Close Focus 4 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
Height 113 mm
Weight in Use 23 g
Effective Lens Diameter 10 mm
Exit Pupil Diameter 2 mm
Twilight Factors 7
Field of View at 1000m 100 m
Apparent Field of View 29
Close Focus 4 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
Height 113 mm
Weight in Use 23 g
Product 4 of 6
Zeiss Mono 8x20
HMI-no.
82166
Article-no.
Zeiss 8x20
Registration date
07-01-2014
Last updated
21-11-2023
Properties
For one eye
Yes
Electronic
No
Measures
Magnification
8
X
Weight
77
g
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Magnification 8 x
Effective Lens Diameter 20 mm
Exit Pupil Diameter 2.5 mm
Twilight Factors 12.6
Field of View at 1000m 110 m
Apparent Field of View 51
Close Focus 3 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
PrismSystem Schmidt-Pechan
Height 101 mm
Weight in Use 67 g
Effective Lens Diameter 20 mm
Exit Pupil Diameter 2.5 mm
Twilight Factors 12.6
Field of View at 1000m 110 m
Apparent Field of View 51
Close Focus 3 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
PrismSystem Schmidt-Pechan
Height 101 mm
Weight in Use 67 g
Product 5 of 6
Zeiss Monocular 4x12
HMI-no.
71121
Article-no.
Zeiss4x12
Registration date
05-03-2012
Last updated
21-11-2023
Properties
For one eye
Yes
Electronic
No
Measures
Magnification
4
X
Weight
45
g
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Magnification 4x
Objective Diameter 12 mm
Exit Pupil 3.0 mm
Twilight Factor 6.9
Field of View (ft/1000 yards) 540
Close Focus 1.48 ft
Diopter Range /- 4.0 dpt
Eye Relief 15.0 mm
Water Resistant Sealed against
spray water
Functional Temperature Range -4/104F
Height 2.40 in
Weight 1.59 oz
Objective Diameter 12 mm
Exit Pupil 3.0 mm
Twilight Factor 6.9
Field of View (ft/1000 yards) 540
Close Focus 1.48 ft
Diopter Range /- 4.0 dpt
Eye Relief 15.0 mm
Water Resistant Sealed against
spray water
Functional Temperature Range -4/104F
Height 2.40 in
Weight 1.59 oz
Product 6 of 6
Zeiss Monocular 6x18T
HMI-no.
82165
Article-no.
Zeiss6x18T
Registration date
07-01-2014
Last updated
21-11-2023
Properties
For one eye
Yes
Electronic
No
Measures
Magnification
6
X
Weight
58
g
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
Magnification 6 x
Effective Lens Diameter 18 mm
Exit Pupil Diameter 3 mm
Twilight Factors 10.4
Field of View at 1000m 120 m
Apparent Field of View 41 degrees
Close Focus 0.3 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
PrismSystem Schmidt-Pechan
Height 94 mm
Weight in Use 58 g
Effective Lens Diameter 18 mm
Exit Pupil Diameter 3 mm
Twilight Factors 10.4
Field of View at 1000m 120 m
Apparent Field of View 41 degrees
Close Focus 0.3 m
Diopter Adjustment Range 4 -4 dpt
Lens Type Achromat
PrismSystem Schmidt-Pechan
Height 94 mm
Weight in Use 58 g
