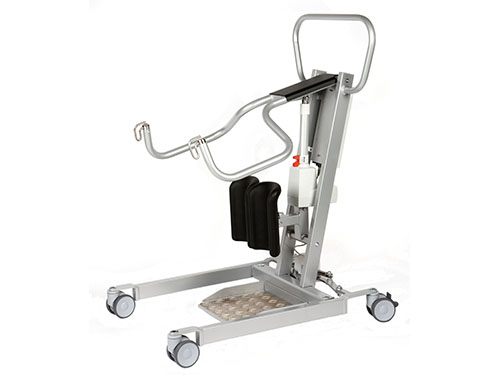

Cathy Personlift



Cathy lift equipment is for the stable and comfortable move of a patient. It comes with the latest technology and the best and long lasting quality components. Functionally optimized and cleaning frindly, the Cathy lift is user-frindly in the day to day care, and a very excellent working envioment.

Classification
12 36 04 01 - Mobile hoists for transferring a person in standing position

Documents
Brochure
User manual
QuickGuide
Accessories catalogue

Video
Play video


The product series contains 1 product.

Product 1 of 1
Cathy Personlift


HMI-no.
71368
Article-no.
PR-3500-200-S

Registration date
30-03-2012
Last updated
19-12-2023

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet
Electrical lifting mechanism
Yes
Electrical width adjustment of base
Yes
Parallel width adjustment of base
No
Leg support adjustable in height
No
Leg support horizontal adjustable
Yes
Leg support adjustable without tools
Yes
Split leg support
No
Foldable
Yes
Can be disassembled without tools
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes
Unit for use with sling(s) available
No
Parking brake
No
info
Mandatory according to EN/ISO 10535:2021

Measures
User weight, max
200
kg
Lifting height, max
122.9
cm
Internal width of base, max
96.4
cm
External width of base in the most narrow position
60
cm
Height of base at front
13.4
cm
Turning diameter
105
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
25
kg
Maintenance frequency
12
måneder
Height of push handles/push bar, min.
120
cm
info
Measured from the floor to the upper surface of the lower grip
Height of push handles/push bar, max.
120
cm
info
Measured from the floor to the upper surface of the heigher grip

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN ISO 10535:2006: Hoists for the transfer of disabled persons - Requirements and test methods.
Test lab: Teknologisk DANAK. Test date: 28-08-2014 Test report for HMI-no. 71368

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
