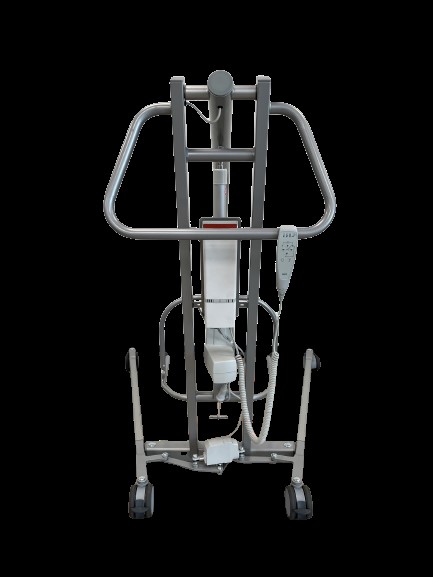

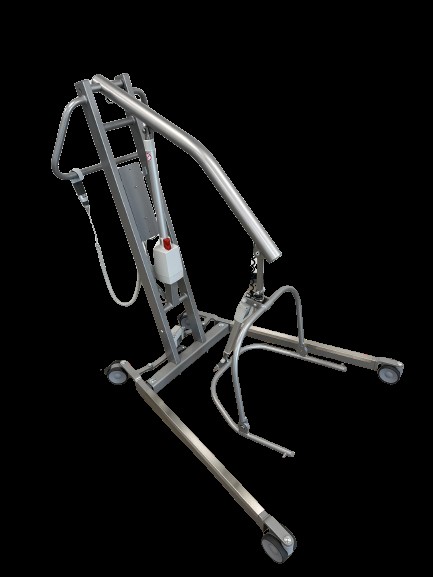

Mary Personlift



Mary lift equipment is for the stable and comfortable move of a patient. It comes with the latest technology and the best and long lasting quality components. Functionally optimized and cleaning frindly, the Mary lift is user-frindly in day to day care, and a very excellent working envioment.

Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents
Brochure
User manual
QuickGuide
Accessories catalogue

Video
Play video


The product series contains 1 product.

Product 1 of 1
Mary personlift


HMI-no.
71370
Article-no.
PR-3500-200

Registration date
02-04-2012
Last updated
03-10-2024

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet

Properties
Lifting movement
Bueformet
info
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
Yes
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
250
kg
Internal width of base, max
96.4
cm
info
Measured with the base in the widest position
External width of base in the most narrow position
70
cm
Height of base at front
13.4
cm
Turning diameter
135
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
25
kg
Maintenance frequency
12
måneder

Test information info
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN ISO 10535:2006: Hoists for the transfer of disabled persons - Requirements and test methods.
Test lab: Teknologisk DANAK. Test date: 22-08-2014 Test report for HMI-no. 71370

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
