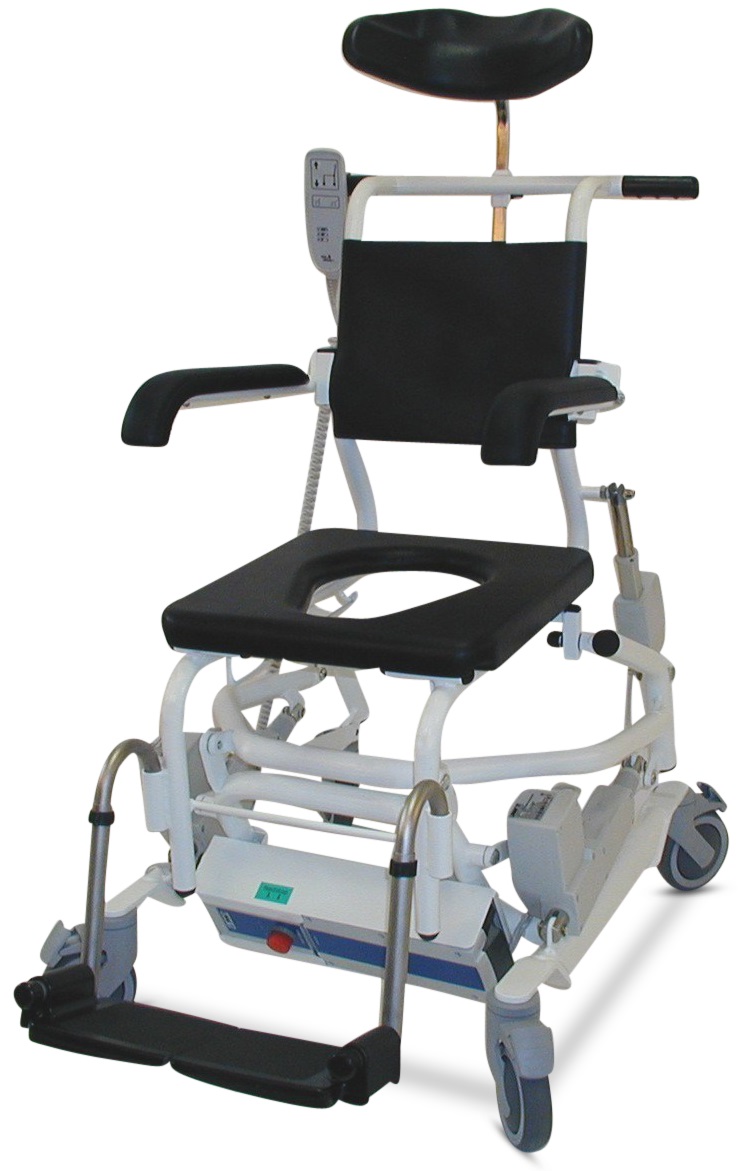

ERGOTIP 9 EL Commode & Shower Chair, reclining
The ERGOtip series offers the largest programme of reclining commode & shower chairs w. gas springs or electric actuators. Tip-up arm rests with soft PUR cushions. Adjustable back and leg support. Detachable seat (w. closed or open front aperture). Bed pan slides w. pot stop when reclined. Four 125 mm brake castors. A wide range of accessories.
Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions
BrochureThe product series contains 1 product.
Product 1 of 1
ERGOtip 9 EL Commode & Shower Chair, reclining
HMI-no.
72166
Article-no.
72166
Registration date
31-05-2012
Last updated
22-10-2024
Properties
Height adjustable
Elektrisk
Properties
Number of wheels with brake
4
Properties
Ingress protection class for water
IPX6
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Removable legrests
Yes
Pivoting legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
150
kg
Total width
57
cm
Ground clearance
47
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
37.5
cm
Smallest distance measured between the inside of the armrests
Seat depth
44
cm
Toilet opening width
15.5
cm
Seat height, min
55
cm
Seat height, max
93.5
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Three electric actuators - two for height adjustment and one for reclining. Tip-up arm rests with soft PUR cushions. Adjustable back (and leg) support. Detachable seat (w. closed or open front aperture). Bed pan slides w. pot stop when reclined. Four 125 et pågældende felt.I
