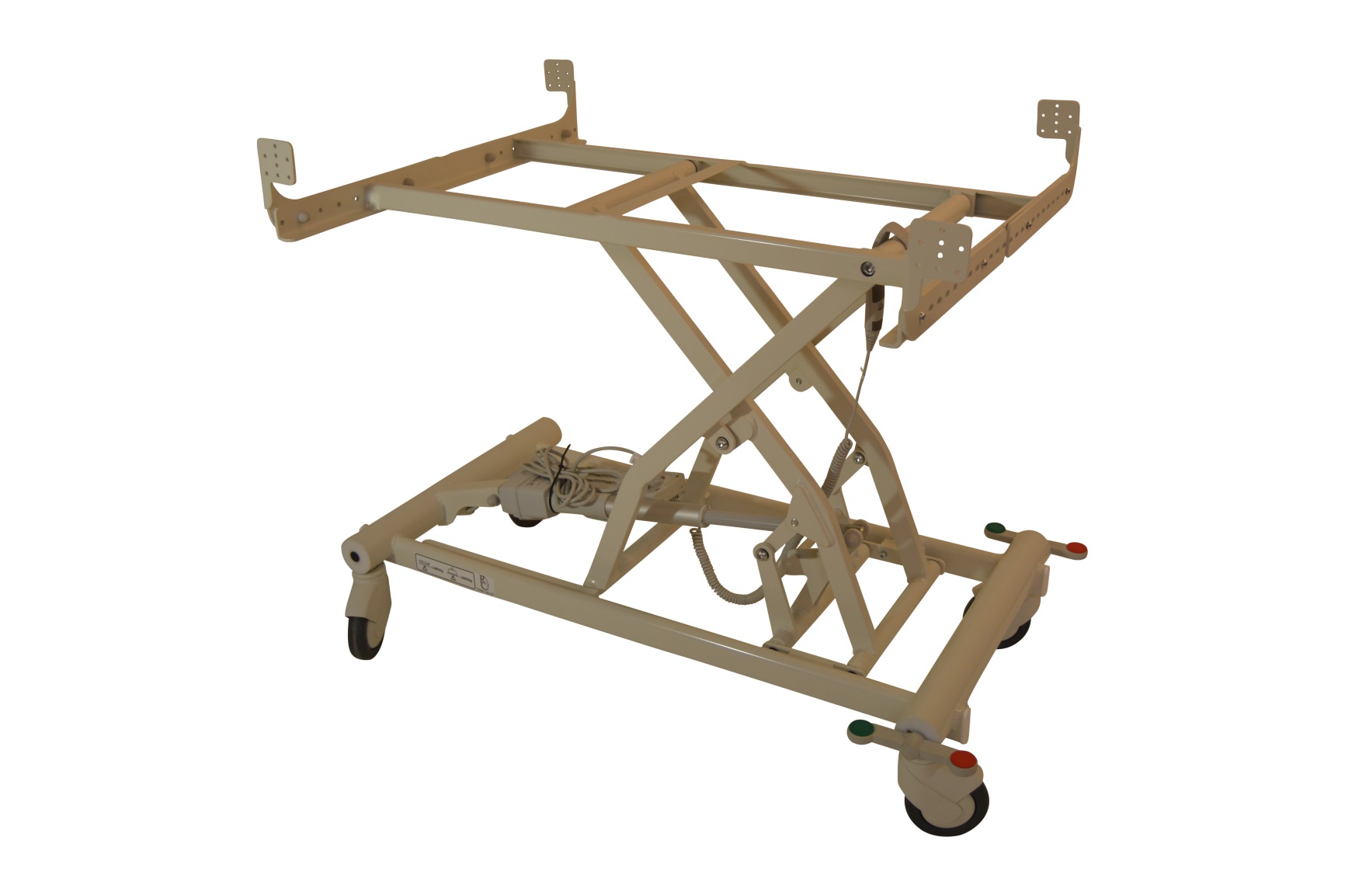

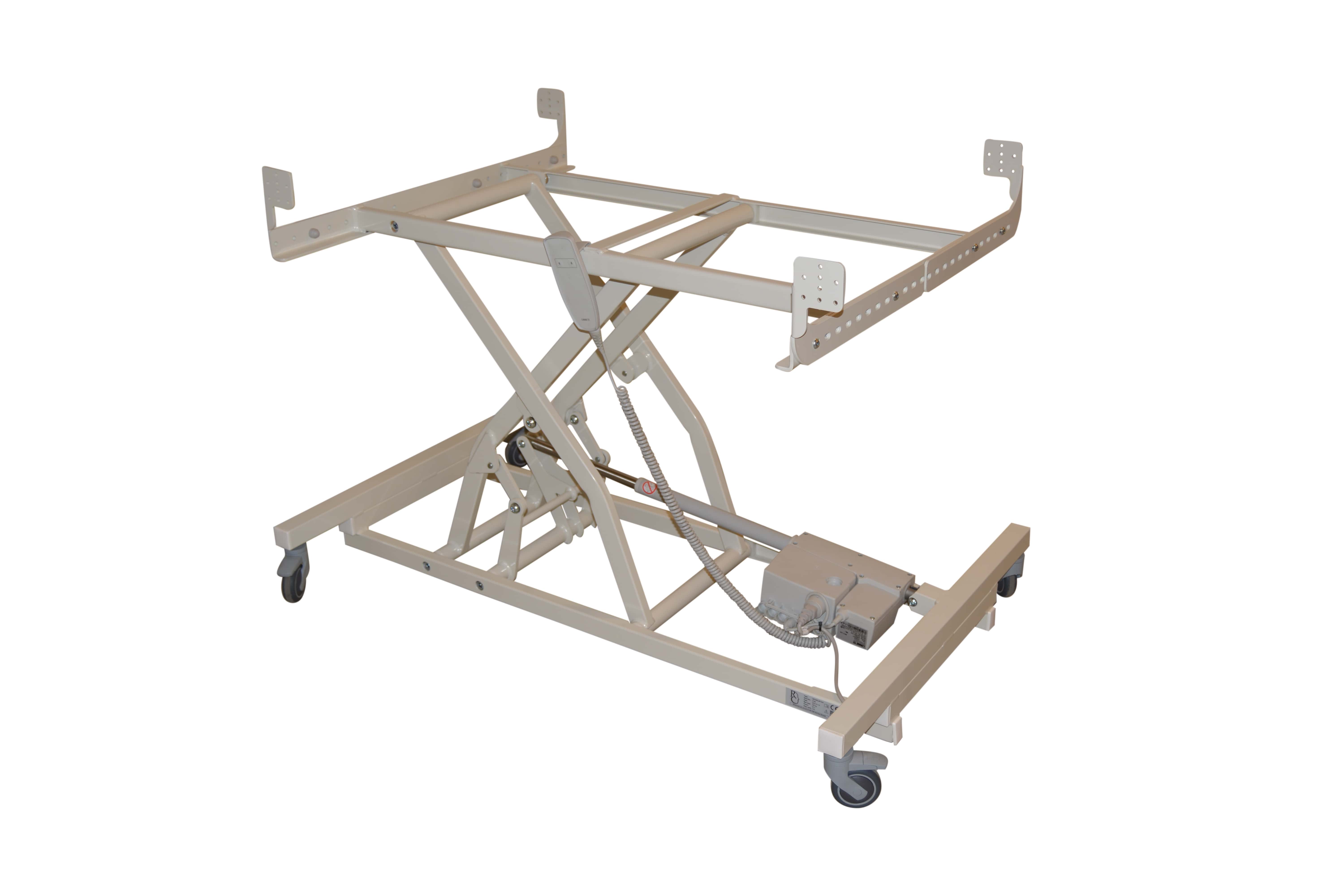

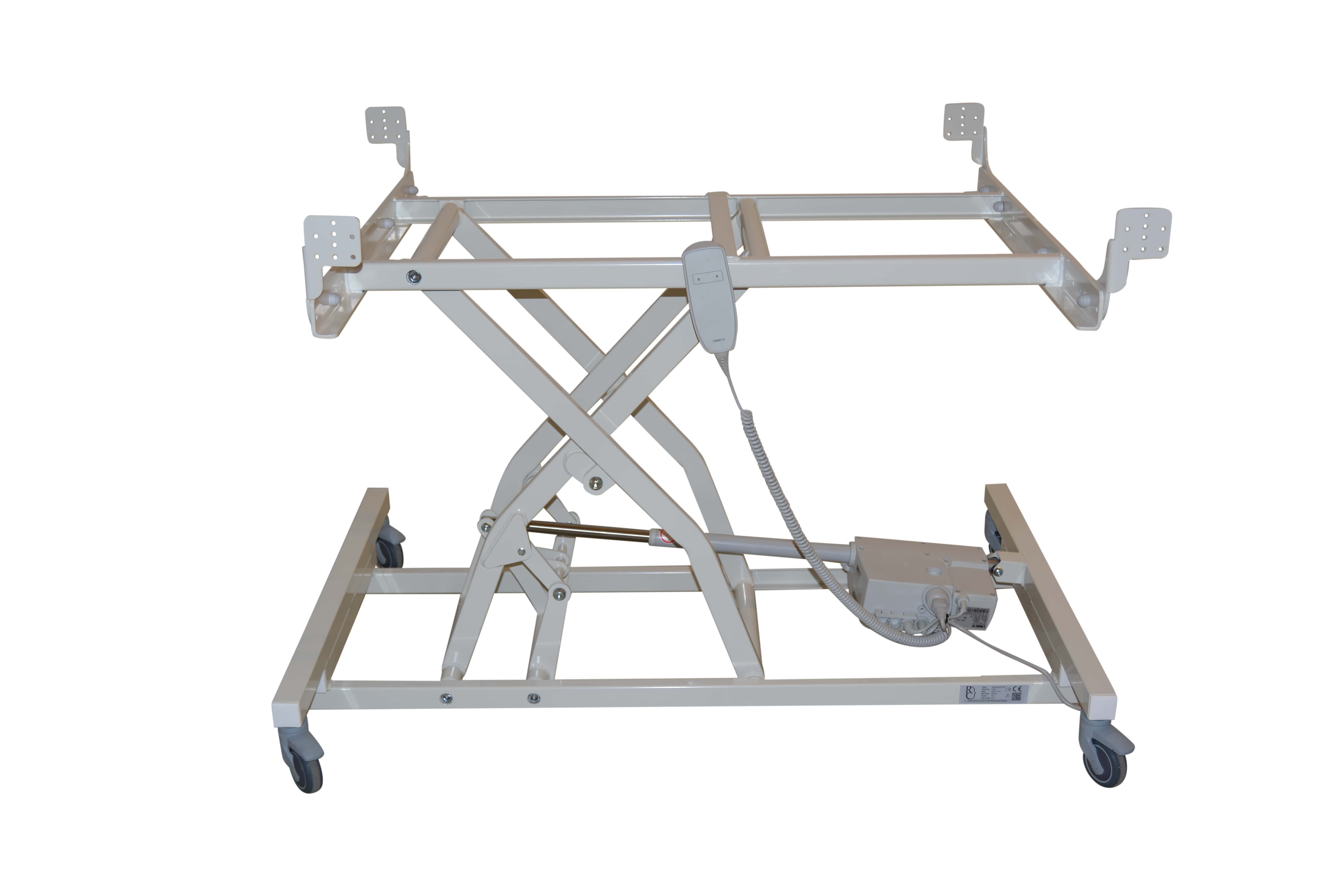

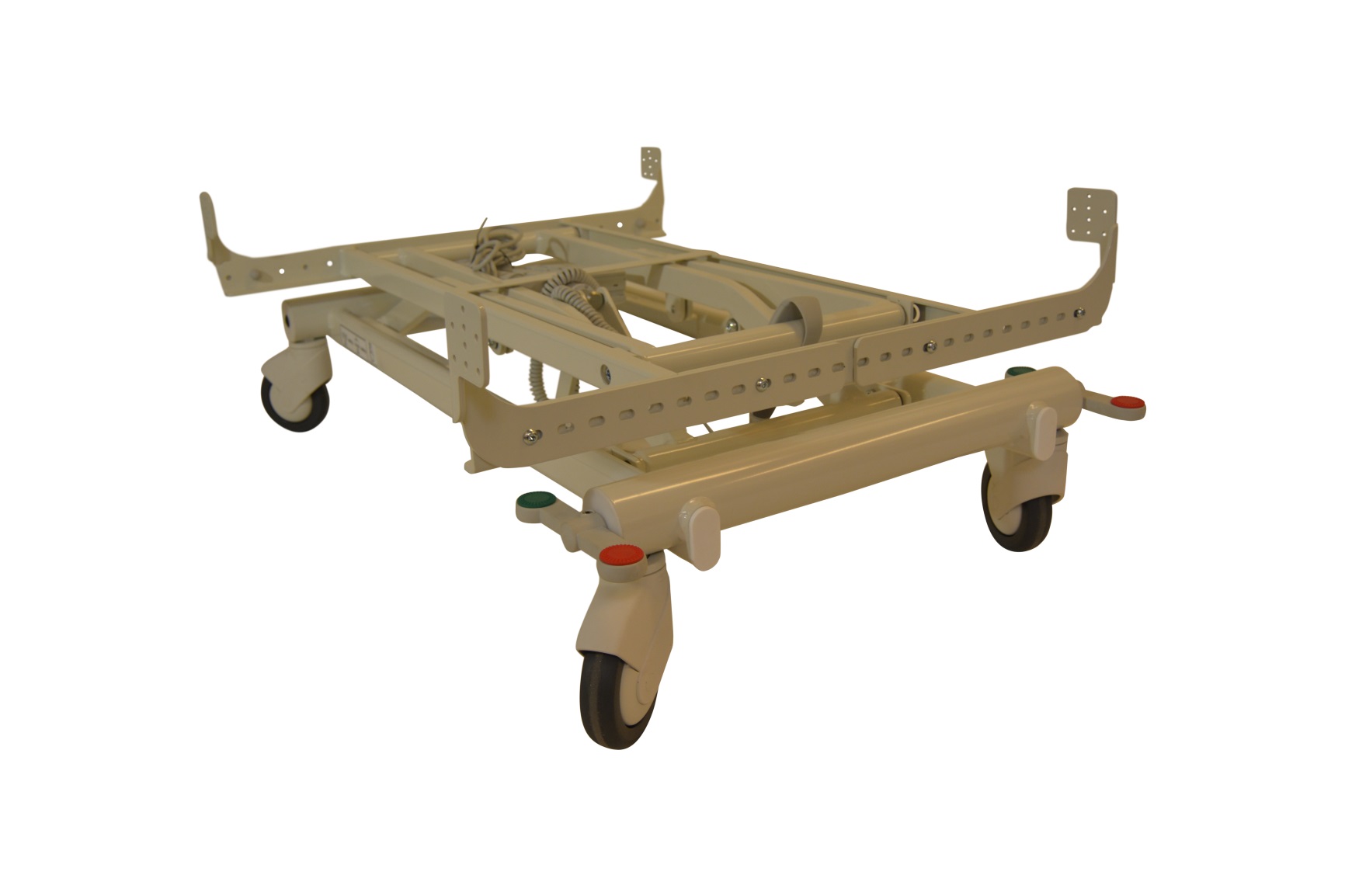

Bed lift



The bed lift is to be used for the consumers own private bed. Therefore, it can be adjusted for all types of elevation beds. The bed lift can be mounted under the bed, and the lifting system is known from the hospitality beds.

Classification
18 12 12 02 - Bed lifts

Documents
Brochure
Accessories catalogue
Spare part catalogue

Video
Play video


The product series contains 1 product.

Product 1 of 1
Bed lift


HMI-no.
79748
Article-no.
SE-11000

Registration date
01-07-2013
Last updated
14-08-2025

Properties
Height adjustment, electrical
Yes
Central braking system
Yes
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.

Measures
Bed-lift length
119.6
cm
Maximum outer length of bed-lift
Width, min
82
cm
Smallest width of bed intended for use with the bed-lift
Width, max
132
cm
Maximum width of bed intended for use with the bed-lift
Height, min
22.7
cm
Smallest height above floor measured at the attachment point for bed
Height, max
76.7
cm
Maximum height above floor measured at the attachment point for bed
Load, max
235
kg
Maximum external load on the product that is permitted in normal use
User weight, max
200
kg
Weight of heaviest main part
40
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Under bed clearance
3
cm
Minimum clearance under bed-lift in the 100 cm middle area measured from the floor with the attachment point of the bed-lift 40 cm above the floor or - if the bed-lift cannot achieve this position - then measured in the lowest position of the bed-lift
Wheel diameter
7.5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
