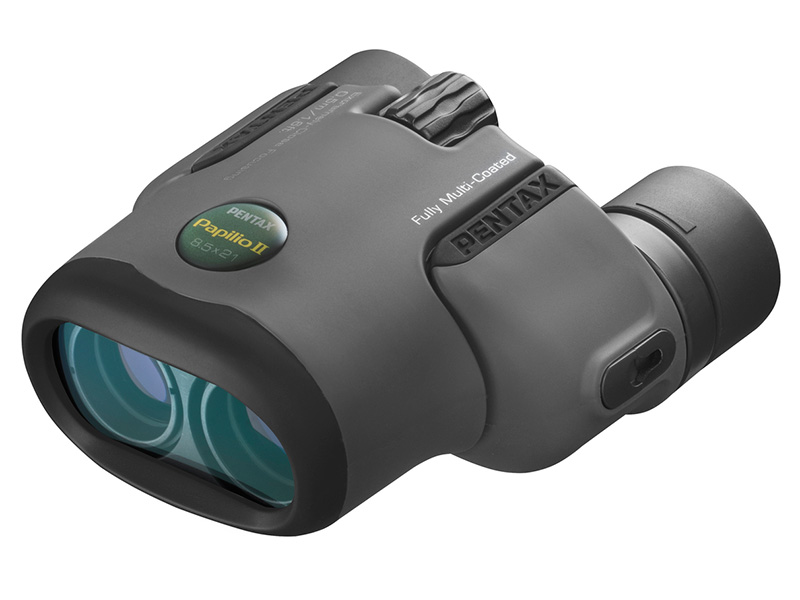

Pentax Papilio Binoculars
The ultimate compact binoculars for the nature enthusiast, Papilios remarkable close focus allows you to examine objects only half a metre away, bringing incredible levels of detail into view.
Classification
22 03 12 01 - Monoculars and binoculars
Documents
BrochureThe product series contains 2 products.
Product 1 of 2
Papilio 6.5x21 Close-focus Compact Binocular
HMI-no.
81213
Article-no.
PAPILO 6,5 x 21
Registration date
01-10-2013
Last updated
21-11-2023
Properties
For one eye
No
Electronic
No
Measures
Magnification
6.5
X
Weight
230
g
Test information
No information about tests according to standardsThe supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Objective Lens 21 mm
Magnification 6.5x
Angle of view 7.5 degrees
Field of View at 1000m 131 m
Exit pupil 3.2 mm
Relative brightness 10.2
Eye Relief 15 mm
Depth 55 mm
Width 110 mm
Height 114 mm
Diopter adjustment range /-4m-1(Click-stop)
Close focus 50 cm
Eye-Distance Adjustment Range 56-74mm
Focus range Approx. 0.5m to infinity
Magnification 6.5x
Angle of view 7.5 degrees
Field of View at 1000m 131 m
Exit pupil 3.2 mm
Relative brightness 10.2
Eye Relief 15 mm
Depth 55 mm
Width 110 mm
Height 114 mm
Diopter adjustment range /-4m-1(Click-stop)
Close focus 50 cm
Eye-Distance Adjustment Range 56-74mm
Focus range Approx. 0.5m to infinity
Product 2 of 2
Papilio 8.5x21 Close-focus Compact Binocular
HMI-no.
81216
Article-no.
PAPILO 8,5 x 21
Registration date
01-10-2013
Last updated
21-11-2023
Properties
For one eye
No
Electronic
No
Measures
Magnification
8.5
X
Weight
230
g
Test information
No information about tests according to standardsThe supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Objective Lens 21 mm
Magnification 8.5 x
Angle of view 6 degrees
Field of View at 1000m 105 m
Exit pupil 2.5 mm
Relative brightness 6.3
Eye Relief 15 mm
Depth 55 mm
Width 110 mm
Height 116 mm
Diopter adjustment range /-4m-1(Click-stop adjuster)
Close focus 50 cm
Eye-Distance Adjustment Range 56mm - 74mm
Magnification 8.5 x
Angle of view 6 degrees
Field of View at 1000m 105 m
Exit pupil 2.5 mm
Relative brightness 6.3
Eye Relief 15 mm
Depth 55 mm
Width 110 mm
Height 116 mm
Diopter adjustment range /-4m-1(Click-stop adjuster)
Close focus 50 cm
Eye-Distance Adjustment Range 56mm - 74mm
