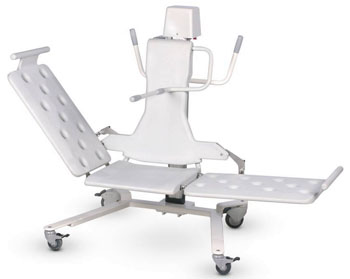

Ikarus Liggelift

Ikarus Liggelift
Mobile recliner lift for person moving and showering
Can be used with a FRT bathtub, so the user is sitting safe in the tub.
The seat is made with Pu-foam.
It is height adjustable.

Classification
12 36 09 01 - Mobile hoists for transferring a person in lying position

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
Ikarus


HMI-no.
83637
Article-no.
FRT2.100.00

Registration date
10-03-2014
Last updated
22-11-2023

Properties
Ingress protection class for water
IPX5
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Width adjustment of base
No
Electrical width adjustment of base
No
Parallel width adjustment of base
No
Foldable
No
Can be disassembled without tools
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
150
kg
Support platform height, min
116
cm
Support platform height, max
176
cm
Support platform length
190
cm
Support platform width
95
cm
Internal width of base, max
90
cm
External width, max
104
cm
Height of base at front
15
cm
Turning diameter
145
cm
Weight of heaviest main part
60
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking info
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
