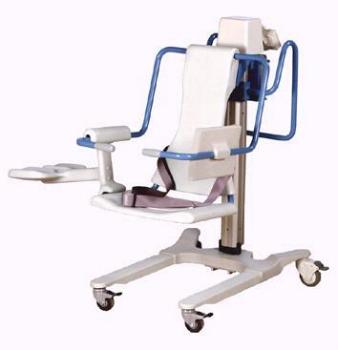

Hektor Chair lift

Hektor Chair lift
Mobile seat lift for person moving and showering.
Can be used with a FRT bathtub, so the user is sitting safe in the tub.
The seat is made with Pu-foam.
It is height adjustable.

Classification
12 36 06 01 - Mobile hoists for transferring a person in sitting position with solid seats

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
Hektor


HMI-no.
83638
Article-no.
FRT2.200.00

Registration date
10-03-2014
Last updated
14-08-2025

Properties
Electrical lifting mechanism
Yes
Width adjustment of base
No
Electrical width adjustment of base
No
Parallel width adjustment of base
No
Foldable
No
Can be disassembled without tools
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
150
kg
Seat height, min
42
cm
Seat height, max
102
cm
Internal width of base, max
54
cm
External width of base in the most narrow position
68
cm
Height of base at front
15
cm
Turning diameter
145
cm
Weight of heaviest main part
50
kg
Ingress protection class for water
5
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
