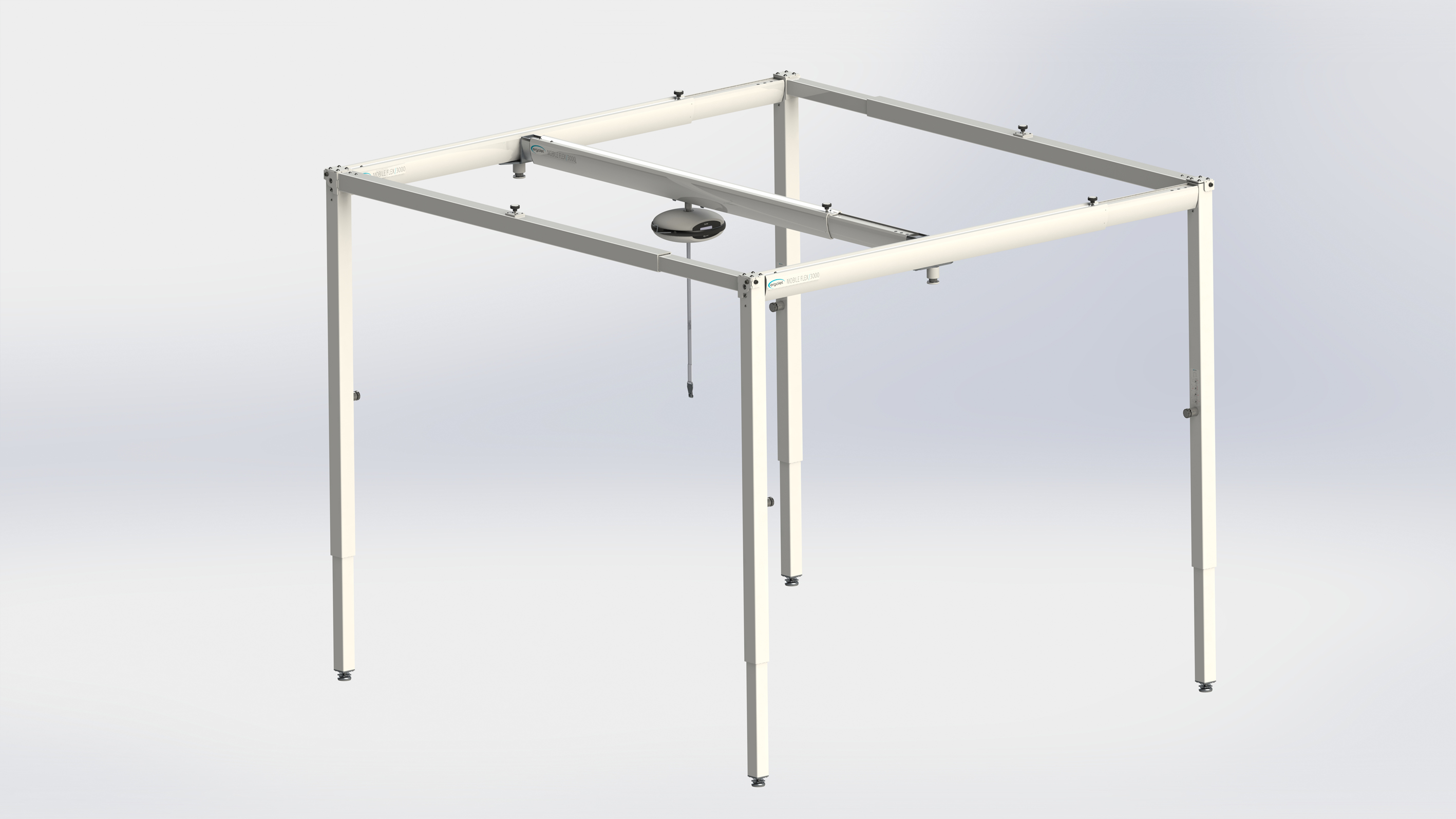

Mobile Flex/4-post sytem/4000x3000 travers/w. Luna ceiling hoist

Mobile Flex/4-post sytem/4000x3000 travers/w. Luna ceiling hoist
The modular system, Mobile Flex, can be configured in various ways meeting individual needs. It is possible to configure a 2-post system with wheels and a 4-post system on feet. The system covers several spans. Depending on the choice of model, extends the range from 2 to 3 meters or 3 to 4 meters.

Classification
12 36 18 03 - Stationary free-standing hoists



The product series contains 1 product.

Product 1 of 1
Mobile Flex/4-post sytem/4000x3000 travers/w. Luna ceiling hoist


HMI-no.
83813
Article-no.
016-01222

Registration date
27-03-2014
Last updated
21-11-2023

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
No
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes

Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.04
m/s
Max length of rail
416
cm
Min. length of rail
216
cm
Max height to top of rail
254
cm
Min. height to top of rail
189
cm
Min. distance from top of rail to central suspension point
55.2
cm
Weight of lifting machinery
6.7
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
