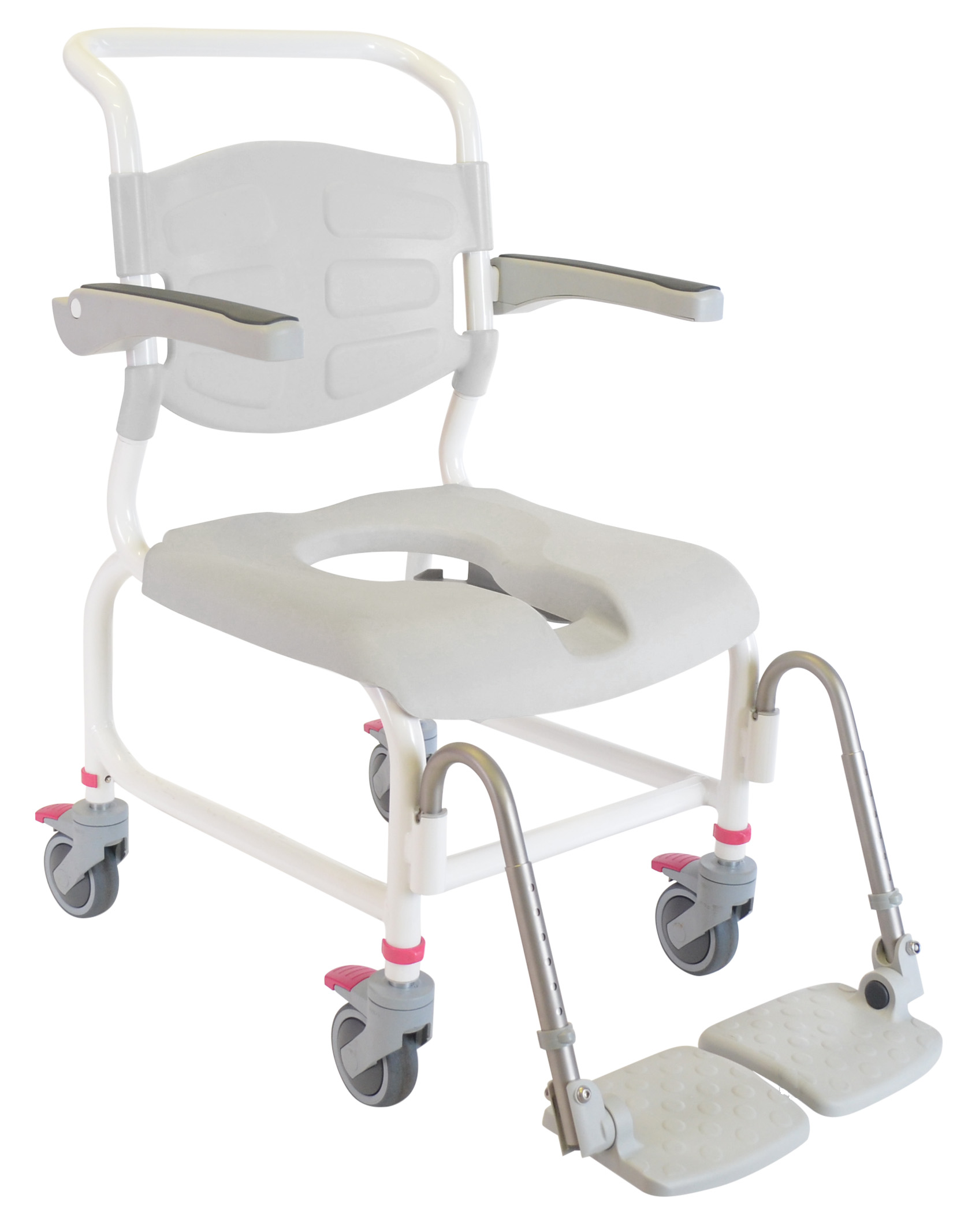

Nielsen Line Shower/commodechair standard



Light Weight Shower/commodechair in aluminium.
With a simple new design, and a seat which gives great comfort.

Classification
09 12 03 08 - Commode shower chairs with castors, non-electrical height adjustable

Documents
Brochure
User manual
Spare part catalogue


The product series contains 2 products.

» Summarize specifications

Product 1 of 2
Nielsen Line shower/commodechair standard with netweave backrest


HMI-no.
84436
Article-no.
313030

Registration date
27-05-2014
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
150
kg
Total width
57
cm
Ground clearance
52.5
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
47.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
100
mm
Number of wheels with brake
4
Seat height, min
44.5
cm
Seat height, max
56.5
cm
Height of push handles/push bar, min.
93
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
105
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 84436

Other specifications
With a backrest in netweave material, adjustable for best possible comfort.


Product 2 of 2
Nielsen Line shower/commodechair standard with plastic backrest


HMI-no.
84437
Article-no.
313031

Registration date
27-05-2014
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
150
kg
Total width
57
cm
Ground clearance
52.5
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
47.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
100
mm
Number of wheels with brake
4
Seat height, min
44.5
cm
Seat height, max
56.5
cm
Height of push handles/push bar, min.
93
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
105
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 84437

Other specifications
With a comfortable backrest in plastic, for easy cleaning.
